Aten KN8164V [215/307] Maintenance

197

Chapter 10

Maintenance

Overview

The Maintenance function is used to upgrade firmware; backup and restore

configuration and account information; ping network devices; and restore

default values.

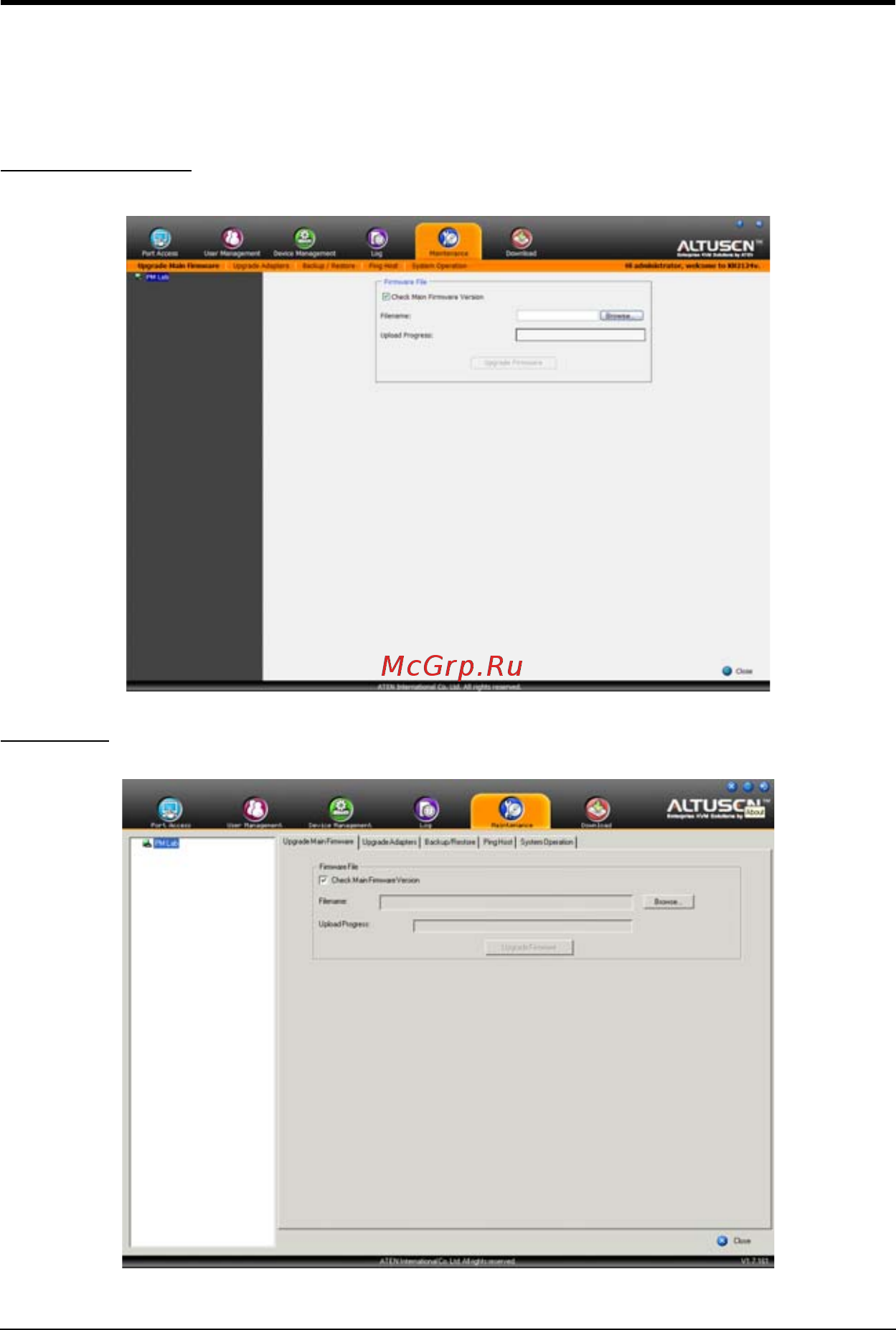

Browser GUI
