Aten KN8164V [291/307] Additional video resolution procedures

Appendix

273

Additional Video Resolution Procedures

If you are running Windows, and wish to use new refresh rates, do the

following:

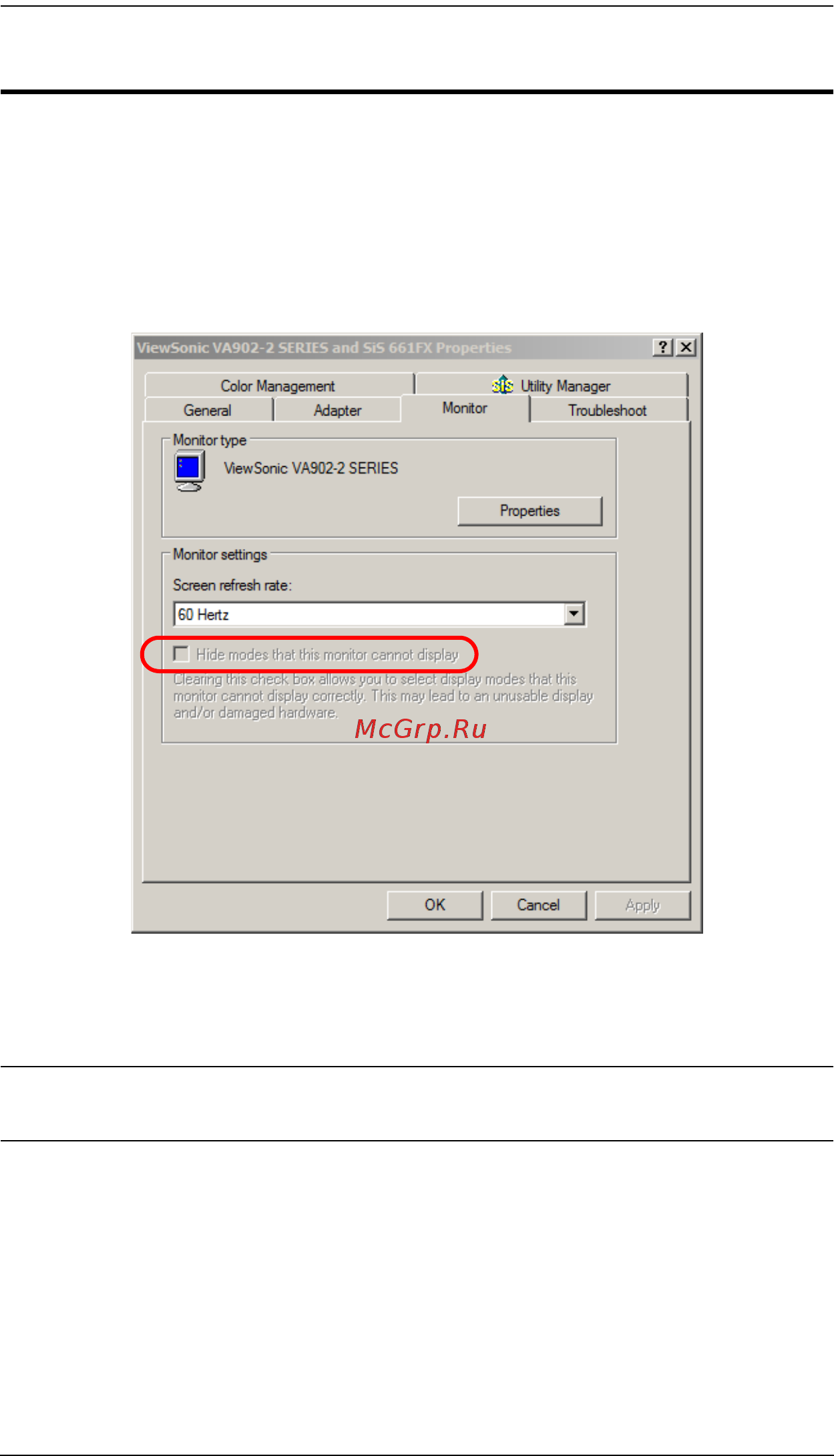

1. Open Control Panel

→ Display → Settings → Advanced → Monitor.

2. In the dialog box that comes up, make sure that the Hide modes that this

monitor cannot display checkbox is unchecked.

3. Click the arrow at the right of the Screen refresh rate listbox, and select

the refresh rate you want from the list that appears.

Note: Make sure that your monitor supports the refresh rate you choose – if

not, you may seriously damage your monitor.
