KVM over IP Switch User Manual

164

ANMS

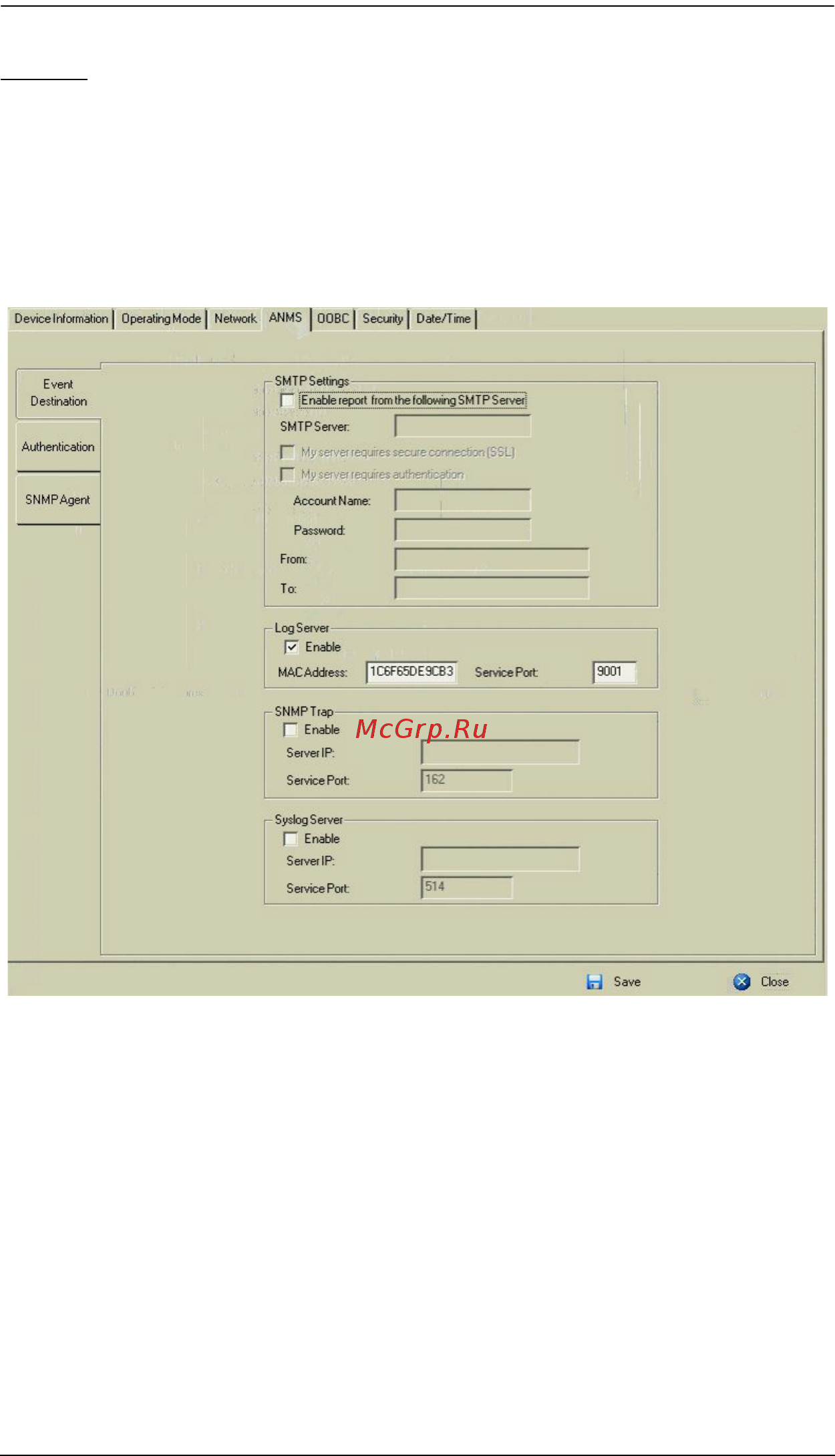

The ANMS (Advanced Network Management Settings) page is used to set up

organized as a notebook with two tabs – each with a series of related panels, as

described, below:

Event Destination

 SMTP Settings

To have the KVM over IP switch email reports from the SMTP server to

you, do the following:

1. Enable the Enable report from the following SMTP server, and key in

either the IPv4 address, IPv6 address, or domain name of the SMTP

server.

2. If your server requires a secure SSL connection, put a check in the My

server requires secure connection (SSL) checkbox.
