Chapter 8. Device Management

171

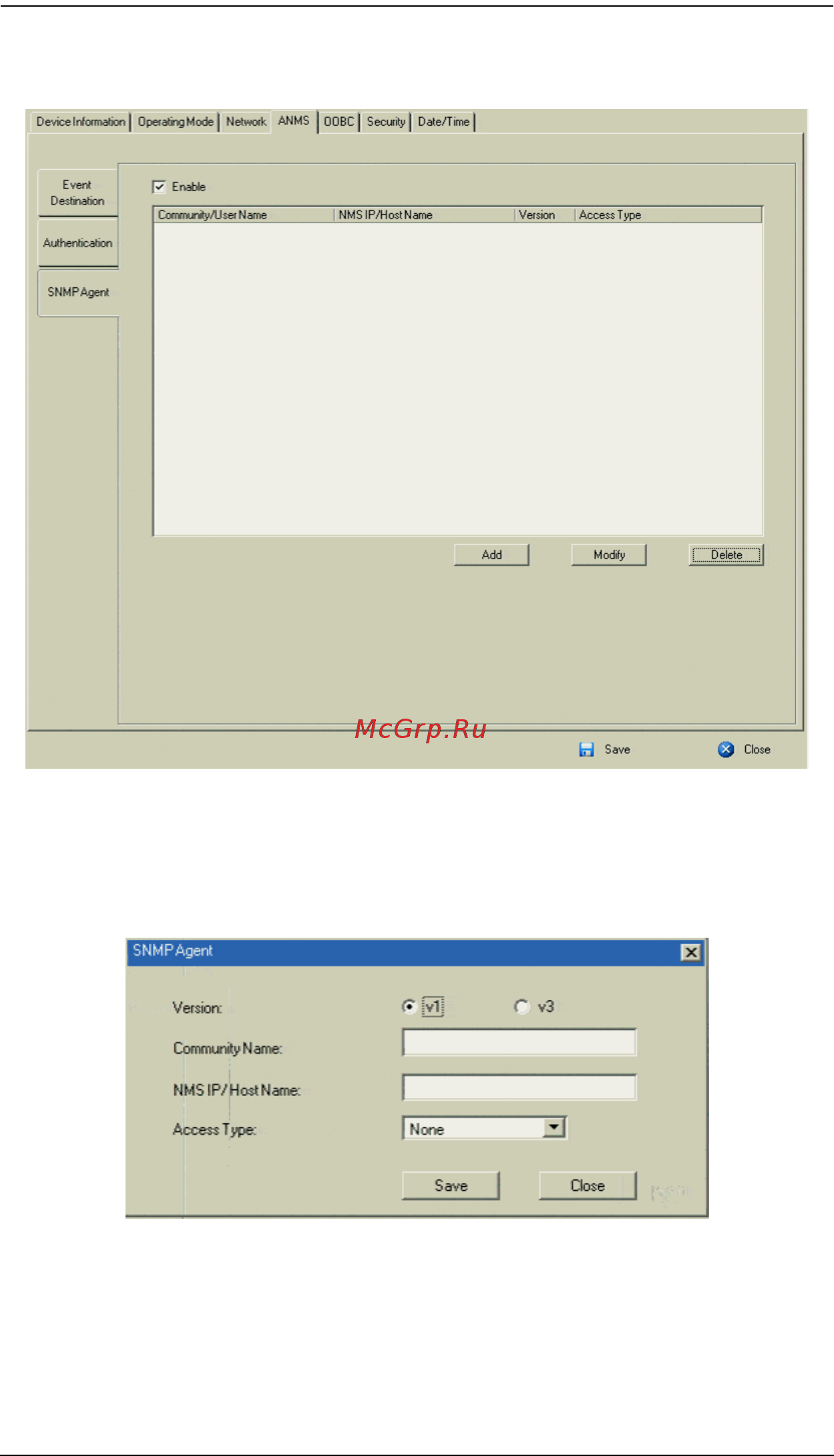

SNMP Agent

To set SNMP Agent, do the following:

1. Check Enable.

2. Click Add. A window appears:

3. Select the Version.

4. Key in the Community Name.

5. Key in NMS IP/Host Name.

6. Select the Access Type and click Save.
