Chapter 3. Super Administrator Setup

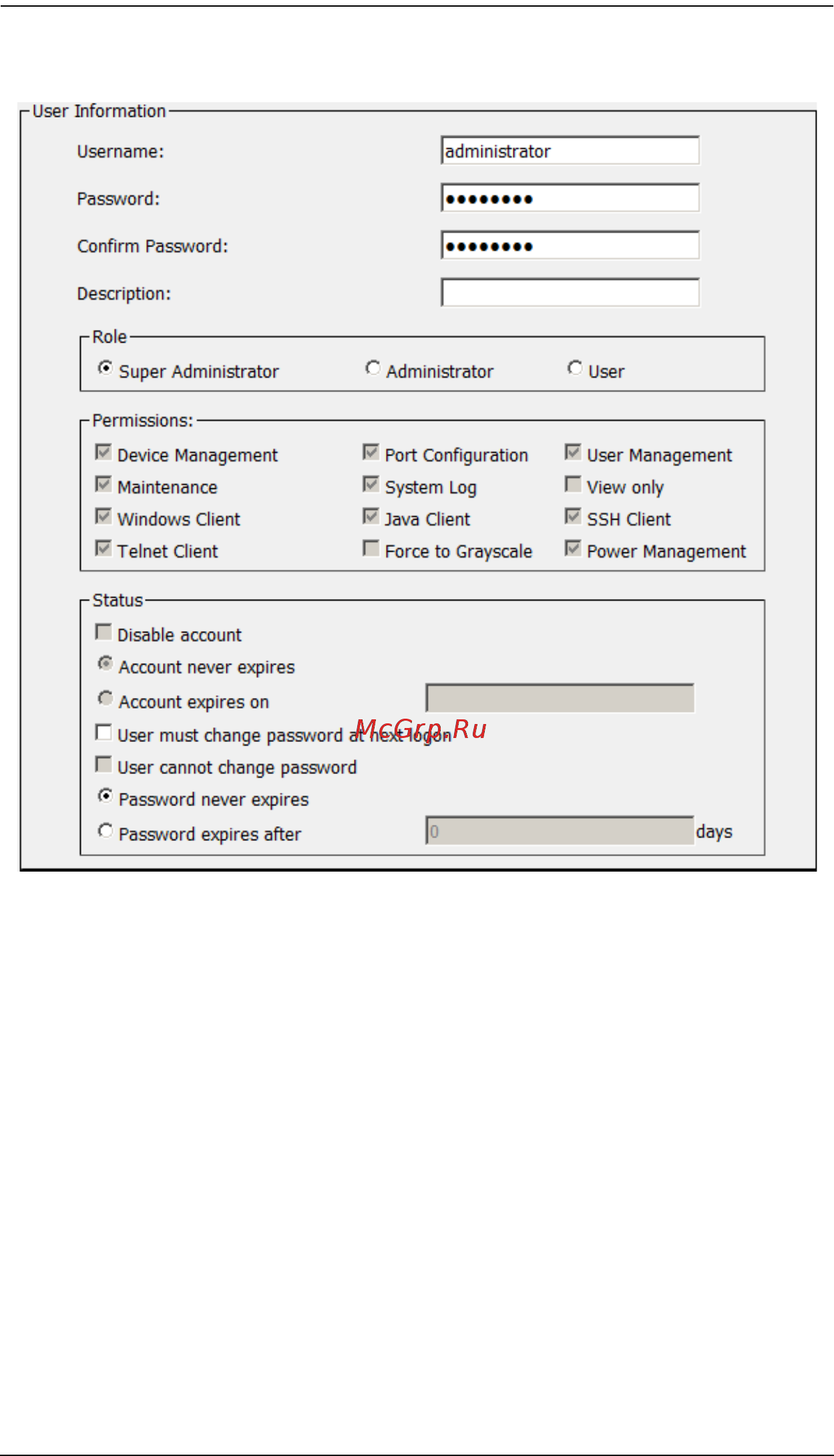

The User Information page appears:

3. Change the Username and Password to something unique.

4. Enter the password again in the Confirm Password field to confirm it is

correct.

5. Click Save.

6. When the dialog box informing you that the change completed

successfully appears, Click OK.

7. Click on another item on the Local Console Main Page, to close this page.
