KVM over IP Switch User Manual

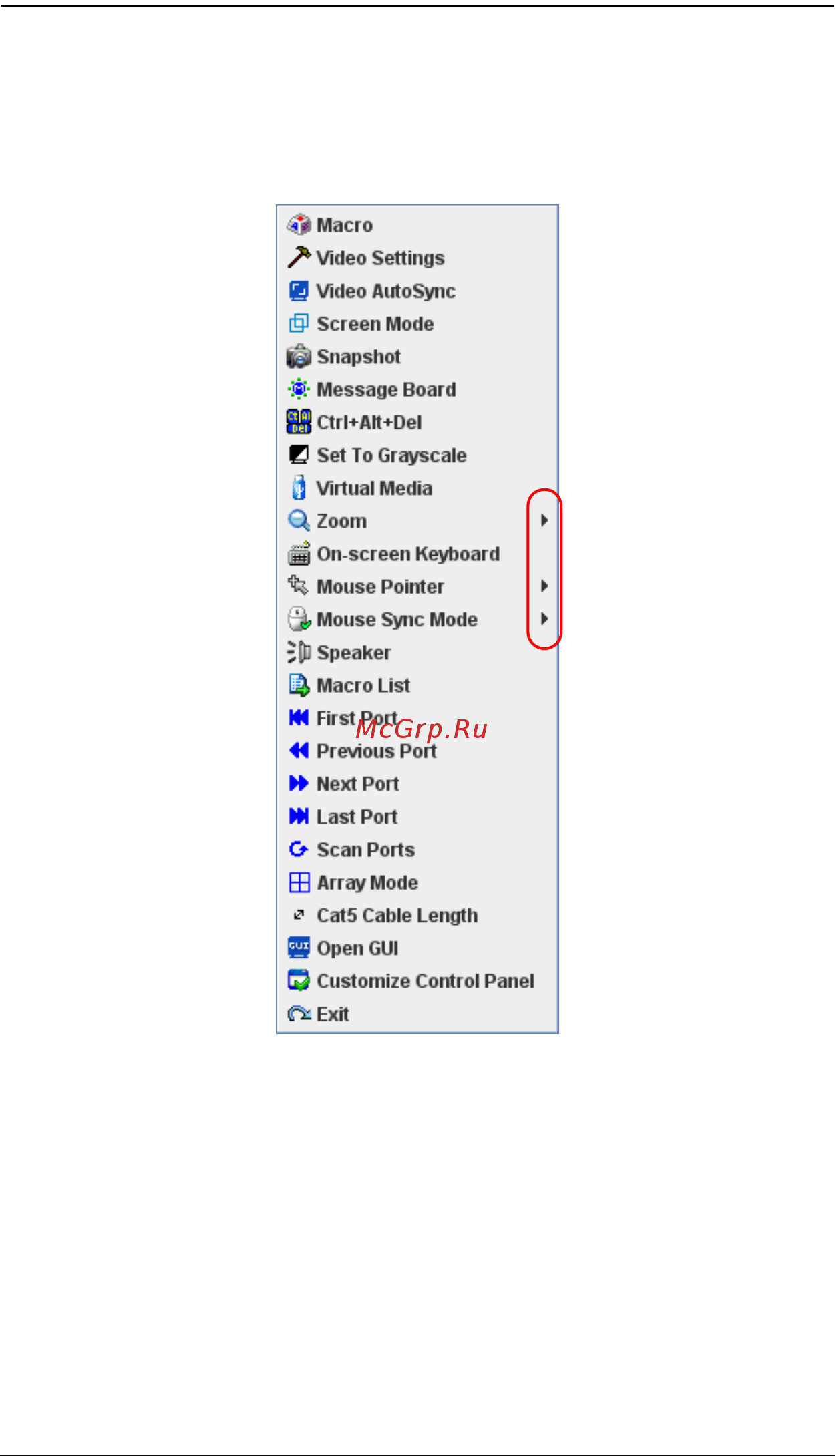

 Right clicking in the text row area brings up a menu-style version of the

toolbar. In addition, it allows you to select options for the Zoom, Mouse

Pointer, and Mouse Sync Mode. These functions are discussed in the

sections that follow.

 To move the Control Panel to a different location on the screen, place the

mouse pointer over the text row area, then click and drag.
