KVM over IP Switch User Manual

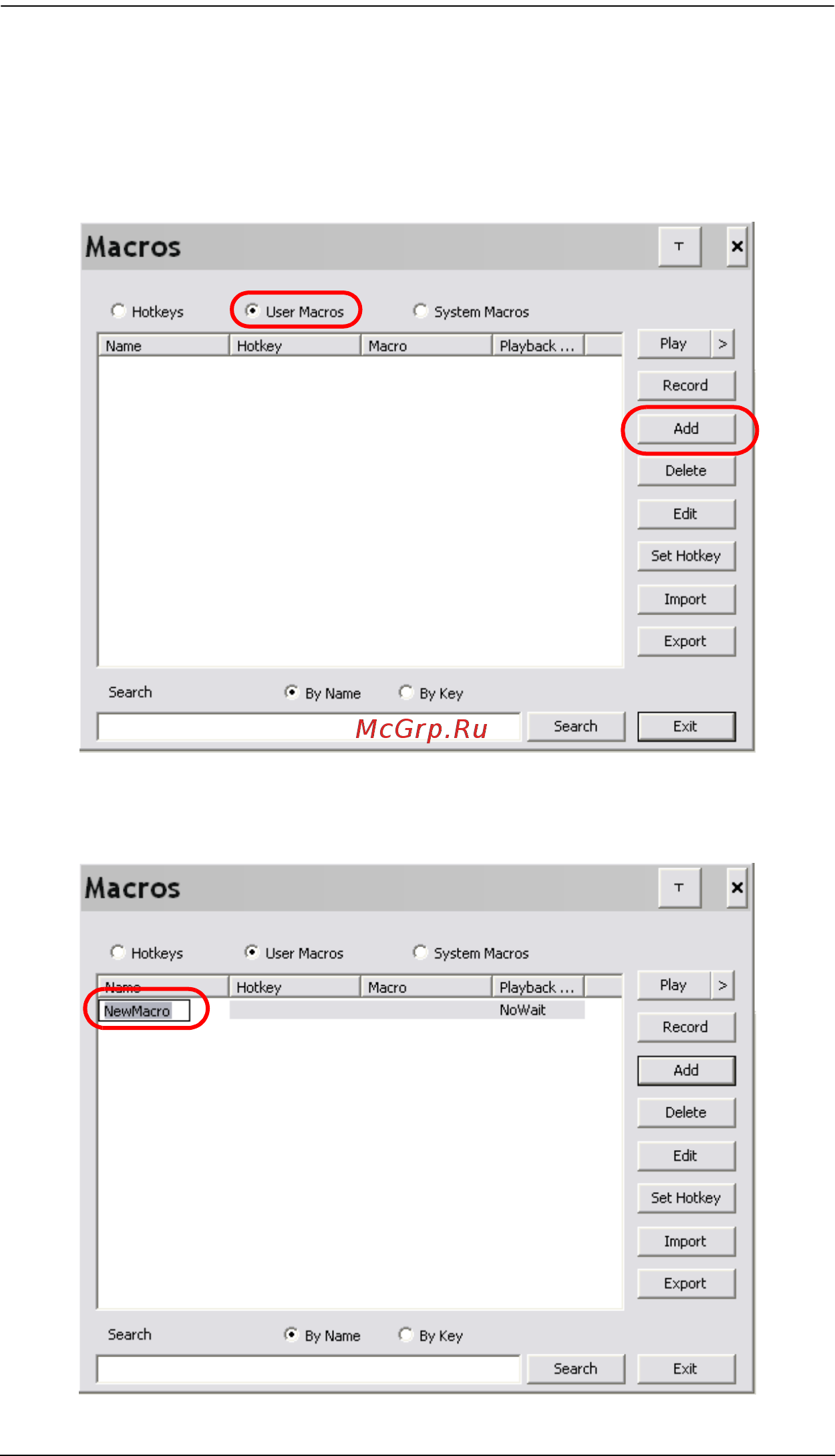

User Macros

User Macros are created to perform specific actions on the remote server. To

create the macro, do the following:

1. Select User Macros, then click Add.

2. In the dialog box that comes up, replace the “New Macro” text with a

name of your choice for the macro:
