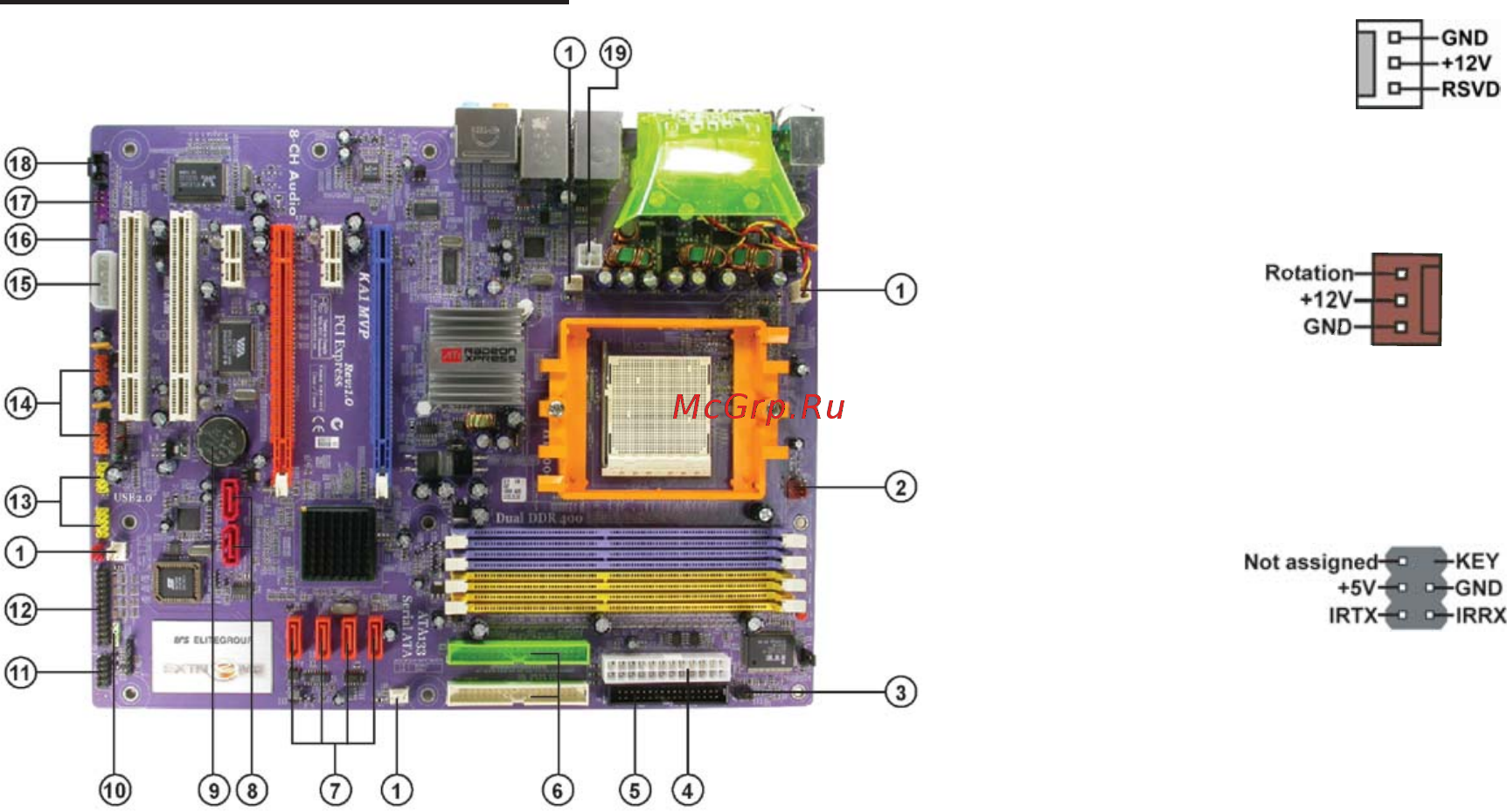

1.6 Headers and Connectors

1. NB_FAN, SYS_FAN1~3 (Fan Connectors, 3 pin)

These connectors allow you to link with the cooling fans to lower the

system temperature and the Northbridge chipset temperature.

The motherboard supports an infrared (IR1) data port. Infrared ports

allow the wireless exchange of information between your computer

and similarly equipped devices such as printers, laptops, Personal

Digital Assistants (PDAs), and other computers.

3. IR1 (Infrared Header, 6-1 pin)

2. CPU_FAN (CPU Fan Connector, 3 pin)

Please note that a proper installation of the CPU cooler is essential to

prevent the CPU from running under abnormal conditions or being dam-

aged by overheating. The CPU fan connector supports maximum current

up to 600 mA.
