ECS Elitegroup MB694A [22/81] I o ports side view

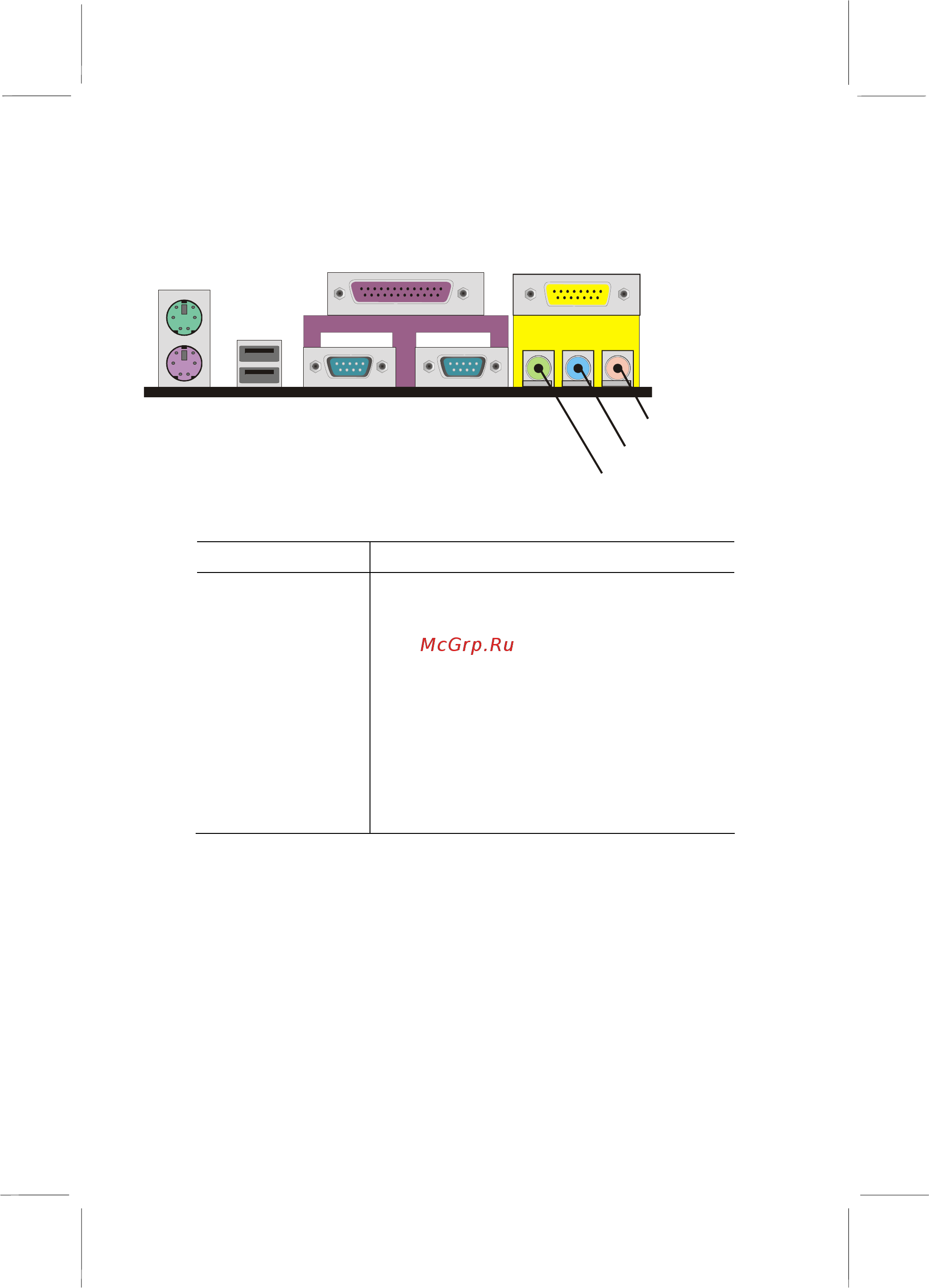

I/O Ports Side View

PS/2

mouse

PS/2

keyboard

USB

ports

Parallel port (LPT1)

Serial port

COM 1

Serial port

COM 2

Line-in

Game port

Microphone

Line-out

Key to I/O Ports

Component Description

PS/2 mouse PS/2 port for pointing device (upper port)

PS/2 keyboard PS/2 port for keyboard (lower port)

USB ports Two stacked Universal Serial Bus ports

LPT1 External parallel port

COM1 External serial port COM 1

COM2 External serial port COM 2

Game port External MIDI/game port

Audio ports Audio jacks for (from left to right) line out, line

in, microphone
