Using the Expansion Slots
This mainboard has two 32-bit PCI expansion slots, one 4xAGP
slot, an AMR slot, and an optional TV-out/LCD panel link riser
slot.
PCI Slots: The PCI slots can be used to install add-in cards that
have the 32-bit PCI (Peripheral Components Interconnect) inter-
face.
AGP Slot: The 4xAGP can be used to install a graphics adapter
that supports the 4xAGP specification and has the 4xAGP edge
connector.
AMR Slot: The Audio Modem Riser (AMR) slot can be used to
insert an AMR card.
3V
+
ATX 1
A
GP1
FDD1
DIMM1
A
MR1
WOM1WOL1
CD1
PWRFAN1
CPUFAN1
PAN EL1
DIMM2
DIMM3
PCI1
PCI3
PCI4
PCI5
PCI2
CD2
JP500
JP7
JP6
JP2
JP3
JP501
SIR1
USB2
IDE1
IDE2
JP1
JP5
JP4
1
1
1
1
1
1
1
1
1
1

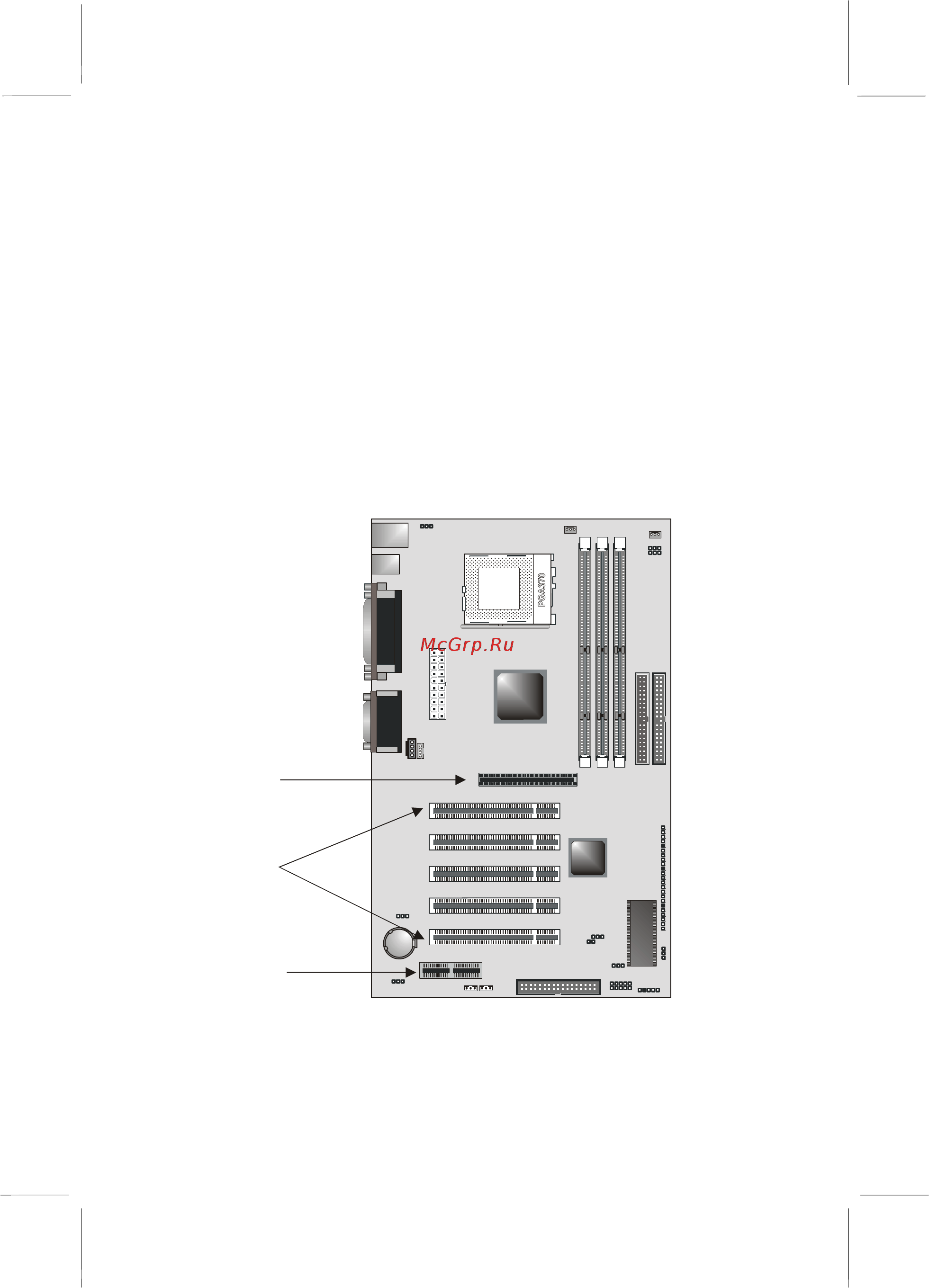

PCI slots
AMR slot
AGP slot
1. Before installing an expansion card, check the documenta-
tion for the card carefully. If the card is not Plug and Play,
you may have to manually configure the card before installa-
tion.
