Panel1 Connector

The mainboard PANEL connector has a standard set of switch

and indicator connectors that are commonly found on ATX sys-

tem cases. Use the illustration below to make the correct

connections to the case switches and indicators.

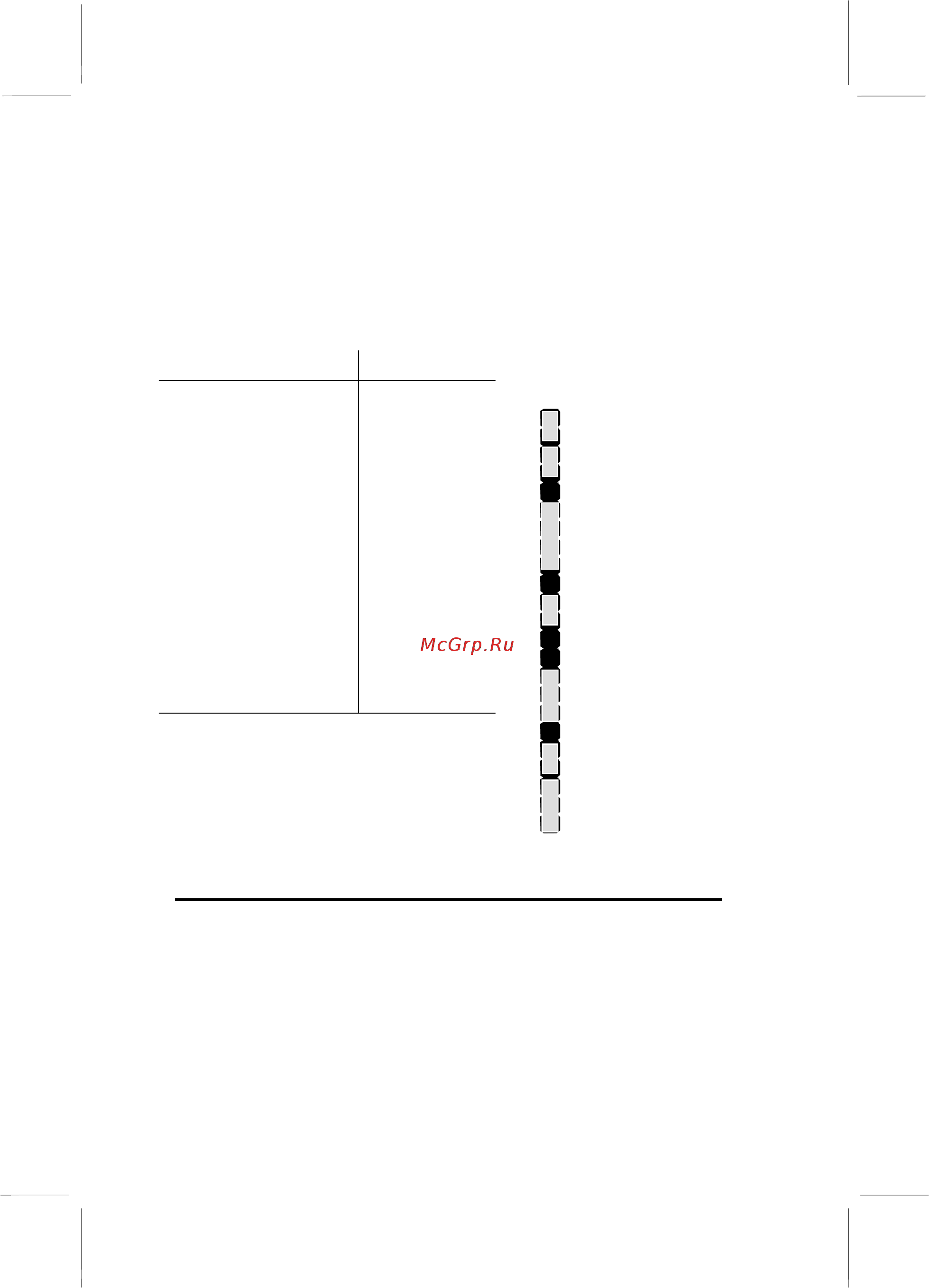

Panel connectors for switches and indicators

Function Pins

Power switch 22, 23

Hard disk LED Indicator +20, -21

Empty pin 19

Speaker +15, -16, 17, 18

Empty pin 14

Reset switch 12, -13

Empty pins 10, 11

Green LED indicator +7, +8, -9

Empty pin 6

Sleep switch 4, -5

Power LED indicator +1, +2, -3

PANEL1

Speaker 15-16-17-18

Power LED 1-2-3

Reset Switch 12-13

Green LED 7-8-9

Power Switch 22-23

HDD LED 20-21

Sleep Switch 4-5

PANEL1

Note: The plus sign (+) indicates a pin which must be connected

to a positive voltage.
