ECS Elitegroup MB694A [25/81] Jp3 bios flash protection jumper
![ECS Elitegroup MB694A [25/81] Jp3 bios flash protection jumper](/views2/1212445/page25/bg19.png)
19

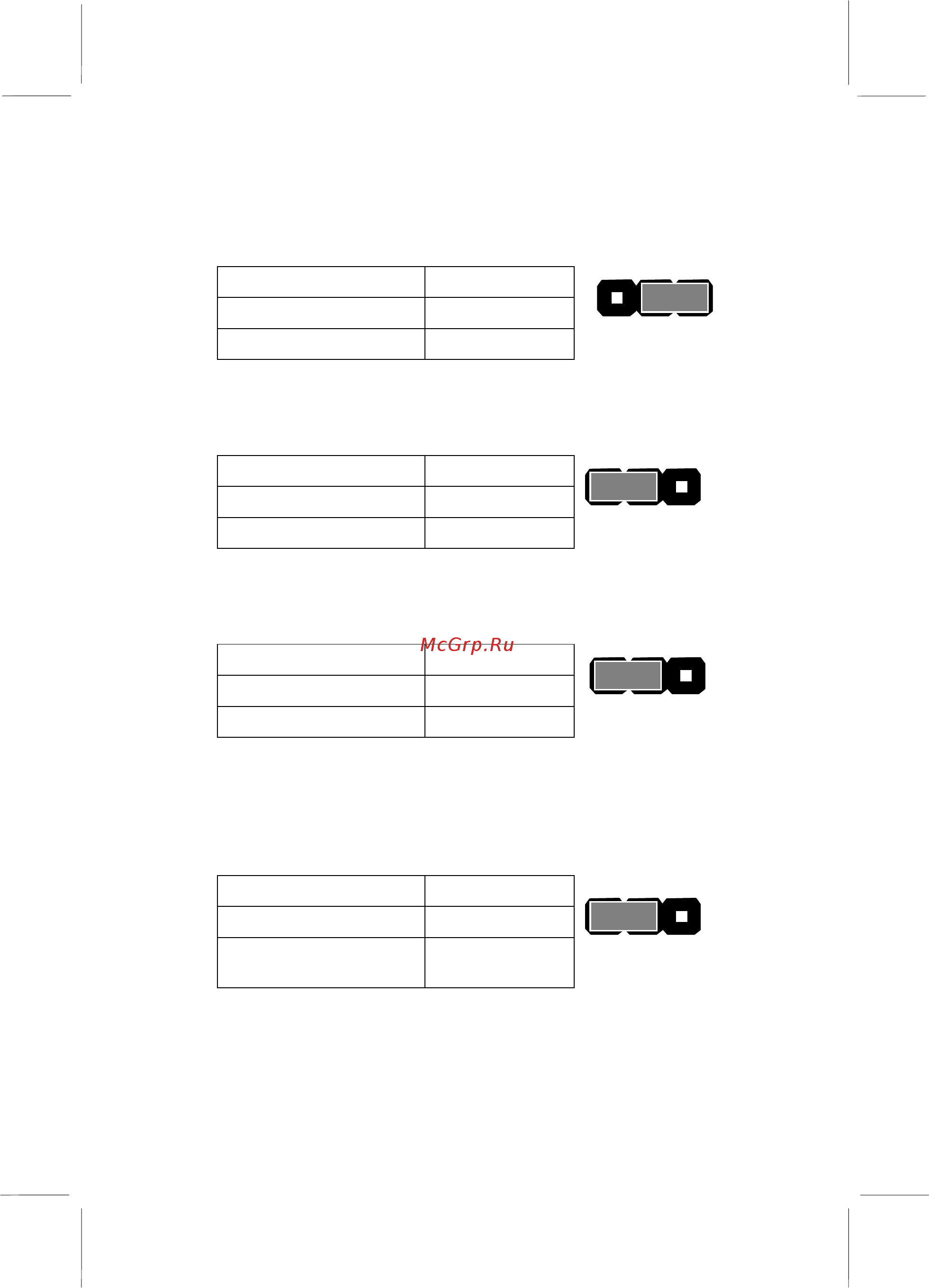

JP3: BIOS flash protection jumper
Use this jumper to disable and enable BIOS flashing. Disable
the jumper if you are going to flash the system BIOS.
Function Jumper Setting
Disable Short pins 1-2
Enable Short pins 2-3
JP3
1 2 3
JP4: Onboard CODEC/AMR slot select jumper
Use this jumper to enable either the onboard codec or the AMR
slot (AMR1).
Function Jumper Setting
Onboard codec Short pins 1-2
AMR slot Short pins 2-3
JP4
1 2 3
JP5: AMR Master/Slave select jumper
Use this jumper to define the AMR codec mode to avoid conflict
with the onboard AC 97 codec.
Function Jumper Setting
Slave AMR Short pins 1-2
Master AMR Short pins 2-3
JP5
1 2 3
JP6: CPU frequency select jumper
This jumper enables you to force the CPU to clock at a higher
frequency than it is rated. Short pins 2 and 3 to force the CPU to
run at a 100 MHz FSB instead of a 66 MHz FSB. We recom-
mend that you leave the jumper on the normal operation setting.
Function Jumper Setting
Normal operation Short pins 1-2
Force a 66 MHz FSB to
run at 100 MHz FSB
Short pins 2-3
JP6
1 2 3
