JP1: Clear CMOS jumper

Use this jumper to clear the contents of the CMOS memory. You

may need to clear the CMOS memory if the settings in the BIOS

Setup Utility are incorrect and are preventing your mainboard

from operating. To clear the CMOS memory, disconnect all the

power cables from the mainboard and then move the jumper cap

into the Clear CMOS memory setting for a few seconds. CMOS

is cleared.

Return the jumper cap to the Normal operation setting. Recon-

nect the power cables and start the system. When the POST

starts, press the delete key to start the BIOS Setup Utility and

reload BIOS optimal settings. Refer to Chapter 3 for information

on BIOS.

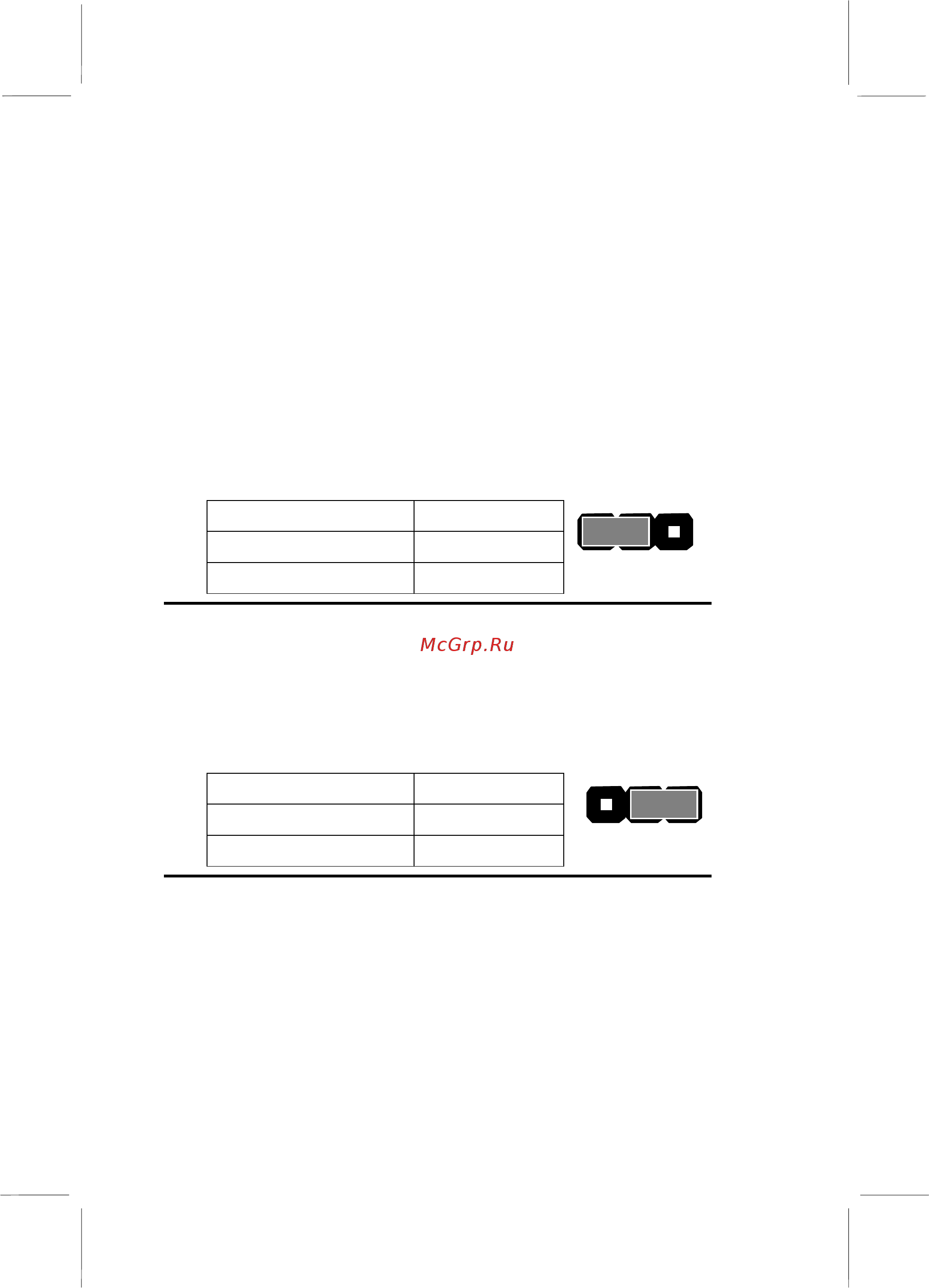

Function Jumper Setting

Normal operation Short pins 1-2

Clear CMOS Short pins 2-3

JP1

1 2 3

Note: Disconnect all AC power to the computer before clearing

the CMOS.

JP2: Keyboard power on/off jumper

Use this jumper to enable the keyboard to power on the com-

puter. You must also enable this function in the BIOS Setup

Utility. Refer to Chapter 3.

Function Jumper Setting

Disable Short pins 1-2

Enable Short pins 2-3

JP2

1 2 3

Note: When enabling the keyboard power on/off function, ensure

that the 5 VSB power supply is more than 720 mA.
