ECS Elitegroup MB694A [17/81] Note the plus sign indicates a pin which must be connected to a positive voltage

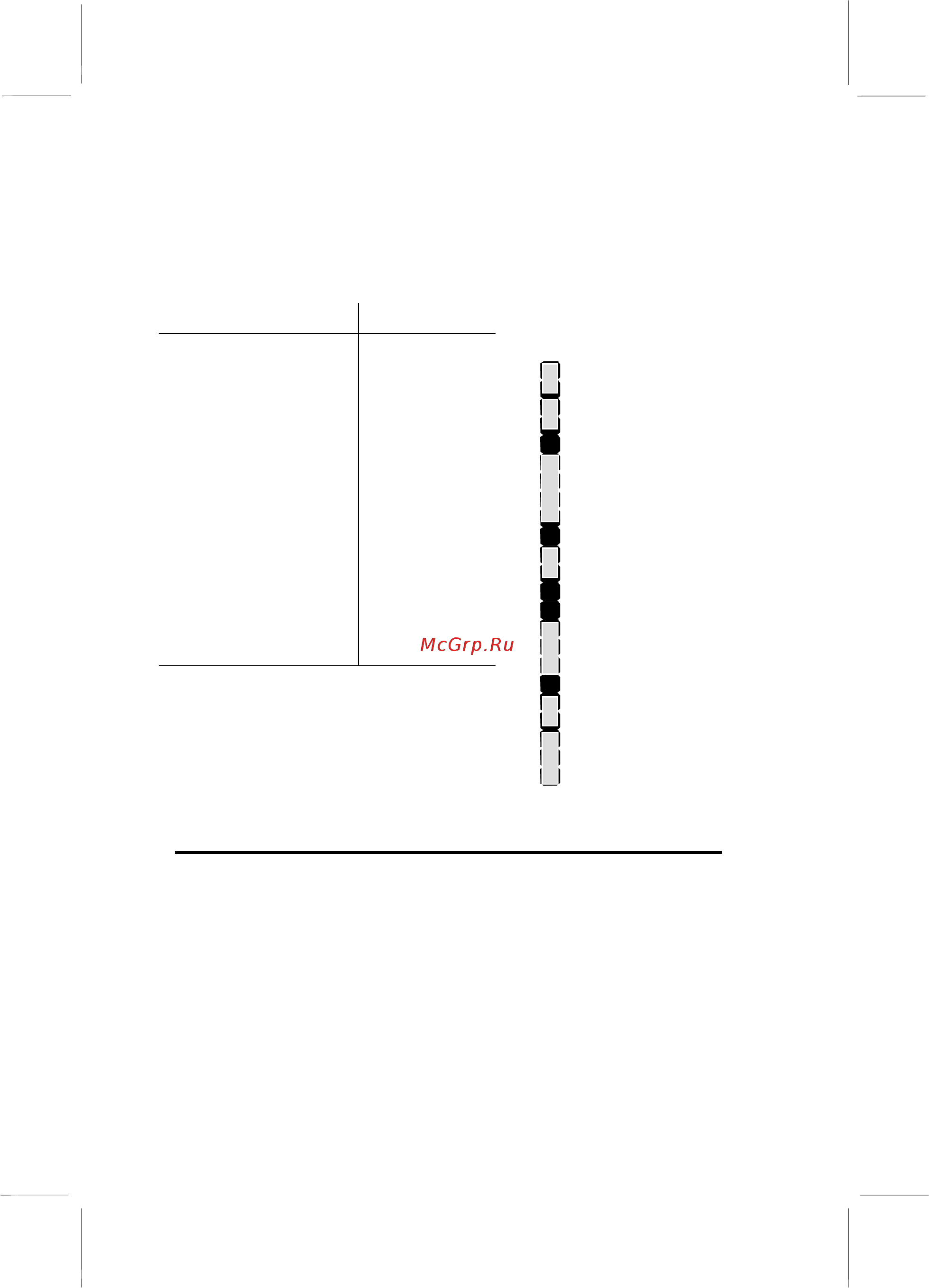

PANEL1: Panel connectors for switches and indicators

Use the panel connector to implement the switches and indica-

tors on your system case.

Panel connectors for switches and indicators

Function Pins

Power switch 22, 23

Hard disk LED Indicator +20, -21

Empty pin 19

Speaker +15, -16, 17, 18

Empty pin 14

Reset switch 12, -13

Empty pins 10, 11

Green LED indicator +7, +8, -9

Empty pin 6

Sleep switch 4, -5

Power LED indicator +1, +2, -3

PANEL1

Speaker 15-16-17-18

Power LED 1-2-3

Reset Switch 12-13

Green LED 7-8-9

Power Switch 22-23

HDD LED 20-21

Sleep Switch 4-5

PANEL1

Note: The plus sign (+) indicates a pin which must be connected

to a positive voltage.
