9

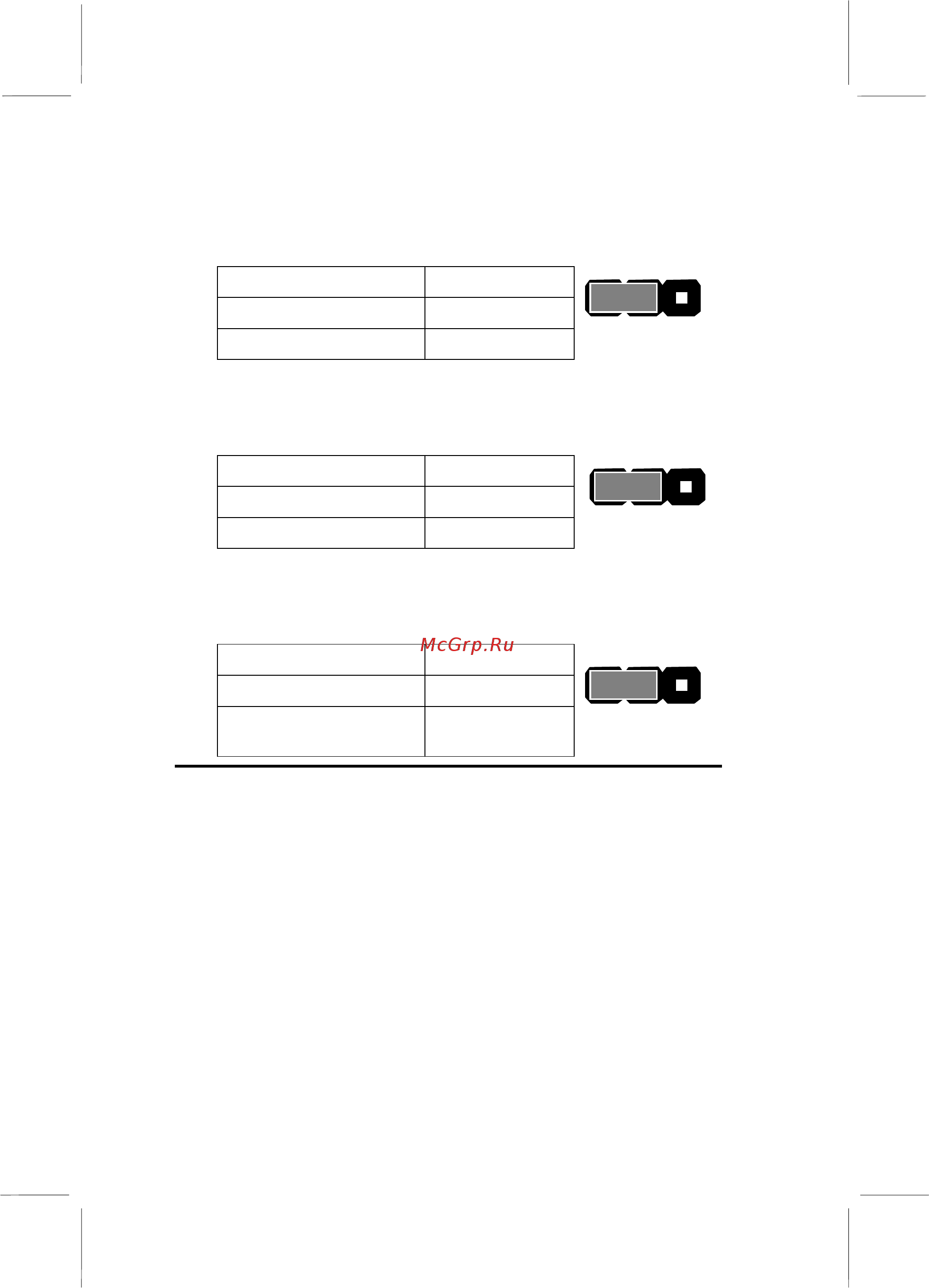

JP4: Onboard codec/AMR slot select jumper
Use this jumper to enable either the onboard codec or the AMR
slot (AMR1).
Function Jumper Setting
Onboard codec Short pins 1-2
AMR slot Short pins 2-3
JP4
1 2 3
JP5: AMR Master/Slave select jumper
Use this jumper to define the AMR codec mode to avoid conflict
with the onboard AC 97 codec.
Function Jumper Setting
Slave AMR Short pins 1-2
Master AMR Short pins 2-3
JP5
1 2 3
JP6: CPU frequency select jumper
Use this jumper to force a CPU that has a 66 MHz frontside bus
(FSB) to run at a 100 MHz FSB speed.
Function Jumper Setting
Normal operation Short pins 1-2
Force a 66 MHz FSB to
run at 100 MHz FSB
Short pins 2-3
JP6
1 2 3
Note: The CPU speed is determined by the CPU Host/PCI Clock
speed multiplied by the CPU Clock Ratio. Refer to the Frequency
Control Option in Chapter 3 for more information.
Forcing the CPU to run at a higher clock speed then it was rated
for is called overclocking and is not recommended.
