MOUNTING OF THE COOKER HOOD
EA 642
Mounting under a wall unit

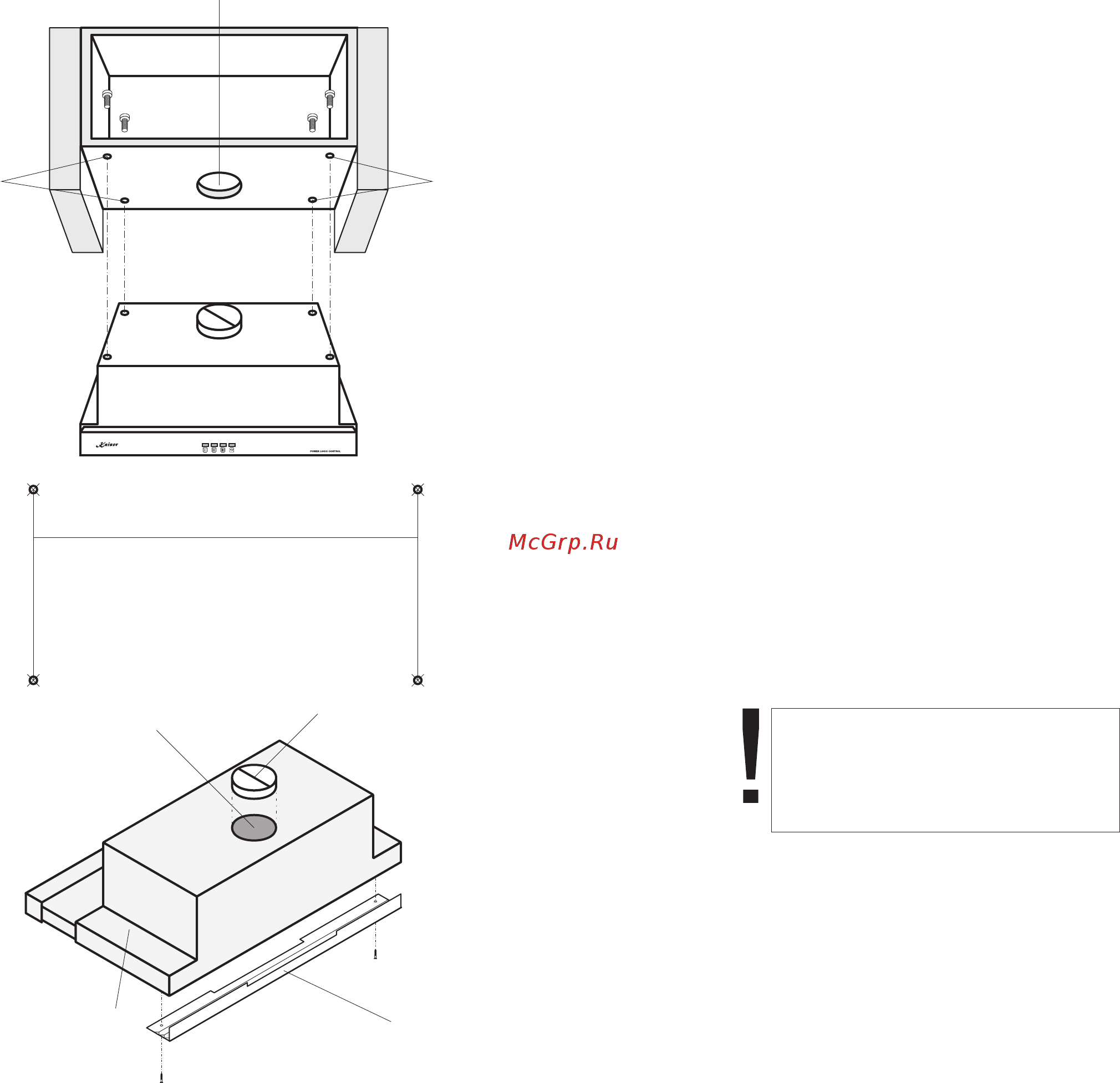

• Drill in the wall unit the four holes 6
in predefined places using a drill of
Ø 4 mm.
• Mount the V-flap 4 on the exhaust
outlet of the cooker hood 5.
• Fasten the cooker hood with a four
screws, operate from the inside of
the wall unit.
• For an air extractor mode of the
cooker hood make an opening 7 in
the bottom of the wall unit in
advance, in accordance with the
drawing.
• To close possible space between
the cooker hood and the wall, use a
plastic spacing bar 8.
• If the cooker hood will be operate in
odour absorber mode it is necessary
to install charcoal filter.
EN
Attention! Before the beginning of
the operation it is obligatory to
remove an adapter inside the
cooker hood.
