6
EN
265
665 / 490
2
7
1
1
3
3
5
6
4
INSTALLATION
INSTRUCTIONS
Two persons are required for proper
installation. A qualified installer should
be commissioned to make the
mounting.
MOUNTING OF EA 543/ EA 743
COOKER HOOD
The cooker hood is mounted in the wall
unit.

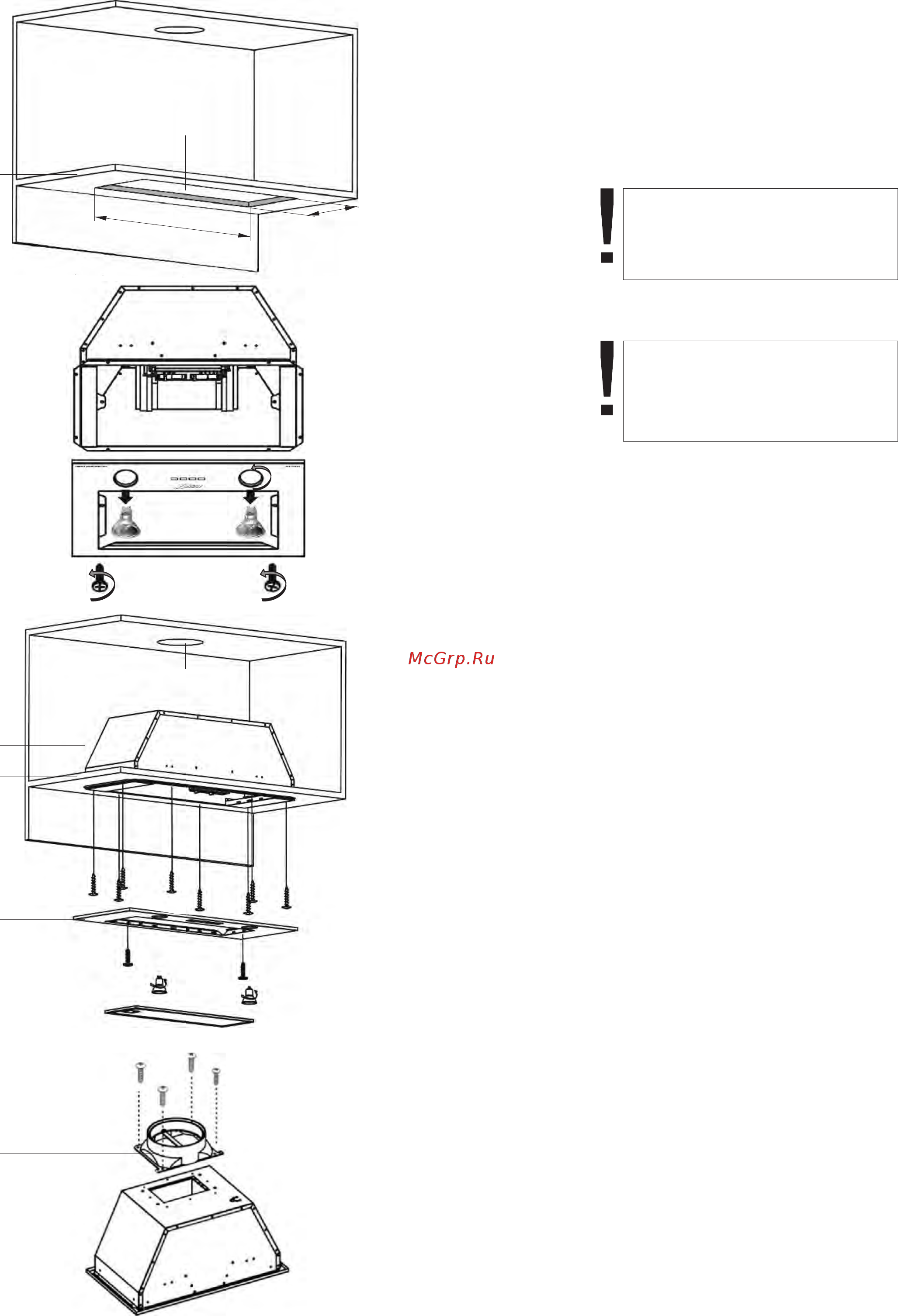

Mounting under a wall unit
• Saw out in the wall unit 1 an
aperture 2 665/ 490 × 265 mm
(depending on model).
• Detach the control panel 3 by
unscrewing the two screws (M4 × 10
mm).
• Mount the cooker hood 4 on the
cabinet 1 by 8 screws (ST4 × 18
mm) and mount the control panel 3
on the hood body by two screws(M4
× 10 mm)
• Mount the V-flap 5 on the exhaust
outlet of the cooker hood 6.
• For an air extractor mode of the
cooker hood make an opening 7 in
the deck of cabinet according with
the drawing.
• If the cooker hood will be operate in
o d o u r a b s o r b e r m o d e i t i s
necessary to install charcoal filter
(not supplied).
At te nt io n! In st al l a t i o n a nd
electrical connection must be made
by a qualified expert only.
Attention! The manufacturer
declines all responsibility for
damage or injury if all instructions
and normal safety precautions are
not respected.
