MOUNTING OF THE COOKER HOOD
EA 641
There are two ways of installation of the
cooker hood: on the wall and under a
wall unit.
Mounting on the wall
• Trace a vertical line on the wall to
indicate the centre of the cooker
plate.
• Place the hood body 1 on the wall to
get min 650 mm from the cooker
plate. Level it horizontally. Use the
bottom of the rear side of the hood
as ruler to trace the line.
• Measure a distance between the
hood’s bottom and the holes. Trace
a horizontal line on the wall on the
same distance above the bottom
line. Mark the mounting holes on the
wall: 496 mm between the holes or
248 mm between each hole and the
central line.
• Drill the holes using a drill of Ø 8
mm, drive the plugs in and then tight
the screws 2.
• Hang the cooker hood 1 on the
screws 2.
• Mount the V-flap 3 on the exhaust
outlet of the cooker hood 4.

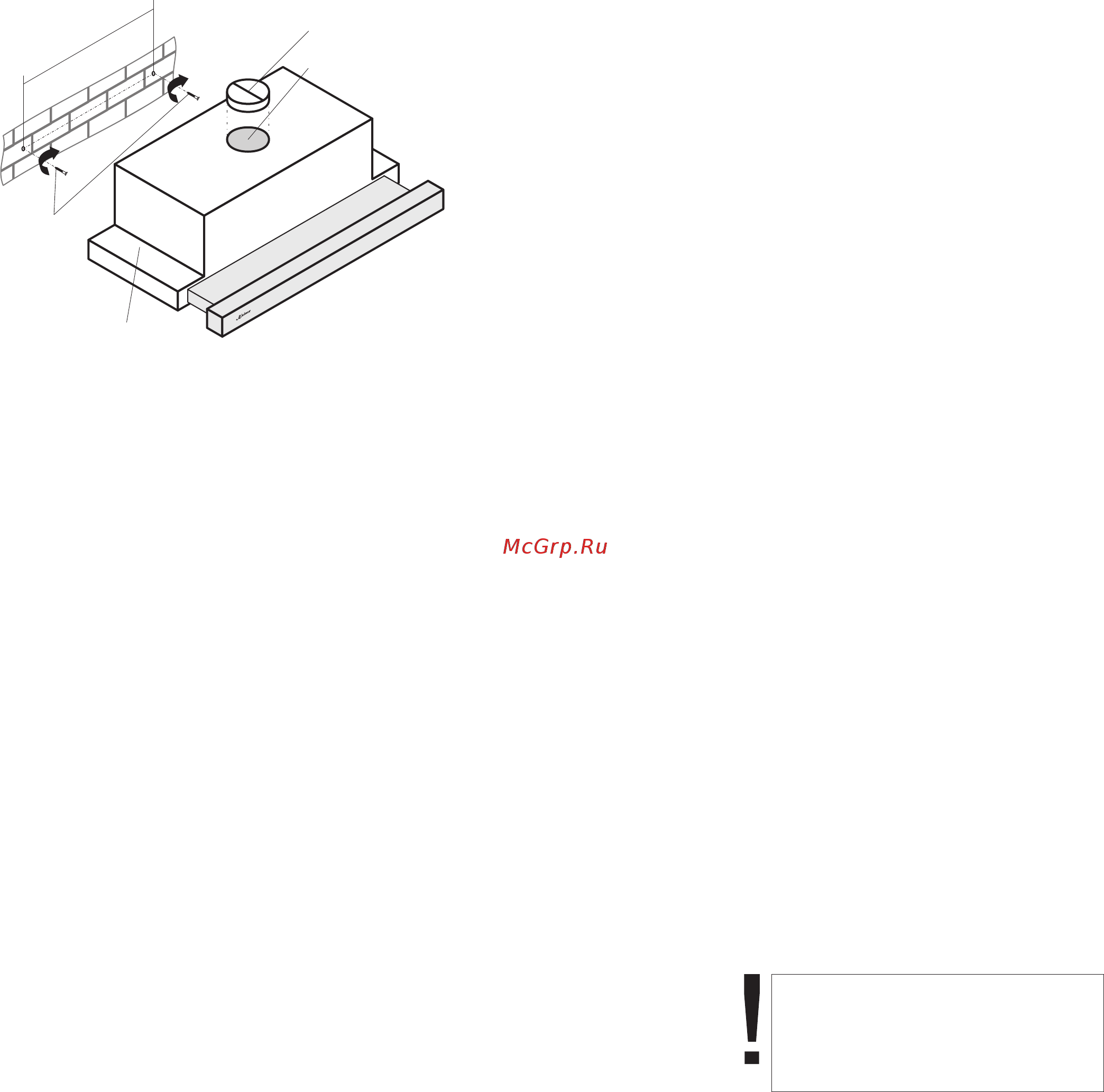

3
1
4
496
2
Attention! Before the beginning of
the operation it is obligatory to
remove an adapter inside the
cooker hood.
