MOUNTING OF THE COOKER HOOD
EA 641
Mounting under a wall unit

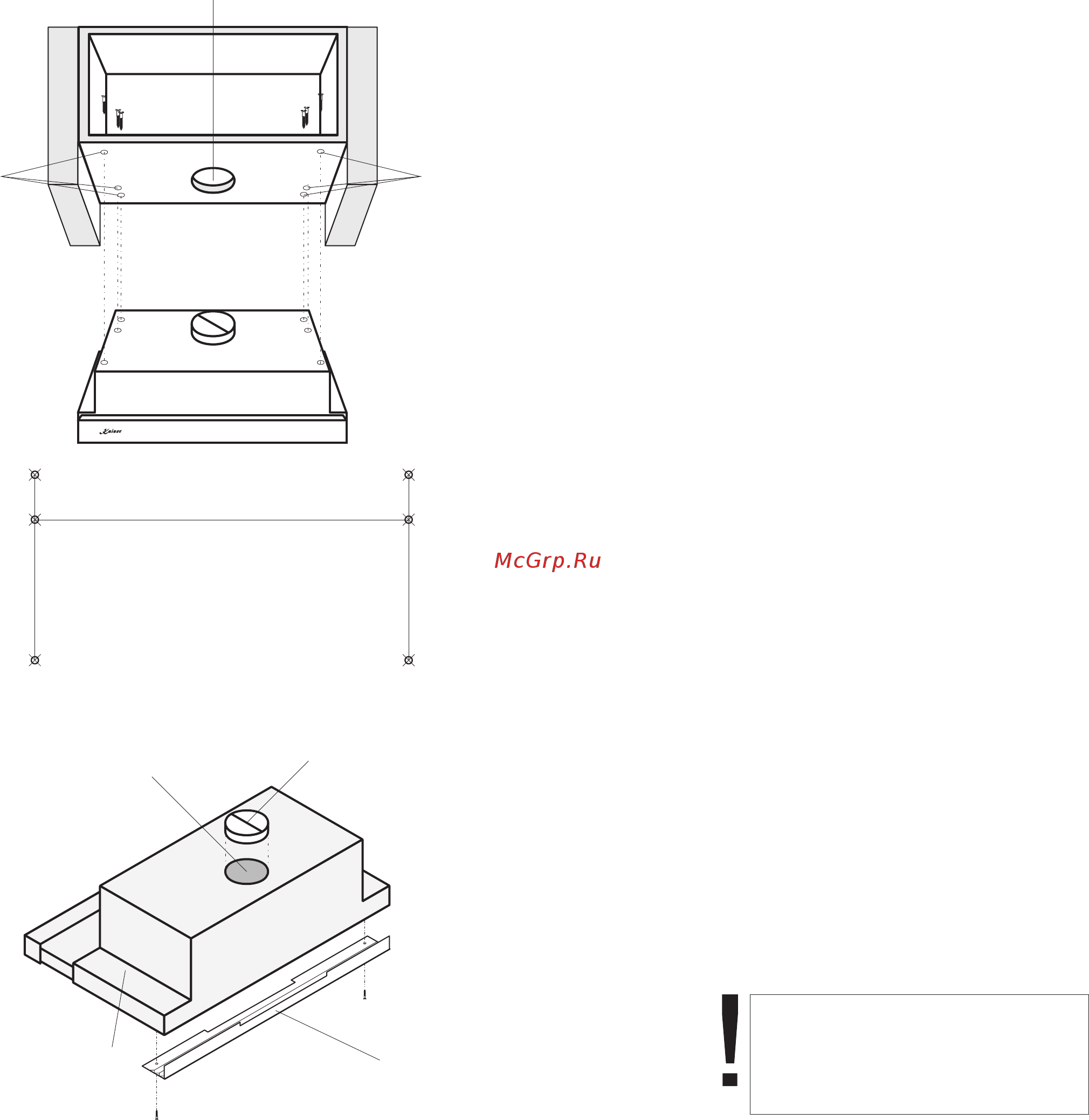

• Drill in the wall unit the 6 holes 5 in
predefined places using a drill of Ø 4
mm.
• Mount the V-flap 3 on the exhaust
outlet of the cooker hood 4.
• Fasten the cooker hood with a 6
screws, operate inside of the wall
unit.
• For the air extractor mode of the
cooker hood make an opening 6 in
the bottom of the wall unit in
advance, in accordance with the
drawing.
• To close possible space between
the cooker hood and the wall, use a
plastic spacing bar 7 on the rear
side of the device.
• f the cooker hood will be operate in I
o do u r a b s o r b e r m o d e i t i s
necessary to install charcoal filter.
3
4
3
7
516
60
60
194
194
6
5 5
EN
Attention! Before the beginning of
the operation it is obligatory to
remove an adapter inside the
cooker hood.
