8.1 • WATER PRESSURE
The pressure of the water in the network
must be between 150 and 500 kPa,
as already stated under the heading
“Technical Data”. If the supply pressure is
higherthanthis,apressurereductionvalve
must be installed between the oven and
the main.
8.2 • WATER CONNECTION TO THE
VAPORIZER
The water supplied to the vaporizer must
be either cold and softened, or hot
(max 50 °C), as described below. The
water connection is R 3/4”. The hose for
connection to the water supply must be
provided by the installer. A shutoff valve
must be installed on the line between the
oven and the supply.
8.3 • WATER SPECIFICATIONS
The characteristics of the water must come
within the limits given below, in order to
preventbothcorrosion,whichisextremely
damaging for the appliance, due to
supplying water that is too softened or too
aggressive,andscalingintheovenandin
the water system in the case of supplying
water that is too hard.
Hardness: between 6° and 9° TH
PH: greater then 7.5
Chlorides less than 30 ppm
These values are important in ensuring that
the water used by the appliance is suitably
treated!

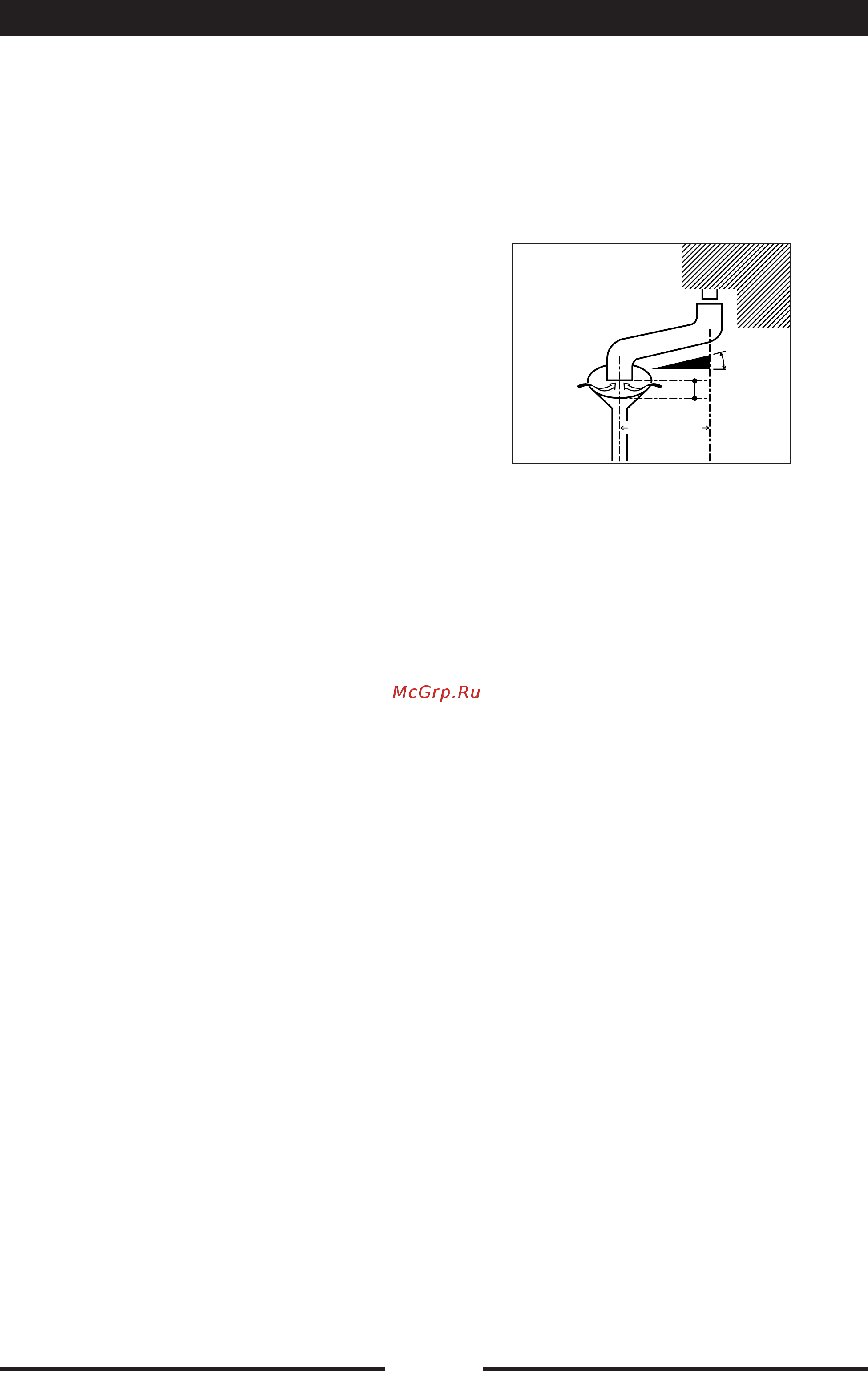

8.4 • DRAIN
It is imperative to fit a drain cup to ensure
a minimum air drop of 25 mm. between
the appliance’s plastic drain elbow and
drain line. A direct connection is not
permissible.
WARNING:
The drain line must be outside the
perimeter of the oven.
It is prohibited to reduce the drain
diameter.
8 • WATER AND DRAIN CONNECTIONS
Max. 200 cm
Min. 4
25 mm.
