12 • COMMISSIONING AND TESTING
12.1 • Check the appliance and the entire
installation straight after connecting.
Check in particular:
•therearenotracesoftheprotectivefilmon
the outside walls and the oven is empty;
•alltheventsareclear;
•theconnectionsaremadeasrequiredand
instructed in this handbook;
•all the safety requirements of the current
standards,lawsanddirectivesaremet;
•thereisnoleakagefromthegasandwater
connections;
•waterdrainageandfluegasextractionare
clear.

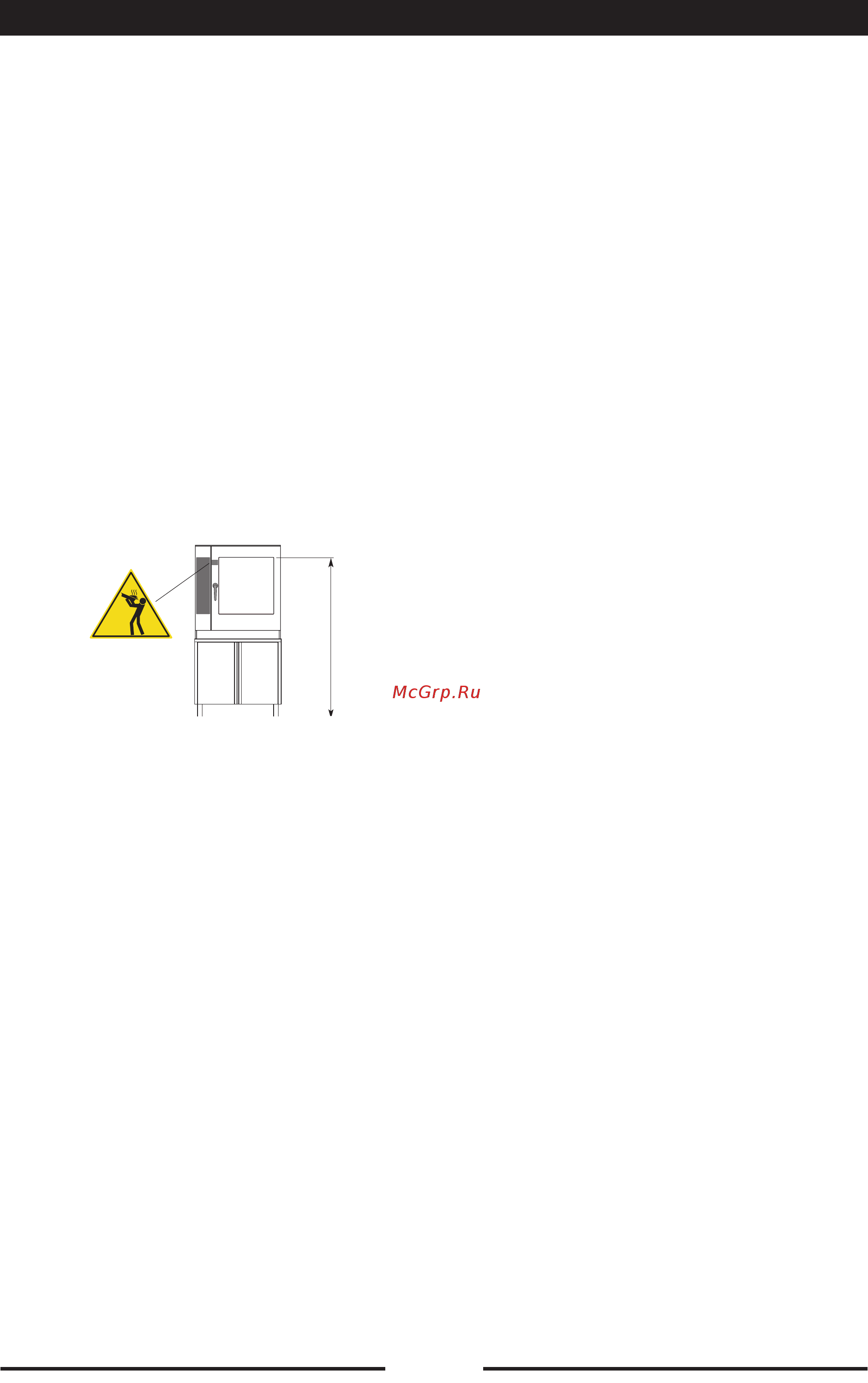

•Applytheadhesivewiththewarningsignal
against the scalding danger at a height
from the ground of 1.6m.
12.2 • Now proceed to light the oven as directed
in the user manual, checking the smooth
ignition of the burner.
12.3 • You should moreover check that the
silicone joints and sleeves of the water
circuit(ovenvent,ovenoutlet,driptray)do
not leak.
12.4 • Carefully refit the side and/or back that
was removed for the above work.
12.5 • For additional certainty that the appliance
is operating correctly, carry out a
volumetric measurement of the quantity
of gas consumed. The meter will show
how much gas has been consumed over
a given period oftime, and this value can
be checked against the values given in
Table 5 of the “Tecnical gas data” booklet.
12.6 • The test report must be completed in
full and submitted to the customer, who
shouldthensigninacceptance.Witheffect
fromthismoment,theapplianceiscovered
by the manufacturer’s warranty.
1600 mm (63 inch)
