11 • OPERATING AT THE RATED HEAT OUTPUT

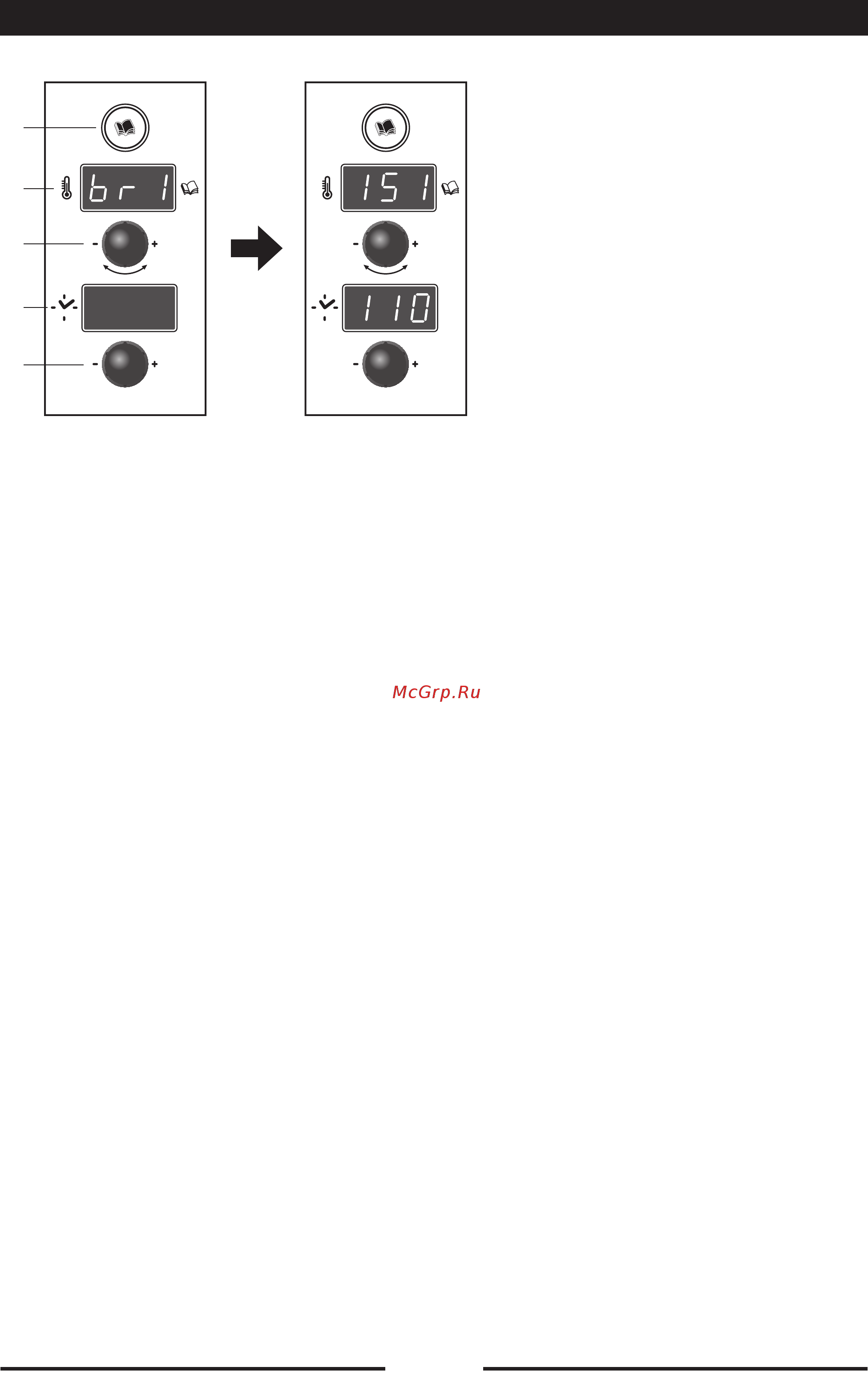

Turn knob 5 until [br1] on display 2 and confirm by
pressing knob 3.
display 2 shows parameter [151] IGN ignition
speed and display 4 shows the ignition speed value
(example [110]).
To modify the value press knob 5,turntoknob5 to
set the new value and confirm by pressing knob 5.
Turning knob 3 takes us to display 2 visualisation
of parameter [152] minimum speed, and display 4
shows the minimum speed value (example [136]).
Turning knob 3 again takes us to display 2
visualisation of parameter [153] maximum speed,
and display 4 shows the maximum speed value
(example [173]).
Press button 1 to select another burner by turning
knob 5.
Proceed in the same way to check the values of the
other burners if present (example [br2]).
1
2
3
5
4
