Lainox REV101M [22/32] Installation diagrams
![Lainox REV101M [22/32] Installation diagrams](/views2/1331519/page22/bg16.png)
22
90027260rev00

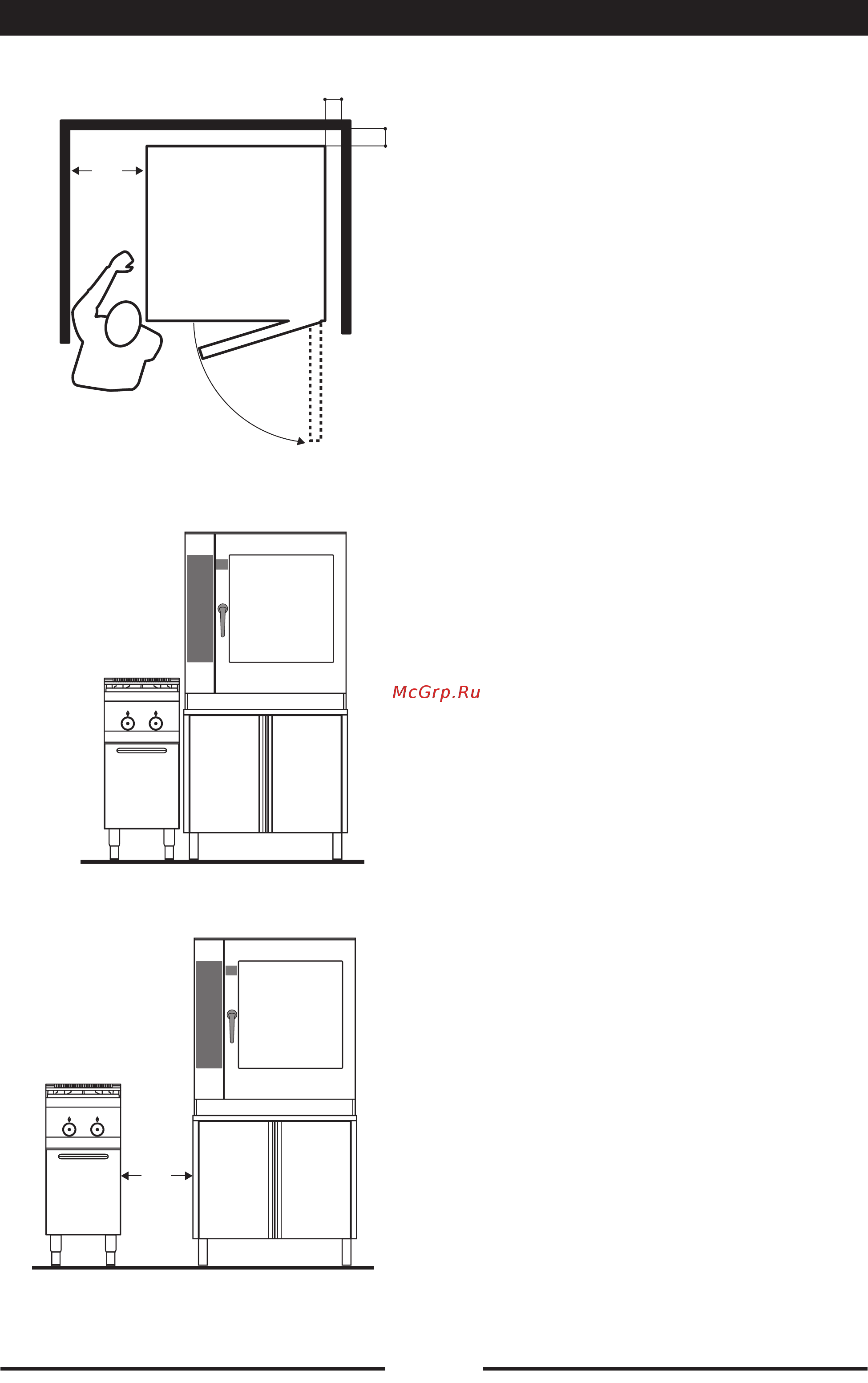

14 • INSTALLATION DIAGRAMS
500mm
20inch
50 mm / 2 inch
50 mm / 2 inch
400mm
15,7inch
DISTANCES TO OBSERVE
We recommend keeping a distance
of 500mm/20inch on the
Left-hand side in order to carry out
maintenance work.
DO NOT INSTALL APPLIANCES
WITH A SOURCE OF HEAT ON
THE LEFT-HAND SIDE OF THE
OVEN
CAUTION: if the ambient
temperature to the left of the
appliance is too high, the oven will
stop for reasons of safety.
Minimum distance from sources of
heat on the left-hand side:
400mm/15,7mm.
