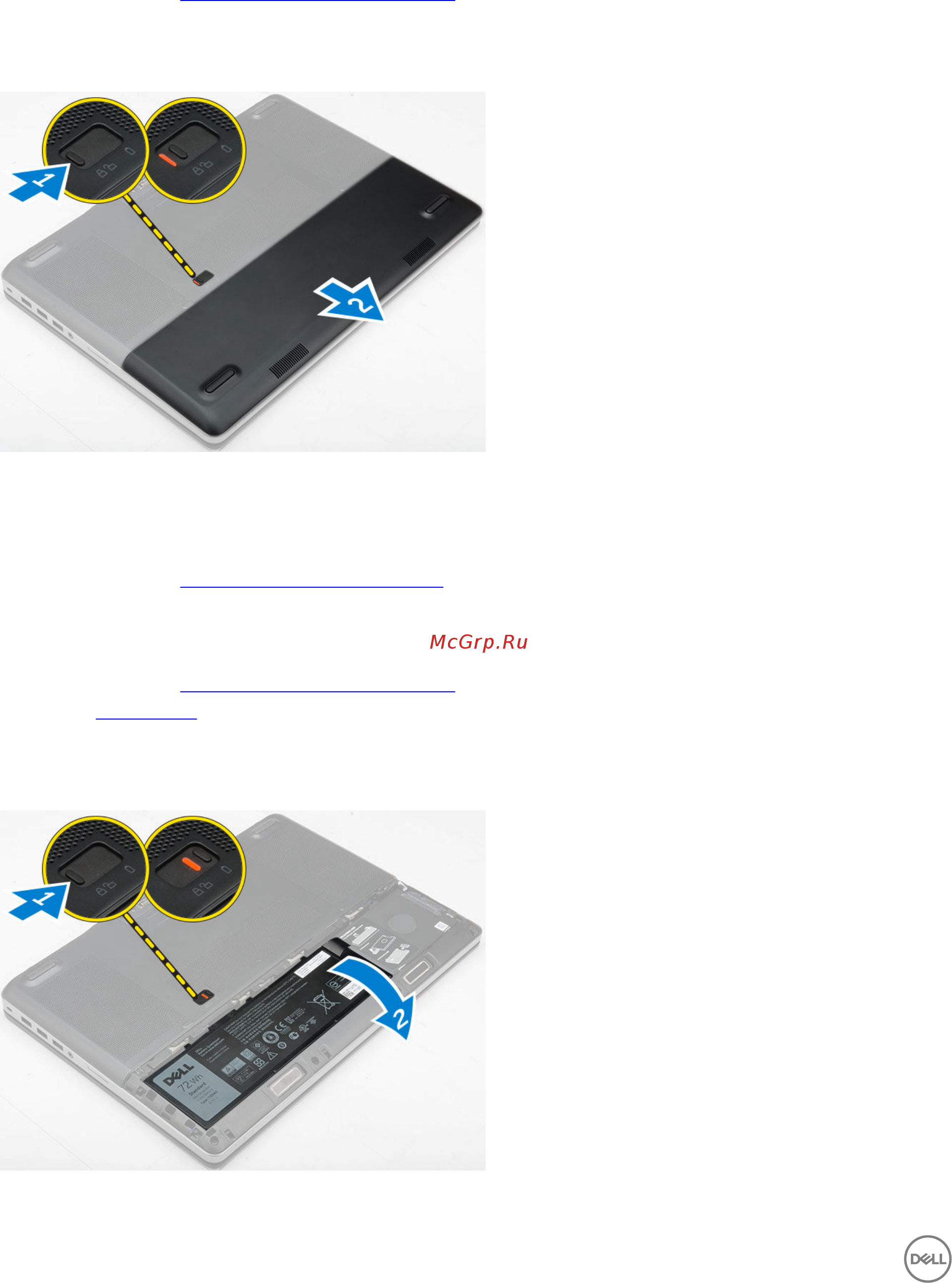

Removing the battery cover
1. Follow the procedure in Before working inside your computer.
2. Perform the following steps as shown in the illustration:
a. Slide the release latch to unlock the battery cover [1].
b. Slide and lift the battery cover to remove it from the computer [2].
Installing the battery cover
1. Slide the battery cover into its slot until it clicks into place.
2. Follow the procedure in After working inside your computer.
Removing the battery
1. Follow the procedure in Before working inside your computer.
2. Remove the battery cover.
3. Perform the following steps as shown in the illustration:
a. Slide the release latch to unlock the battery [1].
b. Lift and remove the battery from the computer [2].
