Installing the display panel

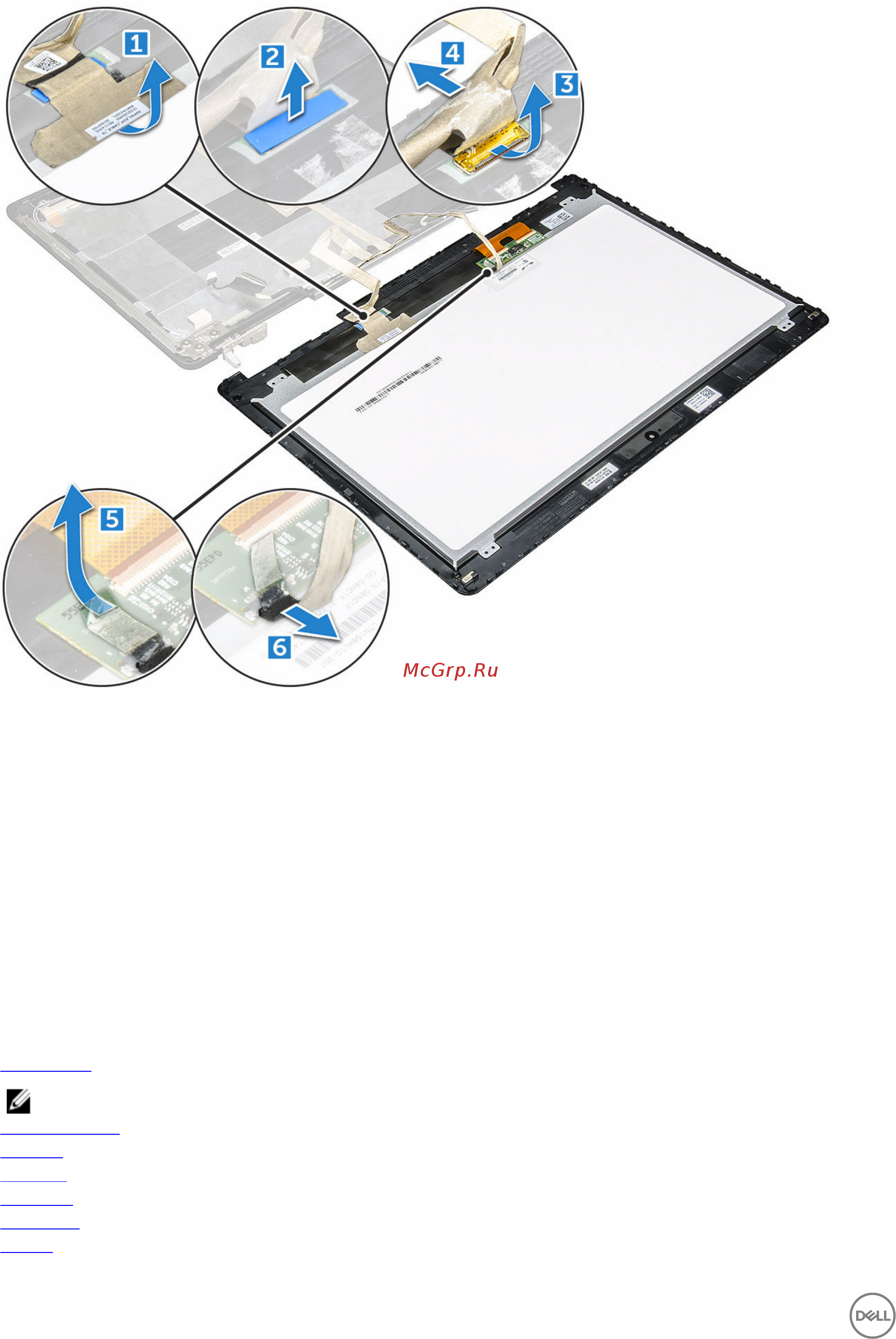

1. To install the display panel for non touch systems:

a. Connect the eDP cable to the connector on the back of the display panel and fix the adhesive tape.

b. Align the display panel with the tabs on the display assembly.

c. Tighten the screws to secure the display panel to the display assembly.

2. To install the display panel for touch systems:

a. Place the display panel facedown.

b. Connect the eDP and display cables to the connector on the back of the display panel and fix the adhesive tape.

c. Turn the display assembly over.

d. Align the display panel with the tabs on the display assembly.

e. Press the edges of the display panel to secure it to the display assembly.

3. Install the:

a. display bezel

NOTE: This is applicable only for non touch systems.

b. display assembly

c. palmrest

d. keyboard

e. hard drive

f. base cover

g. battery
