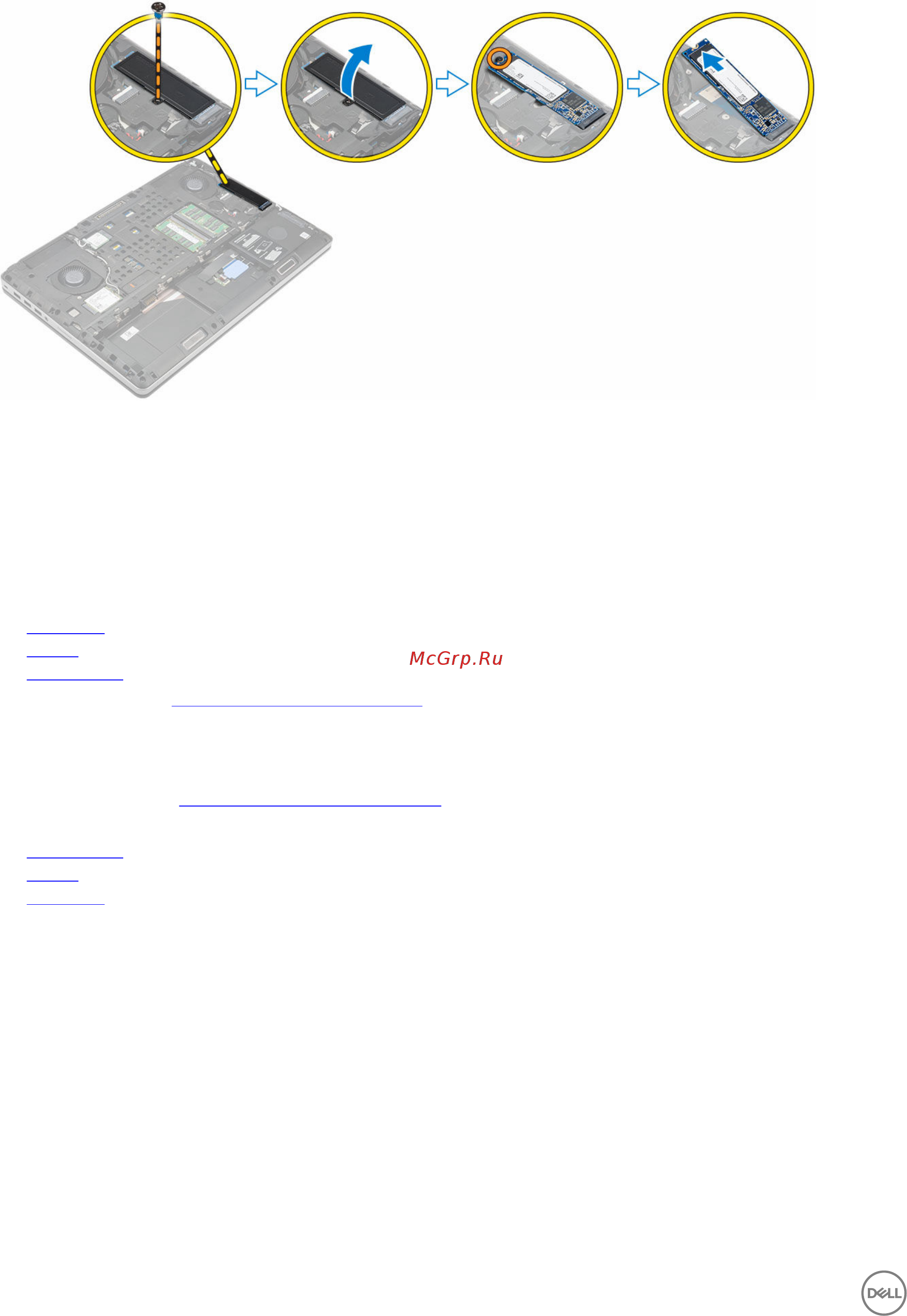

Installing the M.2 SSD
1. Replace the M.2 SSD in its slot.
2. Tighten the screw to secure the M.2 SSD to the computer.
3. Place the shield on the M.2 SSD.
4. Tighten the screw to secure the shield to the computer.
5. Install the:
a. base cover
b. battery
c. battery cover
6. Follow the procedure in After working inside your computer.
Removing the coin cell battery
1. Follow the procedures in Before working inside your computer.
2. Remove the:
a. battery cover
b. battery
c. base cover
3. Disconnect the coin cell battery cable. Pry the coin-cell battery upward and remove it from the computer.
