Dell 7510 (7510-9822) [9/57] Connecting to a docking station

5. Power connector 6. Power button

7. Security-cable slot 8. USB 3.0 connector

9. Headset connector 10. Memory card reader

11. Fingerprint reader 12. Battery-status light

13. Hard-drive activity light 14. Power-status light

15. Speakers 16. Touchpad

17. Contactless smartcard reader (optional) 18. Smartcard reader (optional)

19. USB 3.0 connector 20. Mini DisplayPort connector

21. HDMI connector 22. USB-C connector

23. Docking connector 24. Service-tag label

25. Door and battery release latch

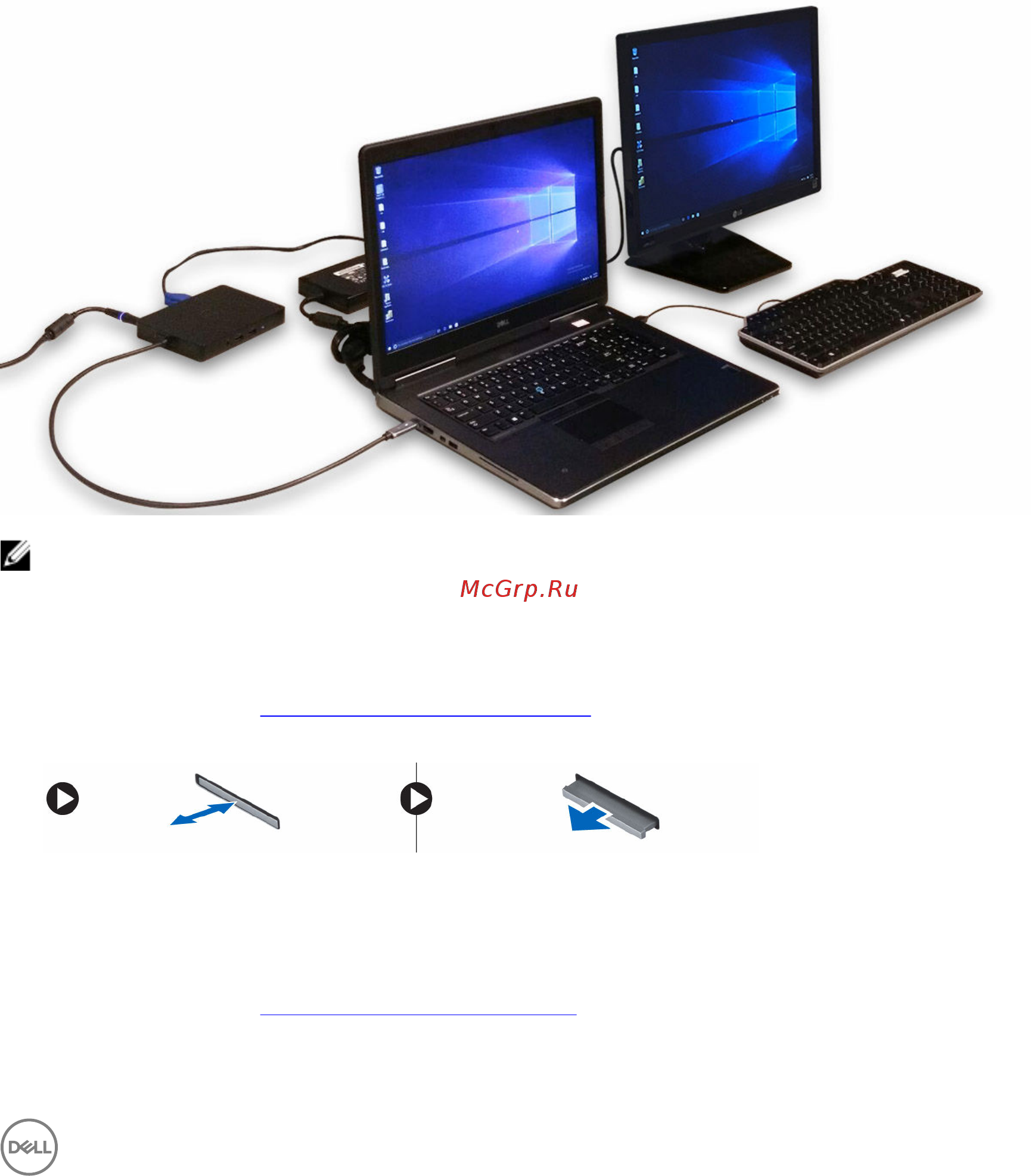

Connecting to a docking station

NOTE: Computers requiring more than 130 W power input must also be connected to their own power adapter for

charging and operating at full performance.

Removing the Secure Digital (SD) card

1. Follow the procedure in Before working inside your computer.

2. Press in on the SD card to release it from the computer. Slide the SD card out of the computer.

Installing the SD card

1. Push in the SD card into its slot until it clicks into place.

2. Follow the procedure in After working inside your computer
