Dell 7510 (7510-9822) [23/57] Installing the i o board left

e. keyboard

f. palmrest

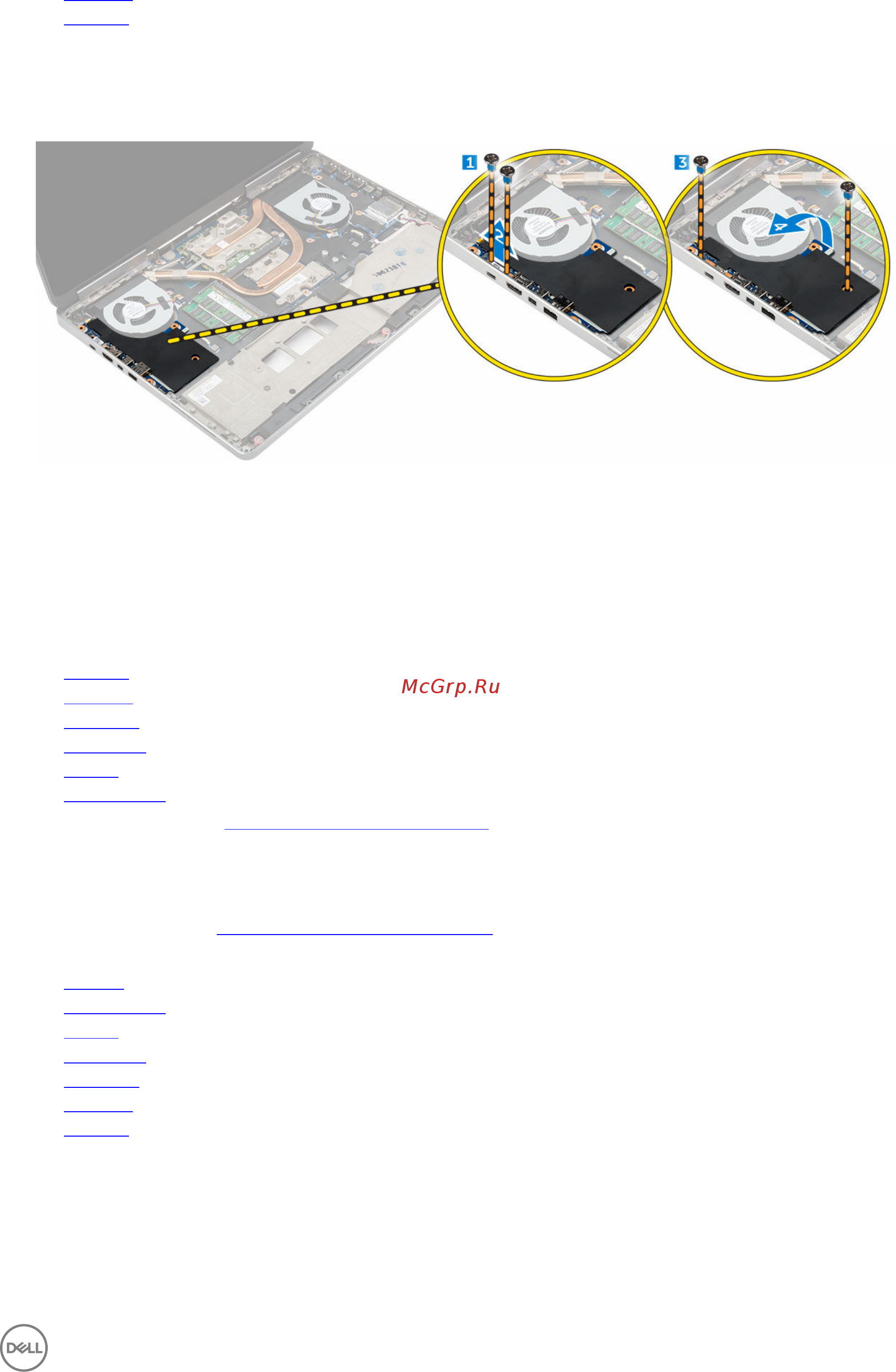

3. Perform the following steps to remove the I/O board:

a. Remove the screws that secure the I/O board to the computer [1, 3].

b. Remove the bracket of the thunderbolt connector [2].

c. Lift the right edge of the I/O board upwards to disengage the connector and remove it from the computer [4].

Installing the I/O board left

1. Connect the I/O board connector and slide the I/O board into its slot in the computer.

2. Install the thunderbolt bracket.

3. Tighten the screws to secure the I/O board to the computer.

4. Install the:

a. palmrest

b. keyboard

c. hard drive

d. base cover

e. battery

f. battery cover

5. Follow the procedures in After working inside your computer.

Removing the Input/Output (I/O) board right

1. Follow the procedure in Before working inside your computer.

2. Remove the:

a. SD card

b. battery cover

c. battery

d. base cover

e. hard drive

f. keyboard

g. palmrest

3. Perform the following steps to remove the I/O board:

a. Disconnect the speaker cable from the I/O board [1].

b. Remove the screws that secure the I/O board to the computer [2].

c. Lift the left edge of the I/O board upwards to disengage the connector and remove it from computer [3].
