Dell 7510 (7510-9822) [12/57] Installing the hard drive

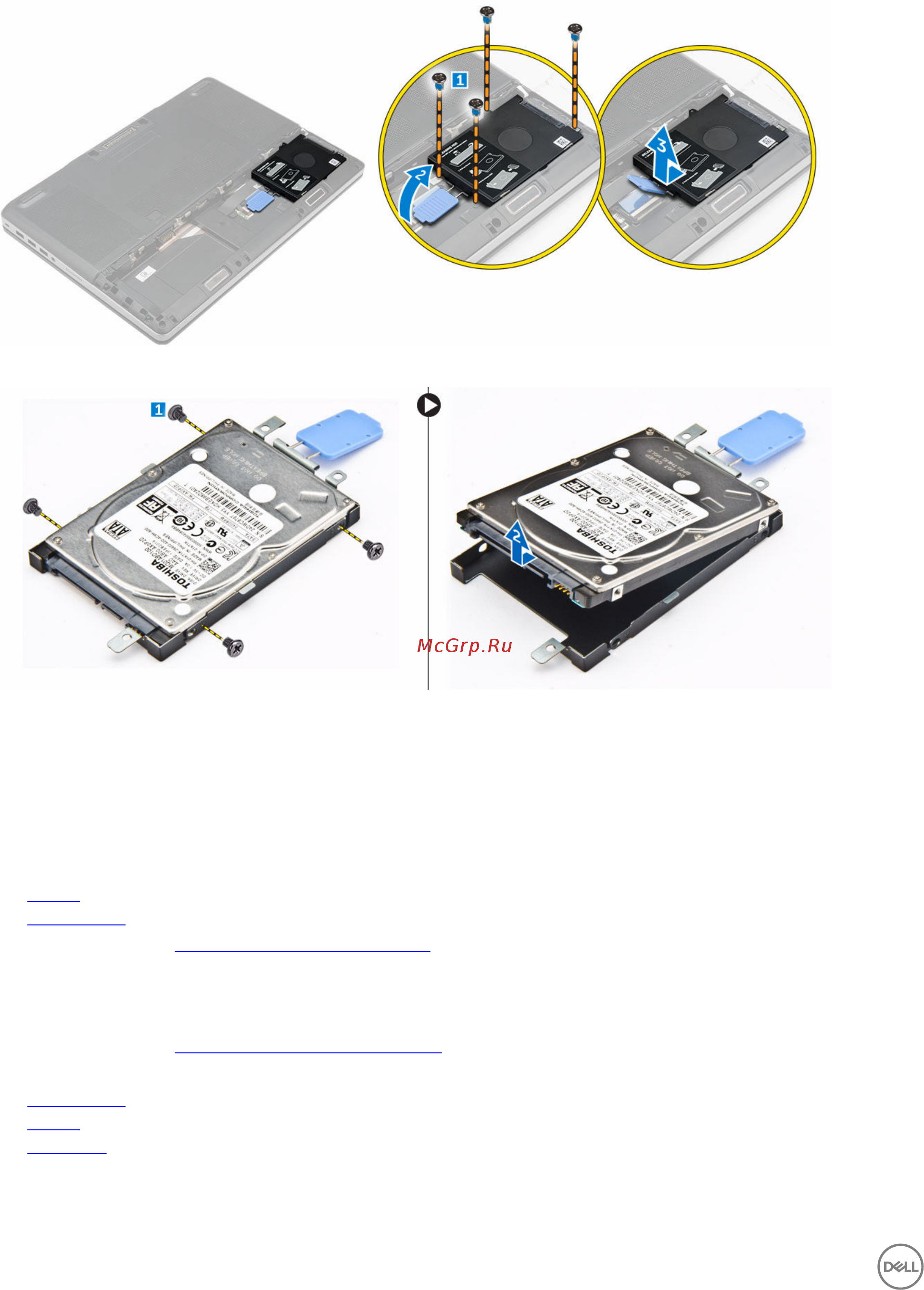

b. Lift the hard-drive latch to the unlock position [2].

c. Slide and lift the hard drive from the computer [3].

4. Remove the screws that secure the hard drive. Lift the hard drive from the bracket.

Installing the hard drive

1. Tighten the screws to secure the hard drive to hard-drive bracket.

2. Insert the hard drive into its slot in the computer.

3. Tighten the screws to secure the hard drive to the computer.

4. Install the:

a. battery

b. battery cover

5. Follow the procedure in After working inside your computer

Removing the Subscriber Identification Module (SIM) card

1. Follow the procedure in Before working inside your computer.

2. Remove the:

a. battery cover

b. battery

c. base cover

3. Press the sim card and remove it from the sim card slot.
