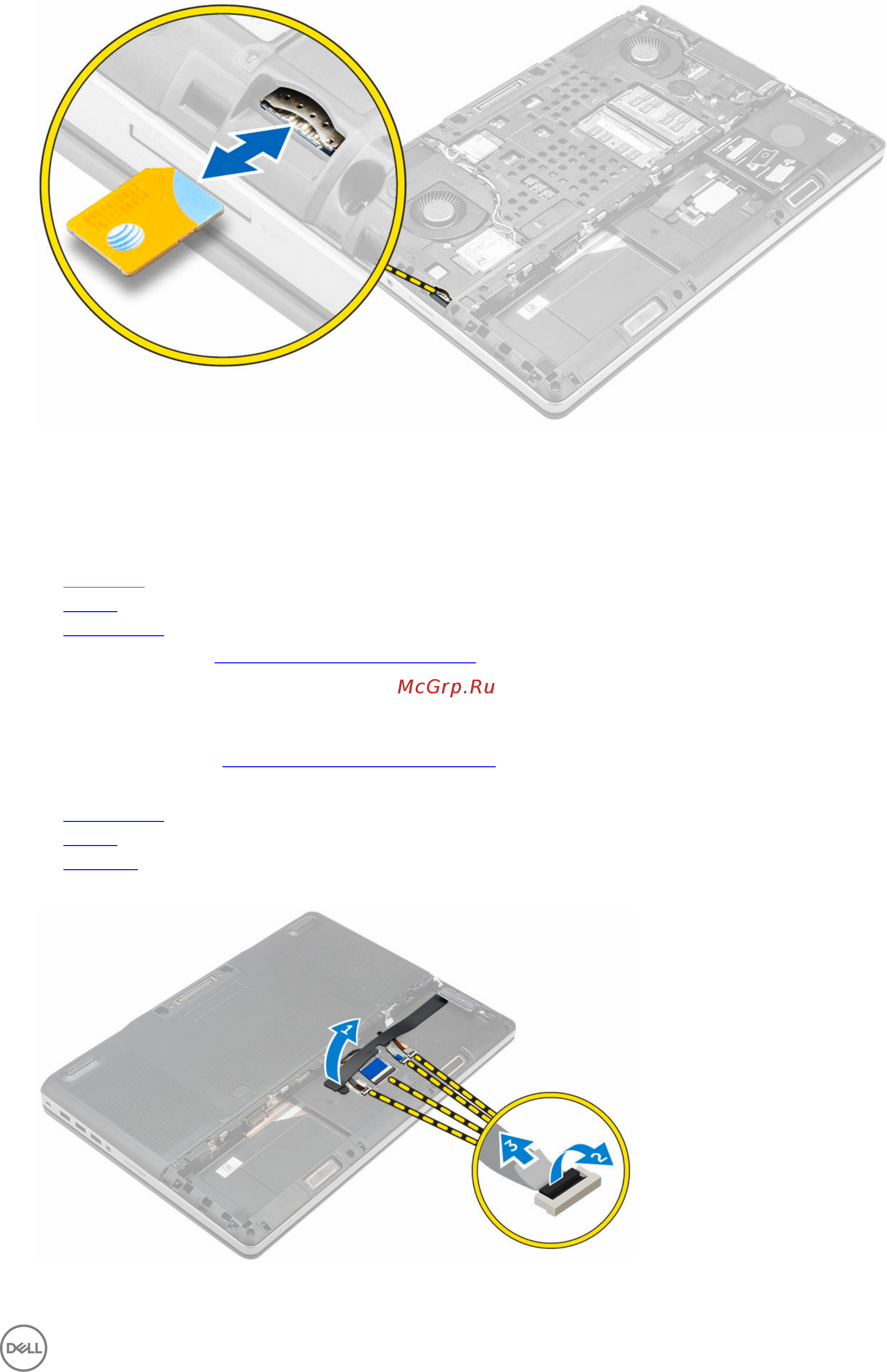

Installing the Subscriber Identification Module (SIM) card
1. Slide the sim card in its slot until it clicks in place.
2. Install the:
a. base cover
b. battery
c. battery cover
3. Follow the procedure in After working inside your computer.
Removing the keyboard
1. Follow the procedures in Before working inside your computer.
2. Remove the:
a. battery cover
b. battery
c. hard drive
3. Peel the tape to access the cable [1]. Lift the tab and disconnect the keyboard cables from the system board [2, 3].
4. Perform the following steps as shown in the illustration:
