Dell 7510 (7510-9822) [15/57] Installing the secondary memory

Installing the secondary memory

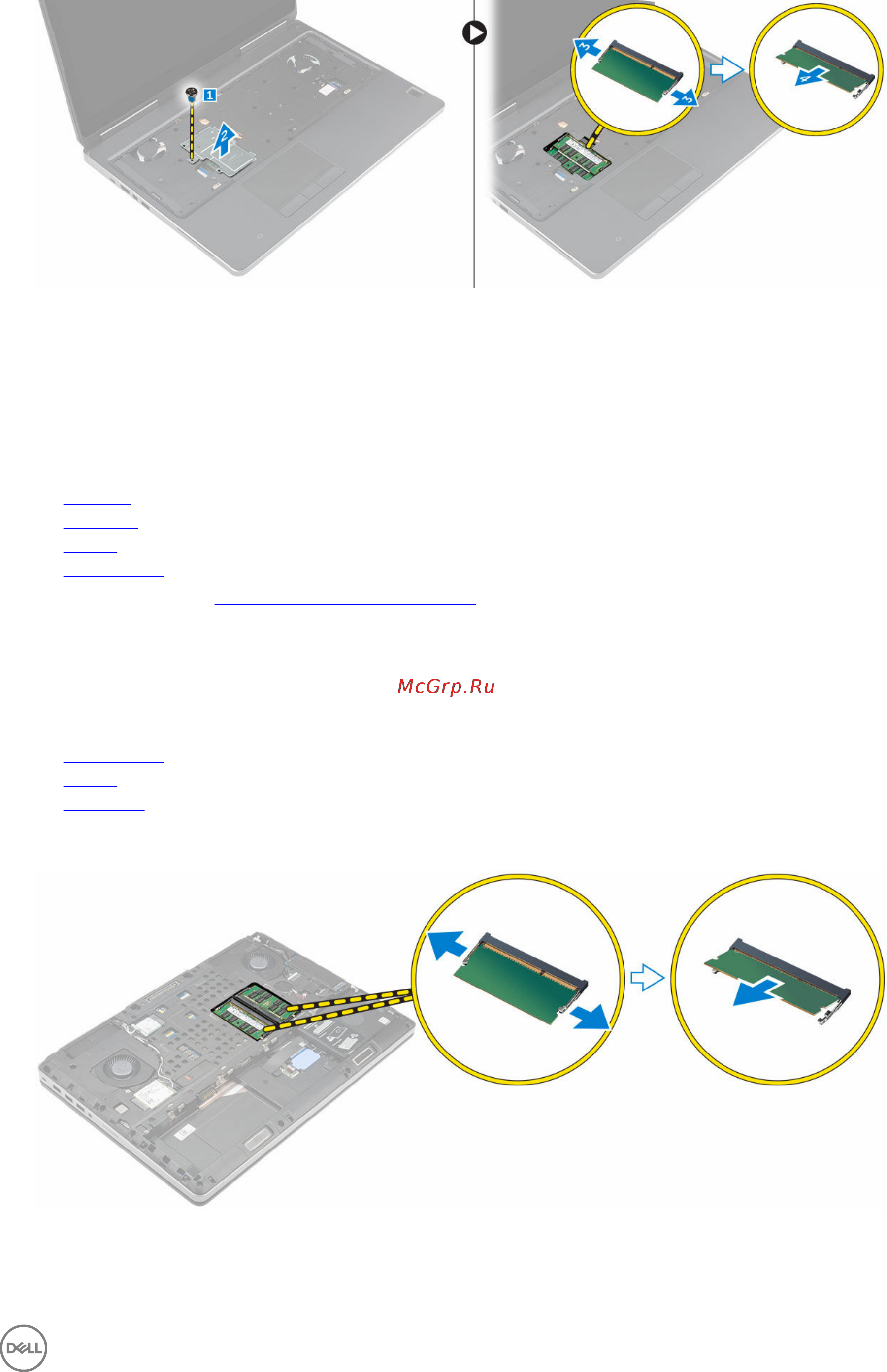

1. Insert the secondary memory into the memory socket.

2. Press the clips to secure the memory module to the system board.

3. Place the memory shield in its original position on the computer and tighten the screw to secure it to the computer.

4. Install the:

a. keyboard

b. hard drive

c. battery

d. battery cover

5. Follow the procedure in After working inside your computer.

Removing the primary memory

1. Follow the procedure in Before working inside your computer.

2. Remove the:

a. battery cover

b. battery

c. base cover

3. Pry the retention clips away from the primary memory until it pops up. Lift the primary memory and remove it from the

computer.
