Dell 7510 (7510-9822) [29/57] Installing the display bezel

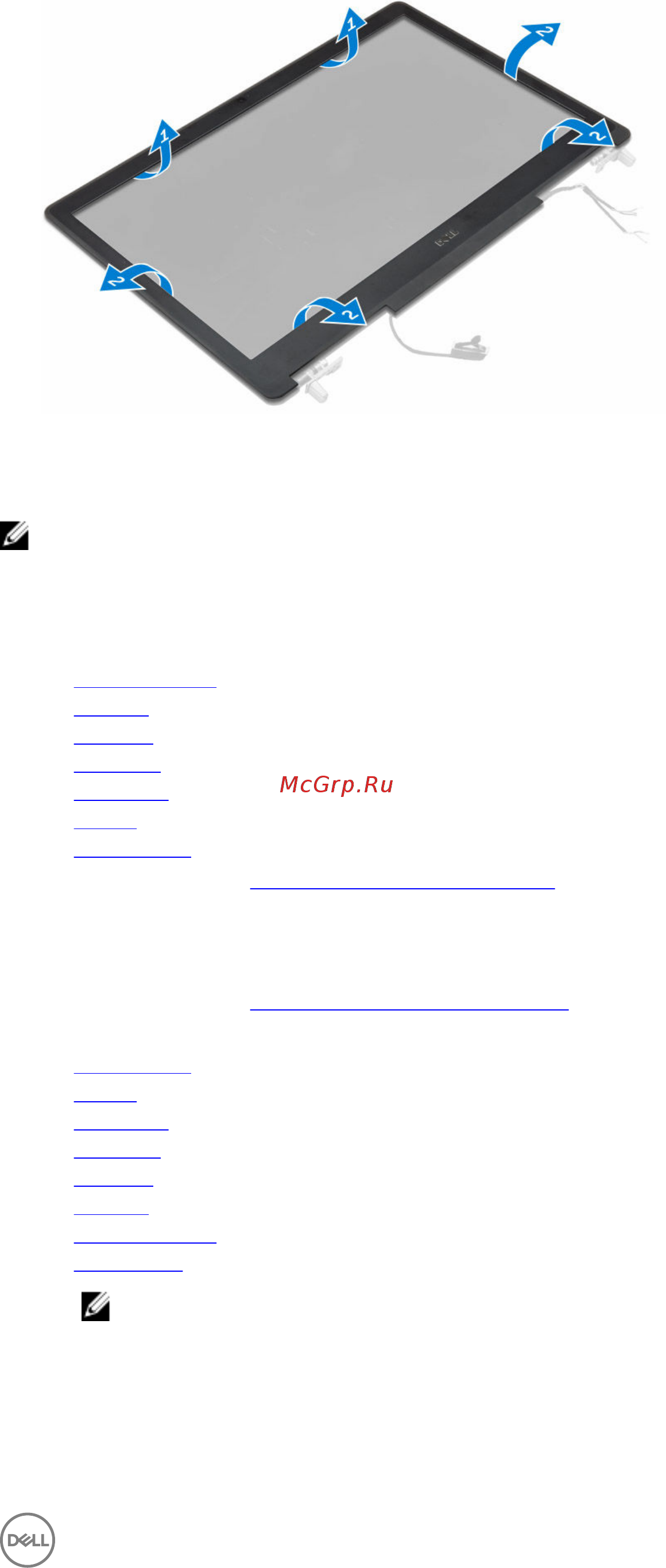

a. Pry up all the edges of the display bezel [1, 2]

Installing the display bezel

NOTE: The display bezel is available only for non touch systems.

1. Place the display bezel on the display assembly.

2. Press the edges of the display bezel until it clicks onto the display assembly.

3. Install the:

a. display assembly

b. palmrest

c. keyboard

d. hard drive

e. base cover

f. battery

g. battery cover

4. Follow the procedure in After working inside your computer.

Removing the display panel

1. Follow the procedure in Before working inside your computer.

2. Remove the:

a. battery cover

b. battery

c. base cover

d. hard drive

e. keyboard

f. palmrest

g. display assembly

h. display bezel

NOTE: This is applicable only for non touch systems.

3. To remove the display panel for non touch systems:

a. Remove the screws that secure the display panel to the display assembly [1].

b. Lift the display panel and turn the display panel over to access the eDP cable [2].

c. Peel the adhesive to access the eDP cable.

d. Disconnect the eDP cable from the connector.
