Dell 7510 (7510-9822) [28/57] Installing the display assembly

Installing the display assembly

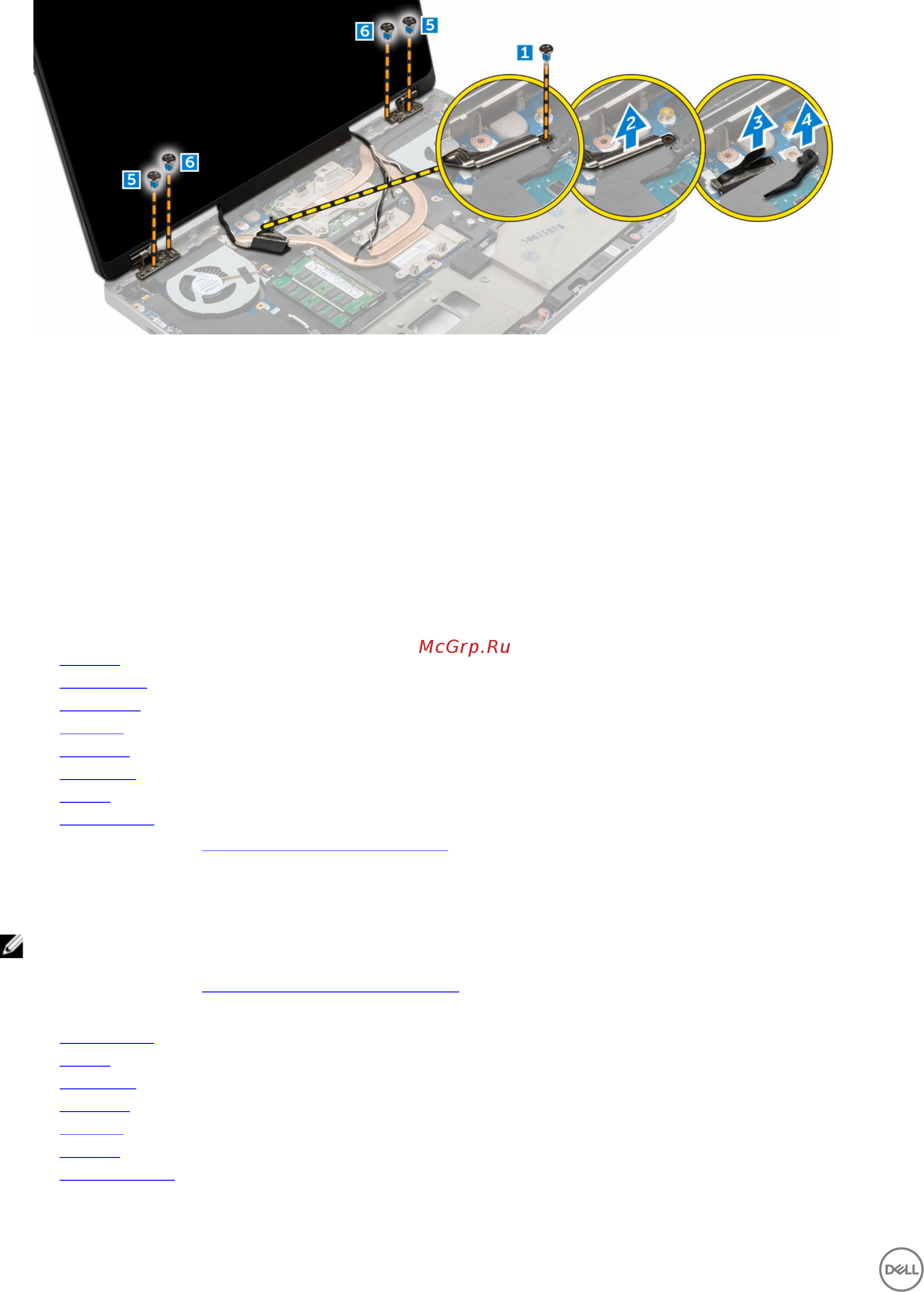

1. Insert the guides on the display assembly into the slots on the computer.

2. Tighten the screws to secure the display assembly in place.

3. Affix the tape on the heat pipe.

4. Connect the eDP cable to the correct connectors on the system board.

5. Insert the wireless antenna cables through the routing hole on the chassis.

6. Tighten the diplay assembly screws at the bottom and back of the computer.

7. Align the display hinge cap and tighten the screws to secure it to the computer.

8. Route and connect the antenna cables to their connectors.

9. Install the:

a. palmrest

b. WWAN card

c. WLAN card

d. keyboard

e. hard drive

f. base cover

g. battery

h. battery cover

10. Follow the procedure in After working inside your computer

Removing the display bezel

NOTE: The display bezel is available only for non touch systems.

1. Follow the procedure in Before working inside your computer.

2. Remove the:

a. battery cover

b. battery

c. base cover

d. hard drive

e. keyboard

f. palmrest

g. display assembly

3. Perform the following as shown in the illustration:
