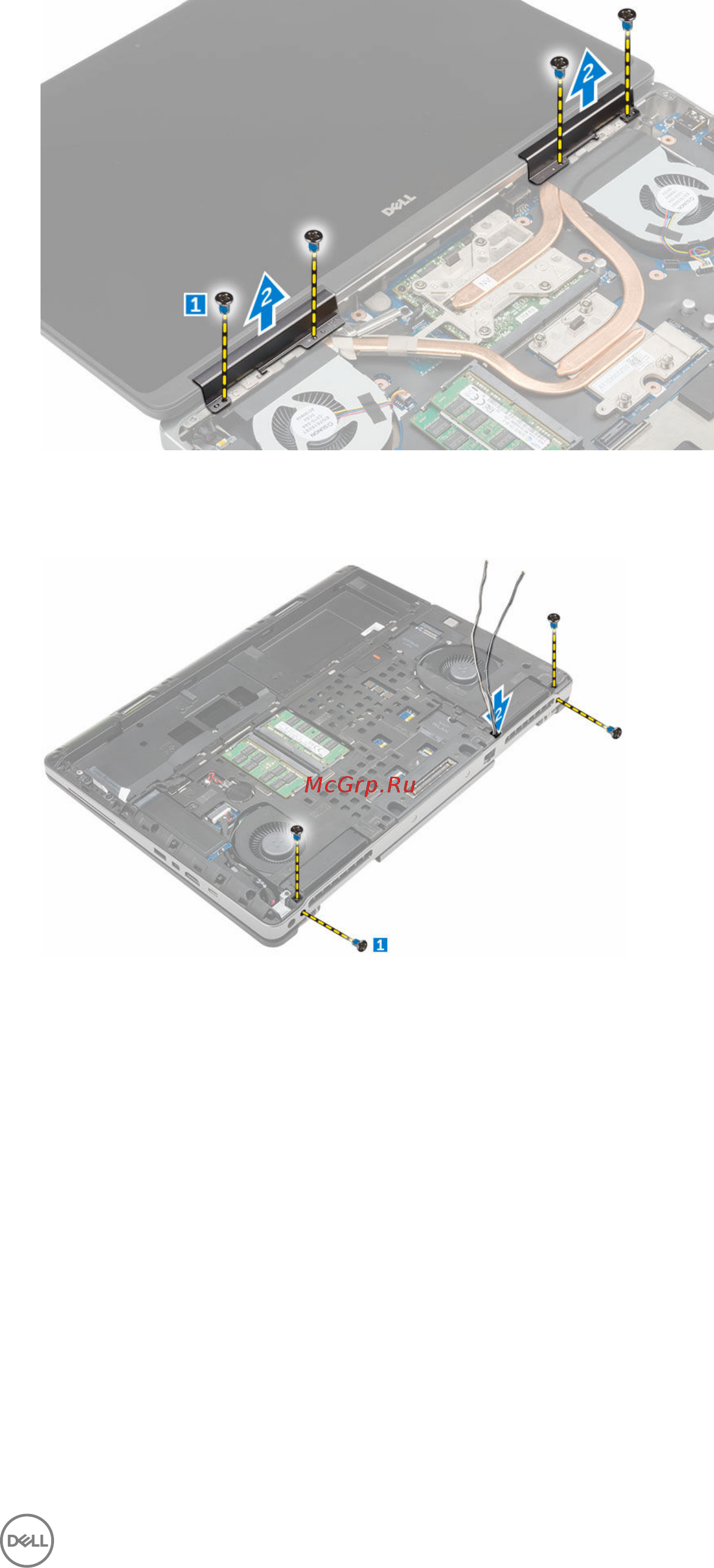

4. Perform the following steps as shown in the illustration:

a. Flip the computer and remove the cosmetic screws from the bottom and back of the computer [1].

b. Pull up the antenna cables through the routing hole [2].

5. Perform the following as shown in the illustration:

a. Remove the screw that secures the eDP cable bracket [1].

b. Remove the eDP cable bracket [2].

c. Peel off the tape on the heat pipe and disconnect the eDP cable from the system board [3, 4].

d. Remove the screws that secure the display assembly to the computer and remove it from the computer [5, 6].
