8023 | V5.0_EN (11/2015)

Technical changes reserved

 Trotec Laser GmbH

Page 36 of 61

There are three methods to focus the laser beam:

A: Manual focusing

B: Focusing by software

C: Automatic focusing by means of light barriers

A - Manual focusing:

A1. Move the processing head over the material to be engraved by means of the

positioning keys X/Y

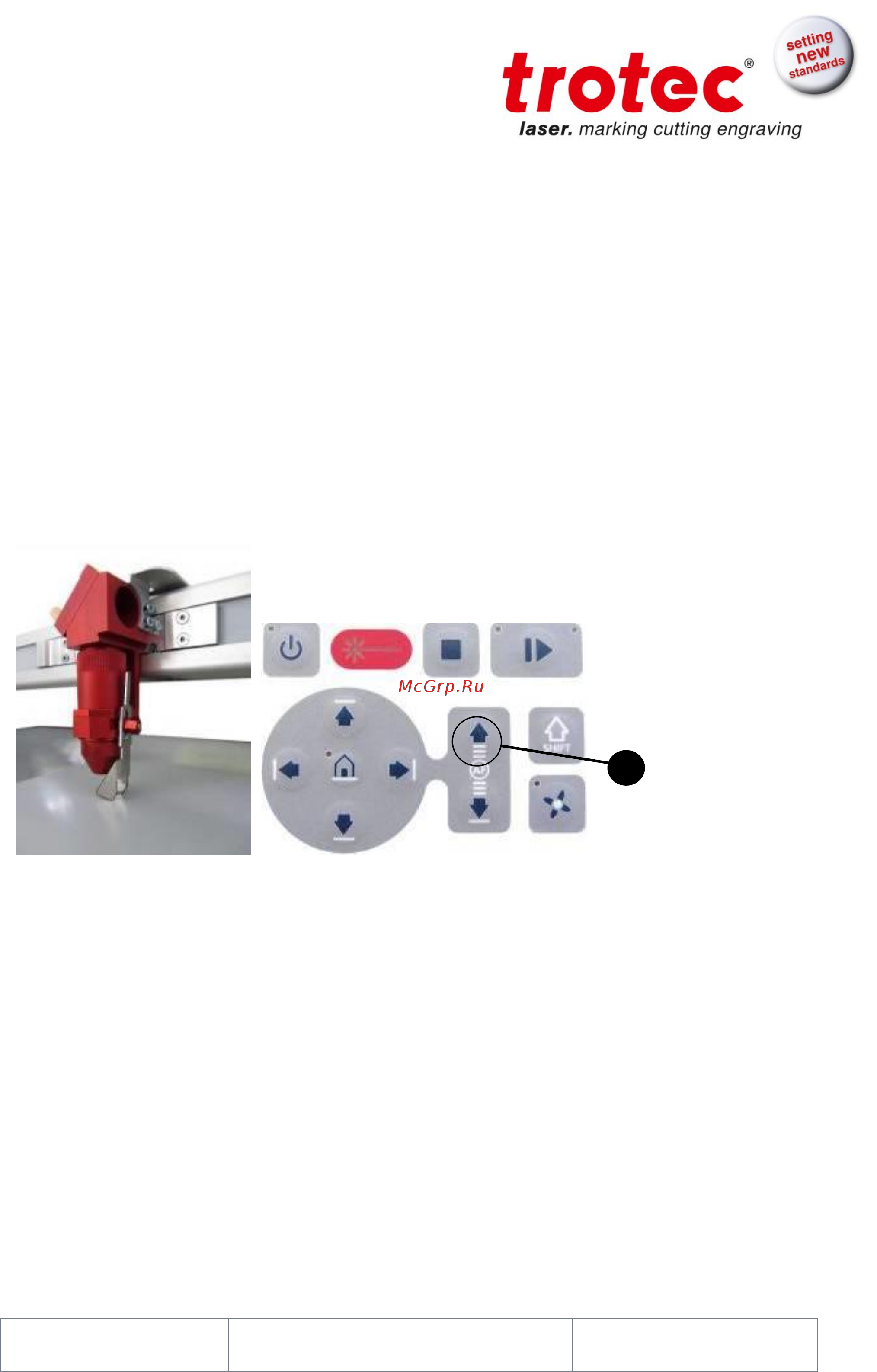

A2. Hang the focus tool on the external ring of the working head so that the focus tool

can move unhindered. Move the working table upwards by pressing the Z positioning key.

While doing this carefully observe the focus tool.

Before the focus tool reaches the work piece, move the working table upwards only very

slowly and step by step by briefly tapping the positioning key, until the tool tilts to the side.

Now the lens is focused onto the surface of the material.

B - Focusing by software:

Click the icon "focus laser" in the Trotec JobControl

The working table moves in Z direction.

The following values are used to determine the focus position and therefore always have to

be checked before using this focus option:

 material thickness (specify the value as accurate as possible)

 table height (check if right table is selected in Options)

 lens type (specify the according lens)
