SpeedMarker 300
8037 | V 2.1_EN (01/2016)
32/ 51

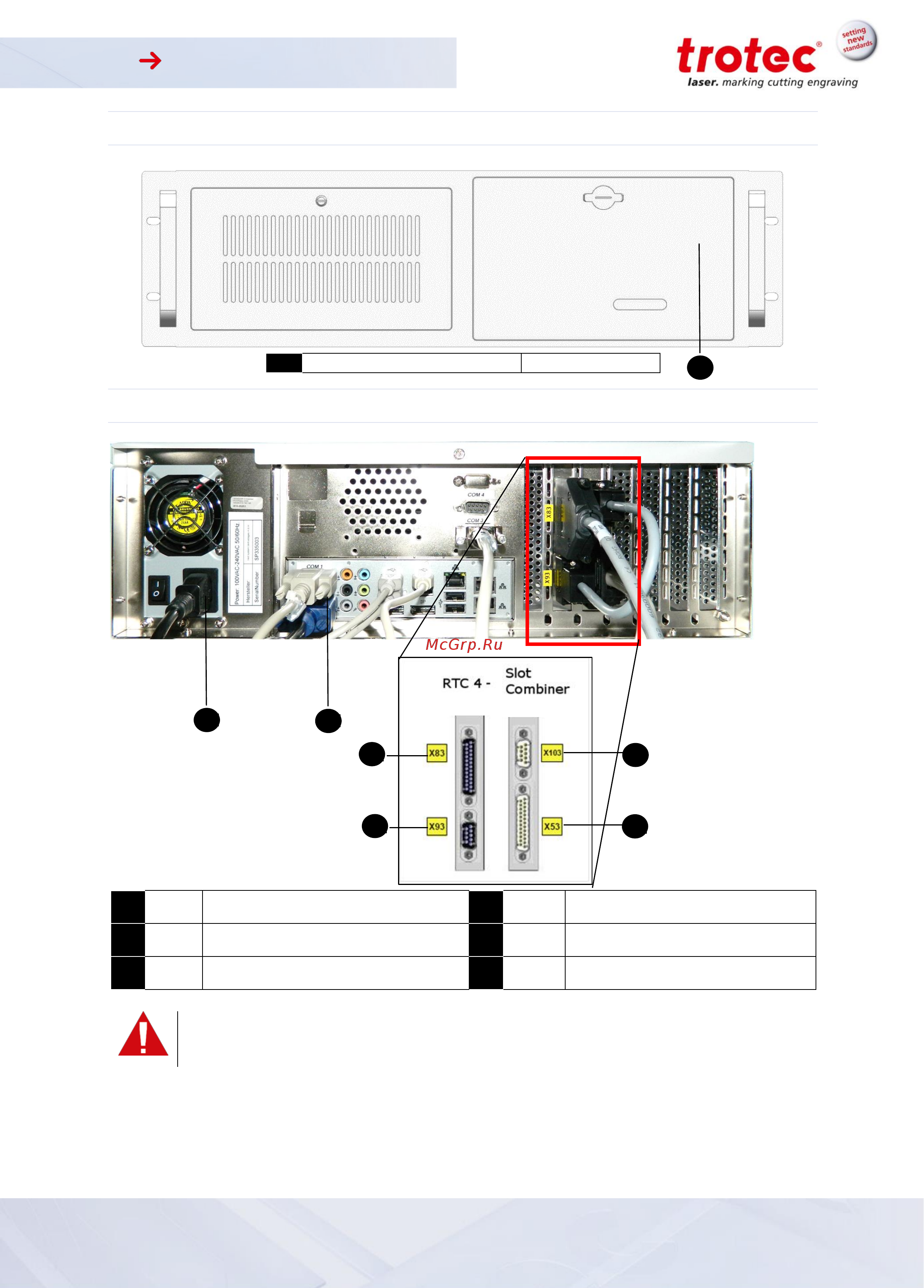

6.3.3 Industrial-PC Front View
1
PC protective cover
6.3.1 Industrial-PC Back View
1
X83
Laserhead connection
4
X53
I/O Control connection to the industrial
PC
2
X93
Laser signal EXIT
Connected to X103 by a short cable
5
COM1
Servida interface connection
3
X103
Laser signal ENTRY
Connected to X93 by a short cable
6
Mains connection via IEC connector
The communication connection between slot combiner card and industrial-PC is established by con-
necting the slot combiner card to the COM interface on the motherboard inside the industrial-PC
1
5
6
1
2
3
4
Card
Card
