Trotec SpeedMarker 300 [44/51] Pass through option

SpeedMarker 300

8037 | V 2.1_EN (01/2016)

44/ 51

Pass-Through Option

Using the Pass-Through Option allows you to mark work pieces longer then 350mm with a square of 200x165mm

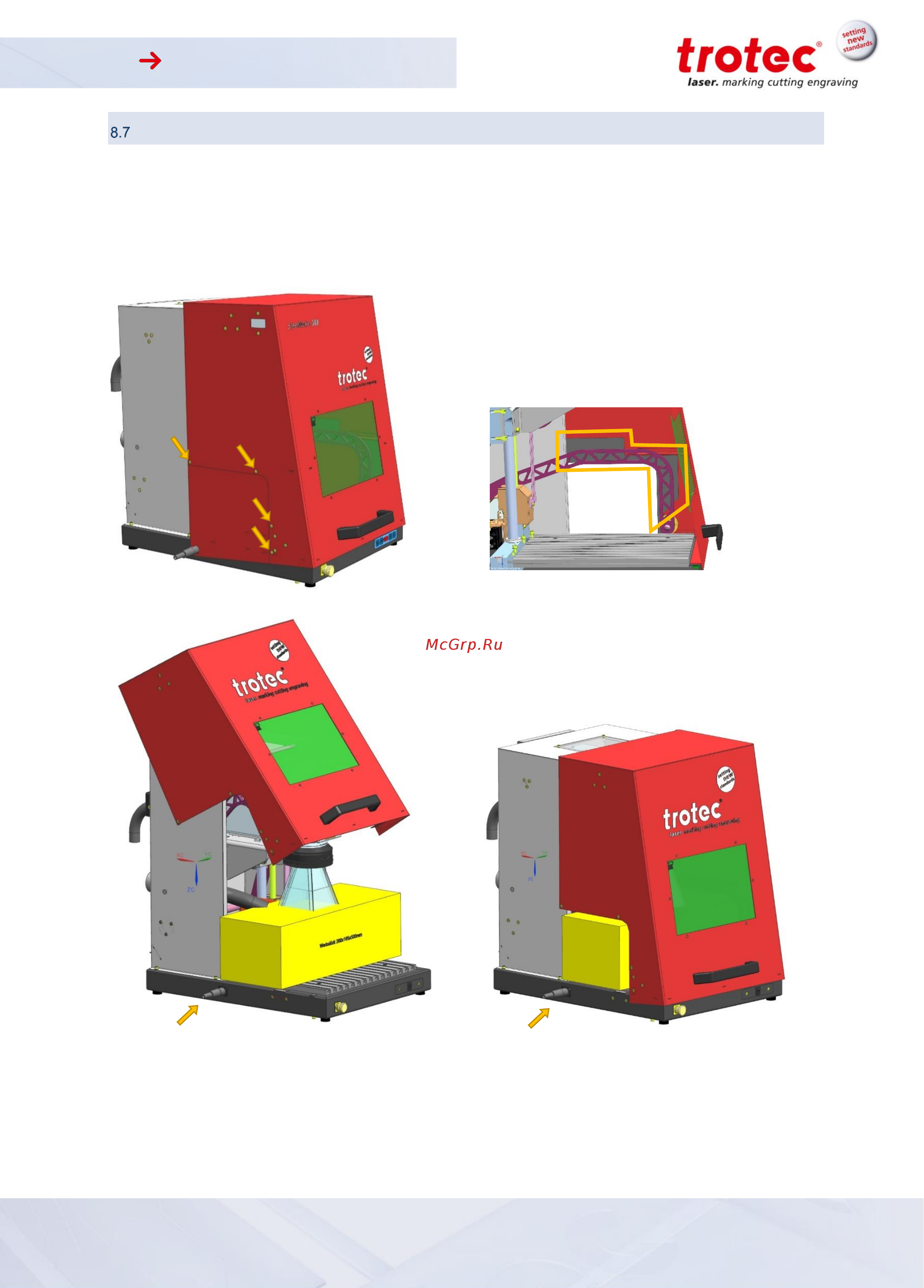

1. Simply remove the side panels by unscrewing them from the outside.

2. Replace them with the additional weights (shown in dark grey). To do so place the weights inside and

fixate them with screws from the outside.

3. The Interlock hatch must be installed to close the Interlock safety circuit.

Additional weights (dark grey)

Interlock hatch
