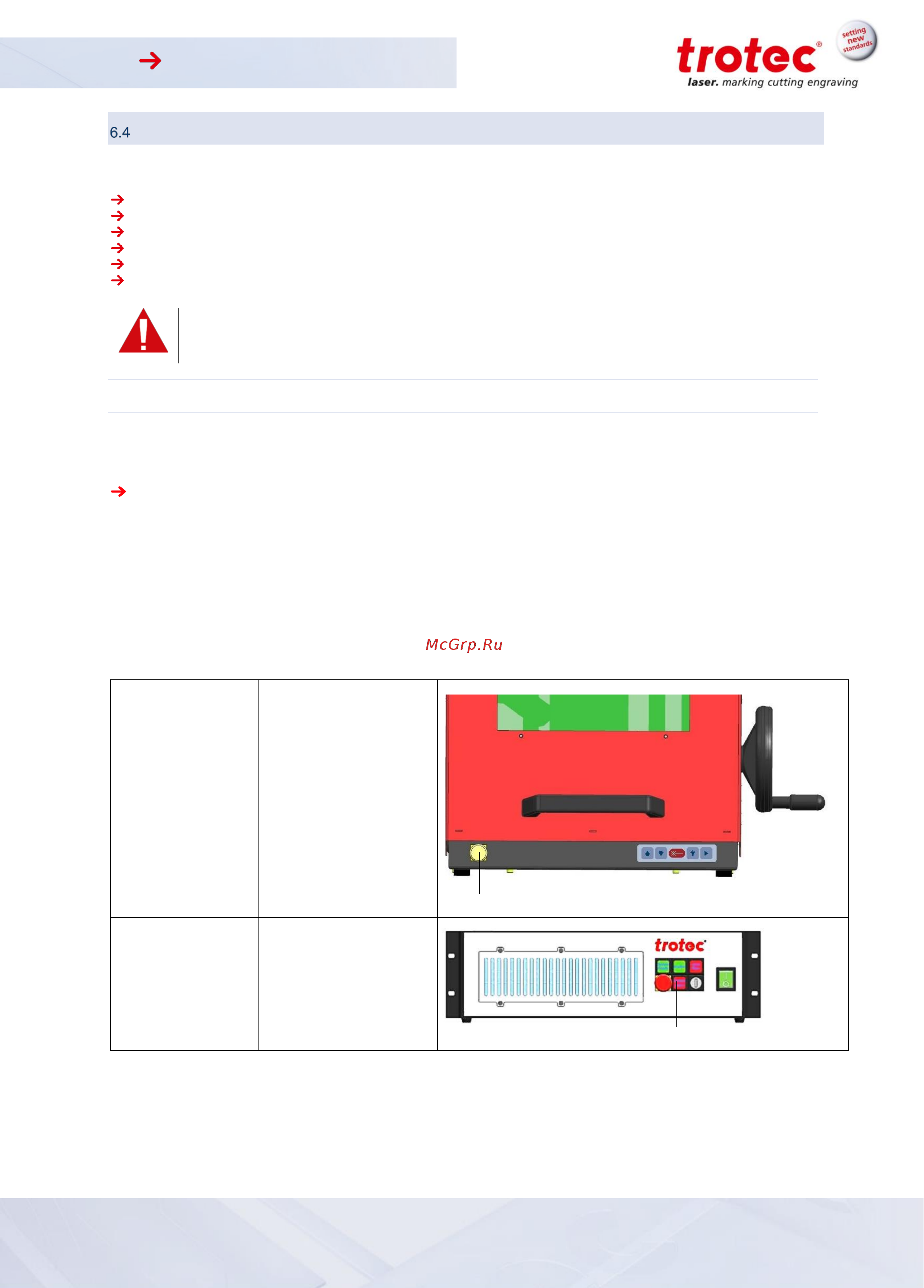

![Trotec SpeedMarker 300 [33/51] Safety devices](/views2/1404721/page33/bg21.png)
SpeedMarker 300
8037 | V 2.1_EN (01/2016)
33/ 51
Safety Devices
The SpeedMarker 300 is fitted with the following safety devices:
Main switch on laser rack
Emergency stop button
Key switch on laser rack
Observation window of laser protection glass
Laser protection shutter
Cover plates
Do not alter or deactivate the safety switches or protective covers on the laser head or the machine.
All safety and protection devices must be installed and fully functional every time the machine is put
into operation.
6.4.1 Emergency Stop Device
There is one emergency stop button located on the laser module. With the optional pass through option also a
second emergency stop button on the front of the SpeedMarker 300 housing
The function of the emergency stop device is
Firstly: to prevent any risks to the operating personnel.
Secondly: to avoid any damage to/destruction of the machine/material.
The emergency stop automatically shuts off the electric circuit. The laser beam is interrupted by the shutter. All
movements are stopped.
When the emergency stop function is triggered, an error message is displayed.
6.4.1.1 Emergency Stop acknowledgement - Steps
1. Unlock the
emergency
stop button
Press the "Emergency
Stop" button.
2. Acknowledge
the laser error
message
Press the "System alarm"
button on the laser rack
module
Emergency Stop (only with option pass through)
Durchreiche)
System Alarm
