6.4.2 Safety switches inside the safety door

The monitoring todetermine whether a safety guard is open or closed is performed by two protective switches. The

marking process cannot be started when the safety doors are open. However the pilot laser stays active.

6.4.3 Laser protection glass

The light green observation window in the front door is made of laser protection glass in accordance with

DIN EN 207. The glass consists of a special material depending on the type of laser used and which absorbs the

laser radiation. The glass should be replaced if it becomes damaged.

6.4.4 Laser protection shutter

If a safety circuit in the laser cell is open, the laser protection shutter shuts momentarily. For reasons of safety this

disconnection functions via safe components. The laser is interrupted mechanically. An error message is issued.

6.4.5 Cover plate

Cover plates protect from laser light.

ATTENTION

All protection plates must be mounted all times.

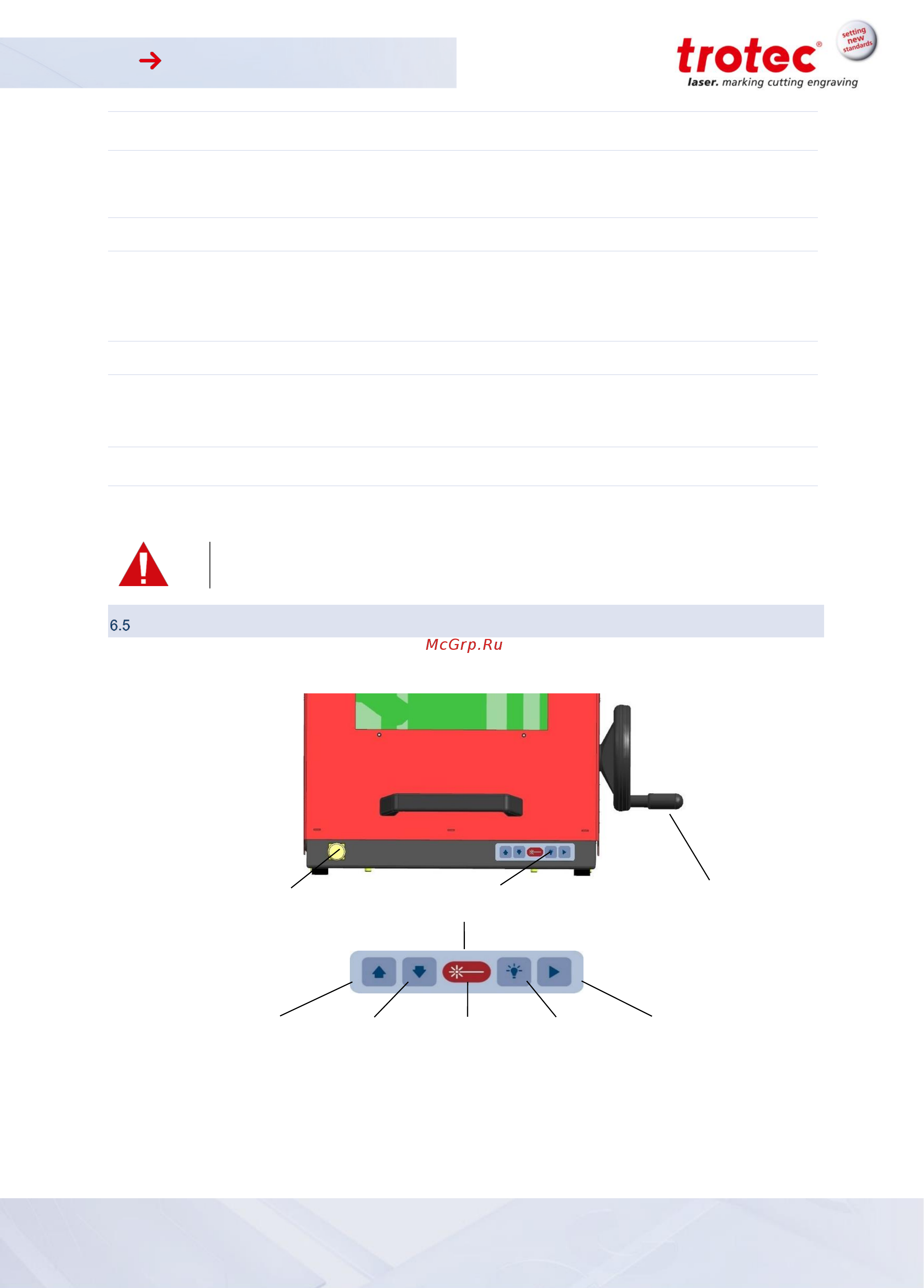

Operation elements

Operation elements on the front of the SpeedMarker 300:

Z-Axis up

Z–Axis down

Laser busy

Light switch

Start button

(must be activated in

the software)

Emergency Stop

(only with Pass through option)

Keypad

(only with motorized Z- Axis option)

Manual Z-Axis handle

(only with manual Z- Axis option)
