SpeedMarker 300
8037 | V 2.1_EN (01/2016)
39/ 51

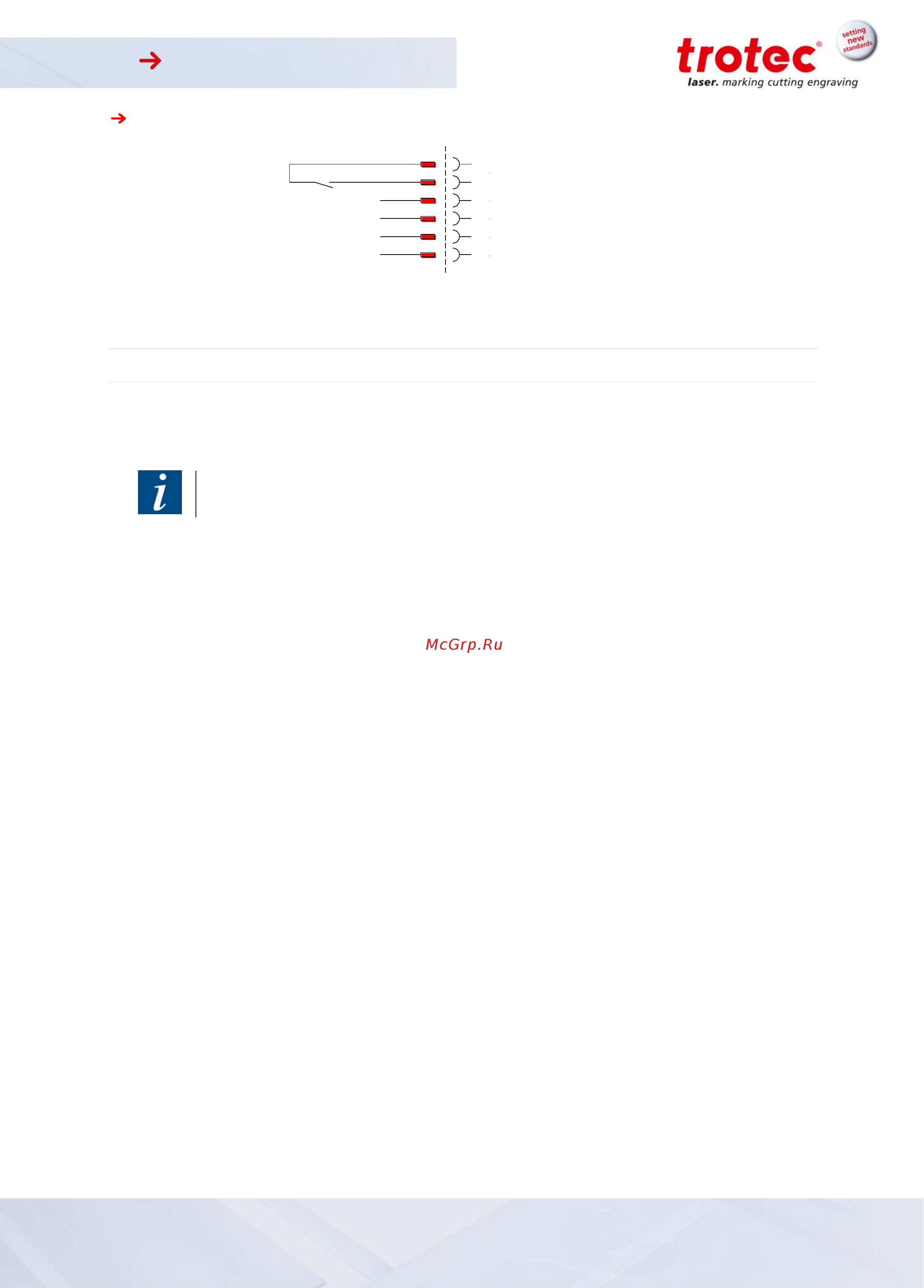

X71 – Start / Stop
1
2
3
4
5
Busy (max. 24V, 100mA)
1
2
3
4
5
externintern
Steckerbelegung Start/Stop (X71)
GND Start
6 6
GND Stop
Start
Stop
7.2.4 Power supply of the laser rack
1. Check if the supply voltage and frequency are correct.
2. Check if the power cable and power plug are intact and undamaged, replace them if necessary.
3. Plug in the power supply at the back of the laser rack and industrial-PC.
The configuration of the laser module is given on the warning- information label above the power
supply connector.
The laser rack is fitted with different main fuses depending on the configured supply voltage:
115V AC - 1 X 6.3 A “T” speed/time-delay
230V AC - 2 x 4 A “T” speed/time-delay
The main fuses are located behind the cover, immediately adjacent to the IEC connector. The same main
fuse is used for all supply voltages on the PC.
Internal external
