SpeedMarker 300
8037 | V 2.1_EN (01/2016)
37/ 51

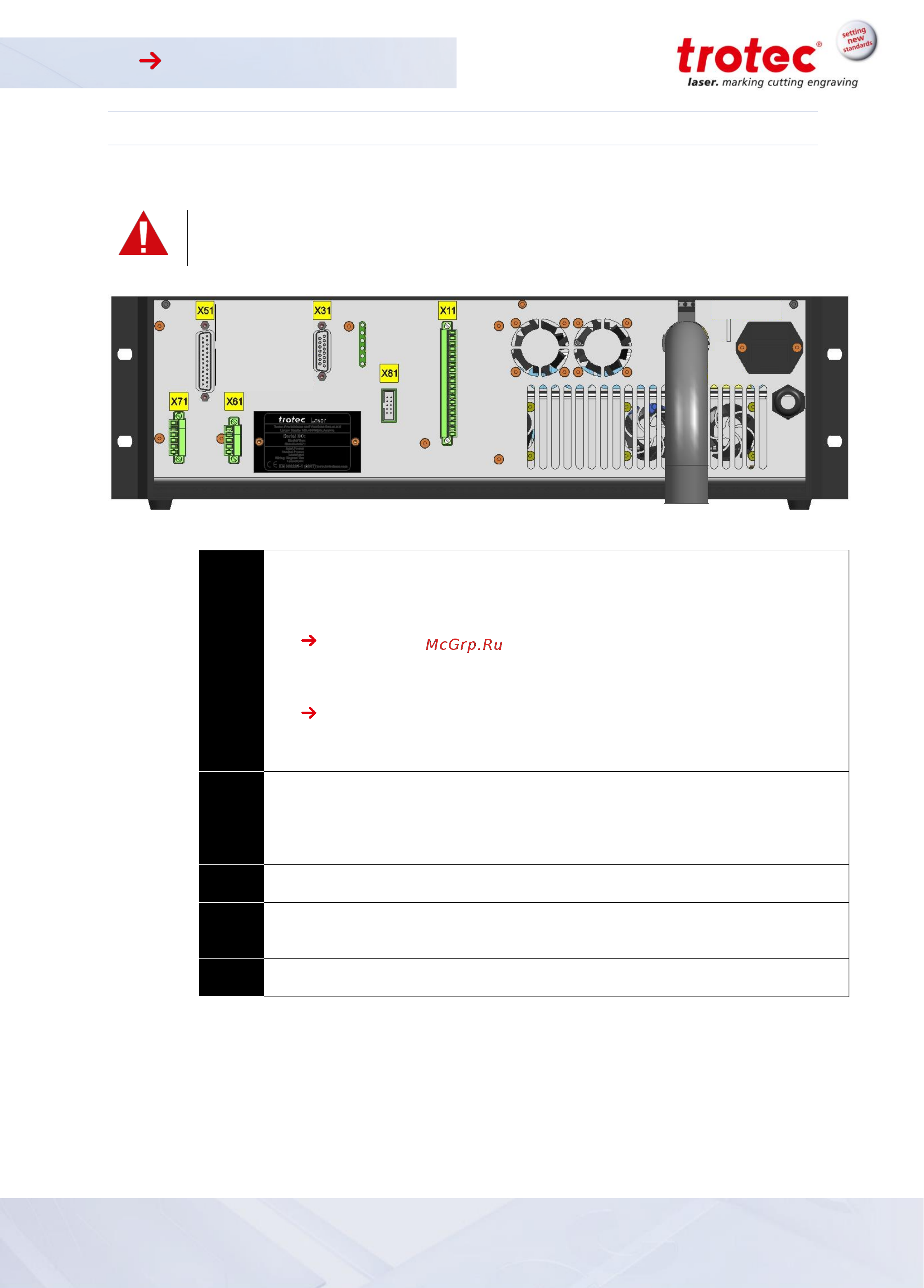

7.2.2 Overview - Laser Module Interface (Reverse Side)
1. Before the laser marker can be put into operation, the external safety circuits and the external start and stop
signals must be connected.
When making these connections, the operator must ensure that all safety circuits comply with the
respective valid national standards and guidelines for the use of laser devices. Otherwise the device
may cause personal injury or material damage.
2. Connect the following:
X11
Emergency Stop / Interlock / ext. Messages
Connector X11 enables the connection of external safety circuits, additional emergency stop
circuits and external warning lamps.
This connector comes already wired regarding the configuration of your SpeedMarker 300.
The maximum load of each of the digital 24V outputs on the interface X11 is
100 mA. A short circuit of the outputs must be avoided as it will damage the re-
spective inputs.
The digital 24V inputs (pin 14 and pin 15) should only be controlled by isolated
contacts with the 24V pin 13. The input of signals with any other reference potential
could result in damage to the respective inputs!
X31
External Panel
The connector X31 may be used to connect an external control panel such as that located
on the front of the laser module.
If no external panel is connected, the supplied connector must be used with the bridging
devices.
X51
I/O control.
This is connected to X53 on the industrial-PC.Only use the original cable supplied.
X61
Extraction System
This connector is used to control, start and stop a Trotec extraction unit.
Only use the original cable supplied.
X71
Start / Stop
The X71 connector is already wired regarding the configuration of your SpeedMarker 300.
