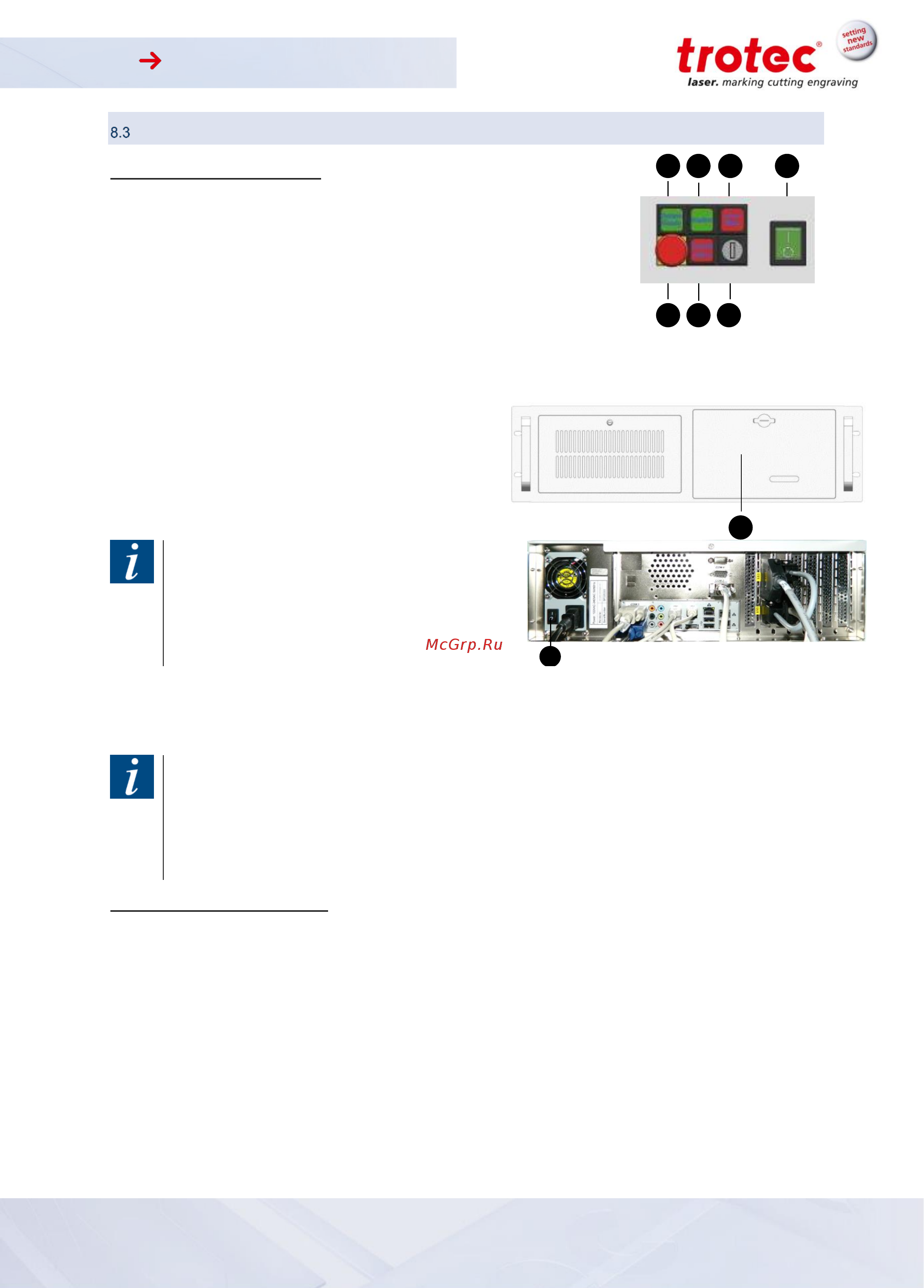

Power On/Off

Power ON the SpeedMarker 300

1. Press the master switch I/O (1) on the laser rack module.

The switch and the two status lamps on the marking head are now lit (shutter

closed).

2. Put the key in the key switch (7) (vertically) and turn 90° to the right.

3. By option pass-through:

If necessary unlock the emergency stop button. See chapter "Emer-

gency Stop Device".

4. Press the “System Alarm” button (6) to reset the system to its normal state.

5. As soon as the door is closed System Ready (2) , Shutter (3) and the two status lamps (red) on the marking

head should now lighten up. The laser is now ready to start marking.

6. Start the industrial PC. The mains switch is located on

the front behind the PC protective cover (8)

When operating the system for the first time it may be

necessary to check the master switch (9) on the re-

verse side of the industrial-PC.

In its normal state the master switch (9) can remain in

the “On” position.)

7. Now start the marking software on the PC.

8. The SpeedMarker 300 is ready for operation.

 If an error occurs, the “System Error” button (6) will illuminate. Press the button (6) to reset the error

and continue working.

 Opening the door, while a marking process is running, will interrupt the laser beam immediately. The

“System Error” button (6) will light up and must be reset before you can continue with your marking.

 We recommending using only the key switch (7) to pause the laser.

Power OFF the SpeedMarker 300

1. Close the software on the PC.

2. Shut down the PC.

3. Switch off the main switch "I/O" (1) situated on the laser rack.

4. The SpeedMarker 300 is now switched off.
