ULTIMA COMPACT FREECOOL Chillers
Chillers
10
Installation & Maintenance : 903-132 IM E 06/05/A
Installation Data

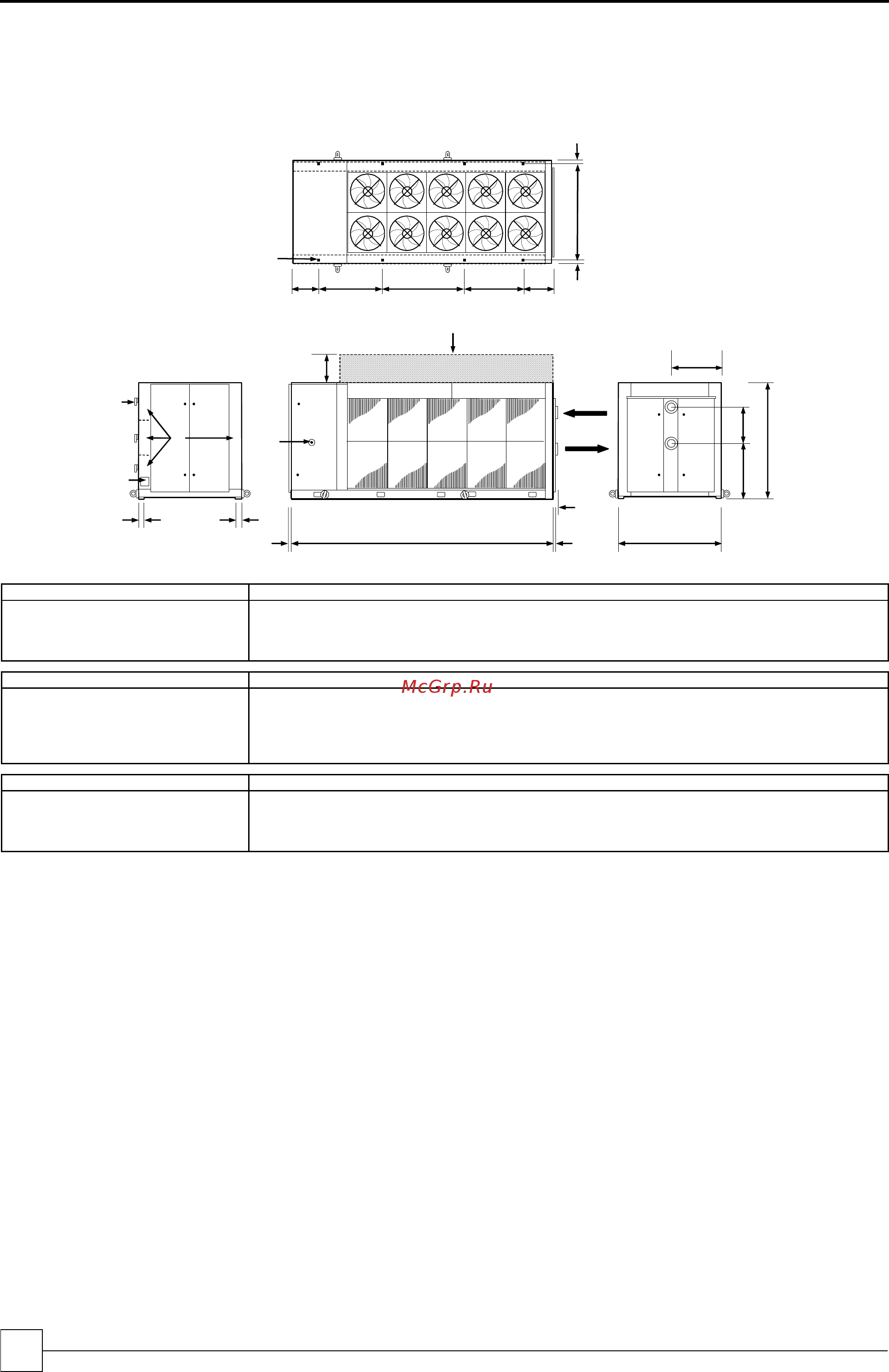

DIMENSIONS DOUBLE ROW FANS - /2
UCFC160 - UCFC450
A
2200
50 50
D
2
3
1
350 CB
2150 25 25
4
25 25
7
500
5
E
6
1100
20
2180
975 630
Model D A B C D E
UCFC160D - UCFC225D mm 3800 1750 1925 (1) 625
UCFC250D - UCFC300D mm 4650 1750 1925 (1) 625
UCFC330D - UCFC360D mm 5500 1350 1350 1925 525
UCFC400D - UCFC450D mm 6350 1700 1925 1925 450
Model DQ A B C D E
UCFC160DQ - UCFC200DQ mm 3800 1750 1925 (1) 625
UCFC225DQ - UCFC250DQ mm 4650 1750 1925 (1) 625
UCFC275DQ - UCFC300DQ mm 5500 1350 1350 1925 525
UCFC330DQ - UCFC360DQ mm 6350 1700 1925 1925 450
UCFC400DQ - UCFC450DQ mm 7200 1700 2700 2000 450
Model DSQ A B C D E
UCFC160DSQ - UCFC200DSQ mm 4650 1750 1925 (1) 625
UCFC225DSQ - UCFC250DSQ mm 5500 1350 1350 1925 525
UCFC275DSQ - UCFC300DSQ mm 6350 1700 1925 1925 450
UCFC330DSQ - UCFC450DSQ mm 8050 1700 2800 2725 525
(1) Have only 6 fixing and 6 point loadings.
1 Electric Control Panels
2 Mains Electric Isolators
3 Mains Cable Entry
4 20mm Ø Mounting Holes
5 Optional Plenum Extension
6 Water Flange Connections:
UCFC160-250 DN80 PN16
UCFC275-450 DN100
PN16
7 Emergency Stop
