Chillers ULTIMA COMPACT FREECOOL
Chillers
Installation & Maintenance : 903-132 TM E 06/05/A
13
Installation Data

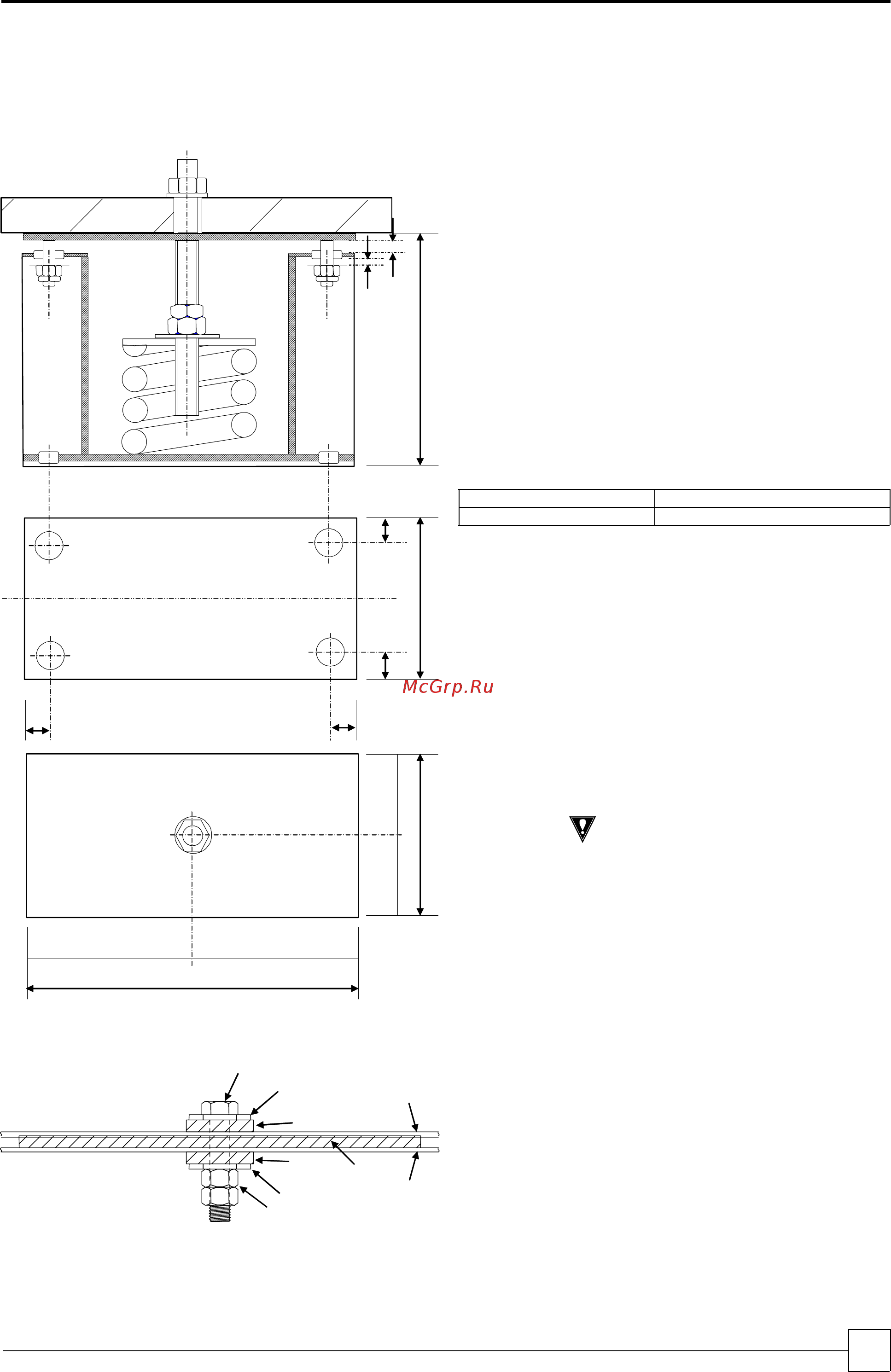

ANTI VIBRATION MOUNTING - OPTIONAL
Spring Type (CLS)
1 High deflection steel spring
2 Spring pressure plate
3 Height adjusting nut
4 Locking nut
5 Load bearing supports
6 Load bearing top plate
7 High frequency isolation pad
8 10 dia holding down bolt holes
9 High frequency isolation grommets
10 Steel spring location rings
11 Transportation/restraining bolts
12 Machine frame
13 Machine holding M16 stud/nuts
14 ELEVATION
15 BASE PLATE
16 TOP PLATE
Selection:
Model Size A B C D X
75 - 450 mm 100 200 20 14 180 - 210
Installation:
1 Locate and secure mount using bolting down holes
provided in base plate.
2 Ensure mounts are located in line with the
chiller base.
3 Position the machine using the centrally located
stud, which allows the machine to be bolted
down securely.
4 Loosen transit bolts and turn nut 3 clockwise until
top plate 6 lifts clear of support posts. Tighten lock
nut 4 when machine is at desired height and level.
5 Adjust and lock nuts on transit bolts such that a
small (3-5mm) gap is left between washer and
grommet. Refer to diagram.
CAUTION
Mountings must be adjusted in increments of no
more than 1mm in turn. Do not adjust 1 mount
completely at a time as this may overload and
damage springs.
Do not connect any services until all anti vibration
mounts have been fully adjusted.
C C
C C
A
D Ø
15
1
6
A
B
14
1
2
3
4
5
6
7
8
9
10
11
12
13
13
5
X
= =
==
3 - 5mm
3 - 5mm
FINALLY, recheck/adjust mounts following unit
connection to services and system is filled.
Pad Type
1
2
3
2
5
4
3
6
7
1 M16 Bolt (Not Supplied)
2 Washer (Not Supplied)
3 Fixing Pad 506-063
4 A V Pad 506-062
5 2 x M16 Nut (Not Supplied)
6 Unit Base
7 Unit Mounting Plinth
