Chillers ULTIMA COMPACT FREECOOL
Chillers
Installation & Maintenance : 903-132 TM E 06/05/A
9

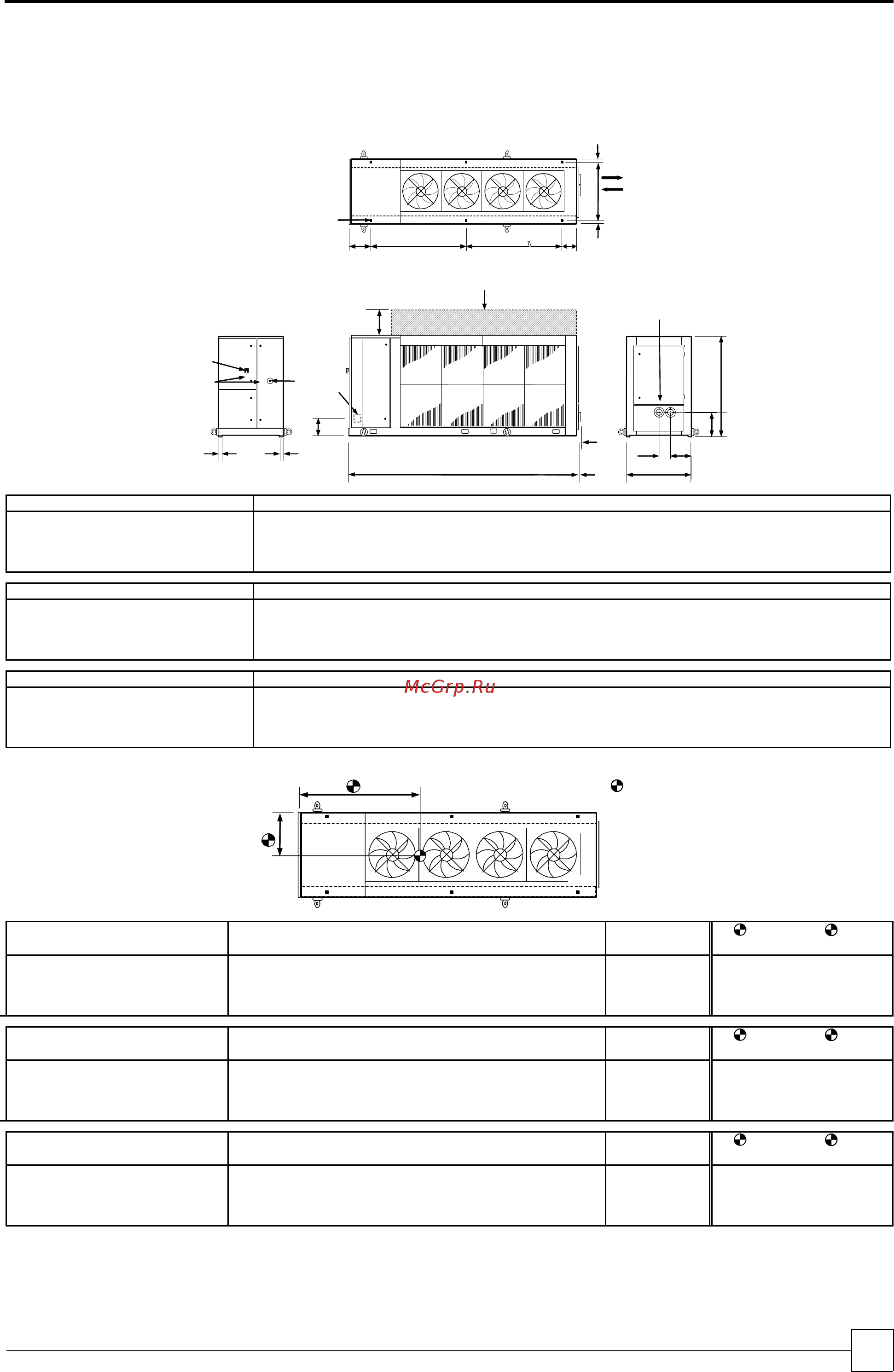

Installation Data
DIMENSIONS SINGLE ROW FANS - /1
UCFC75 - UCFC150
A
2000
1300
50 50
E
2
3
B
D
C
1250 25 25
4
25
300
1
7
500
5
6
500
425 225
20
6
Model D ABC DE
UCFC75D-2/1 mm 2775 390 1900 (1) 485
UCFC100D-2/1 mm 2775 390 1900 (1) 485
UCFC125D-3/1 mm 3625 390 1825 1135 275
UCFC150D-3/1 mm 3625 390 1825 1135 275
Model DQ ABC DE
UCFC75DQ-2/1 mm 2775 390 1900 (1) 485
UCFC100DQ-3/1 mm 3625 390 1825 1135 275
UCFC125DQ-3/1 mm 3625 390 1825 1135 275
UCFC150DQ-4/1 mm 4475 390 1900 1900 285
Model DSQ ABC DE
UCFC75DSQ-2/1 mm 2775 390 1900 (1) 485
UCFC100DSQ-3/1 mm 3625 390 1825 1135 275
UCFC125DSQ-4/1 mm 4475 390 1900 1900 285
UCFC150DSQ-4/1 mm 4475 390 1900 1900 285
POINT LOADINGS, WEIGHTS & CENTRE OF GRAVITY (C OF G)
P1 P3 P5
P2 P4 P6
2
1
= C of G
Model D P1 P2 P3 P4 P5 P6
Operating
Weight
C of G1
(mm)
C of G2
(mm)
UCFC75D-2/1 kg 365 365 (1) (1) 295 295 1320 640 265
UCFC100D-2/1 kg 380 380 (1) (1) 305 305 1370 640 265
UCFC125D-3/1 kg 405 385 255 245 240 240 1770 640 1450
UCFC150D-3/1 kg 410 410 255 255 250 250 1830 640 1435
Model DQ P1 P2 P3 P4 P5 P6
Operating
Weight
C of G1
(mm)
C of G2
(mm)
UCFC75DQ-2/1 kg 365 365 (1) (1) 295 295 1320 640 265
UCFC100DQ-3/1 kg 385 385 240 240 230 230 1710 640 1440
UCFC125DQ-3/1 kg 410 390 255 245 235 235 1770 640 1450
UCFC150DQ-4/1 kg 415 415 360 360 340 340 2230 640 1670
Model DSQ P1 P2 P3 P4 P5 P6
Operating
Weight
C of G1
(mm)
C of G2
(mm)
UCFC75DSQ-2/1 kg 375 375 (1) (1) 295 295 1340 640 265
UCFC100DSQ-3/1 kg 390 390 240 240 235 235 1730 640 1440
UCFC125DSQ-4/1 kg 430 410 350 340 335 335 2200 640 1690
UCFC150DSQ-4/1 kg 430 430 355 355 340 340 2250 640 1670
(1) Have only 4 fixing and 4 point loadings.
(2) Based on standard unit, for units fitted with pump options, please contact Airedale.
1 Electric Control Panels
2 Mains Electric Isolators
3 Mains Cable Entry
4 20mm Ø Mounting Holes
5 Optional Plenum Extension
6 Water Flange Connections:
DN65 PN16
7 Emergency Stop
