Airedale UCFC 125 [13/46] Change
![Airedale UCFC 125 [13/46] Change](/views2/1409444/page13/bgd.png)
Date: 18/10/05
Airedale International Air Conditioning Ltd
Leeds Road, Rawdon, Leeds. LS19 6JY England
Tel: + 44 (0) 113 239 1000 Fax: + 44 (0) 113 250 7219
E-mail: info@airedale.com Website: www.airedale.com
TECHNICAL UPDATE
MANUAL AFFECTED: TECHNICAL & INSTALLATION
ULTIMA: UCC/UCCU 30-450
UCFC/URAC/UWC75-450
UFC/USC200-750
MANUAL PART NO: 901-108 TM E 02/05/A
CHANGE:

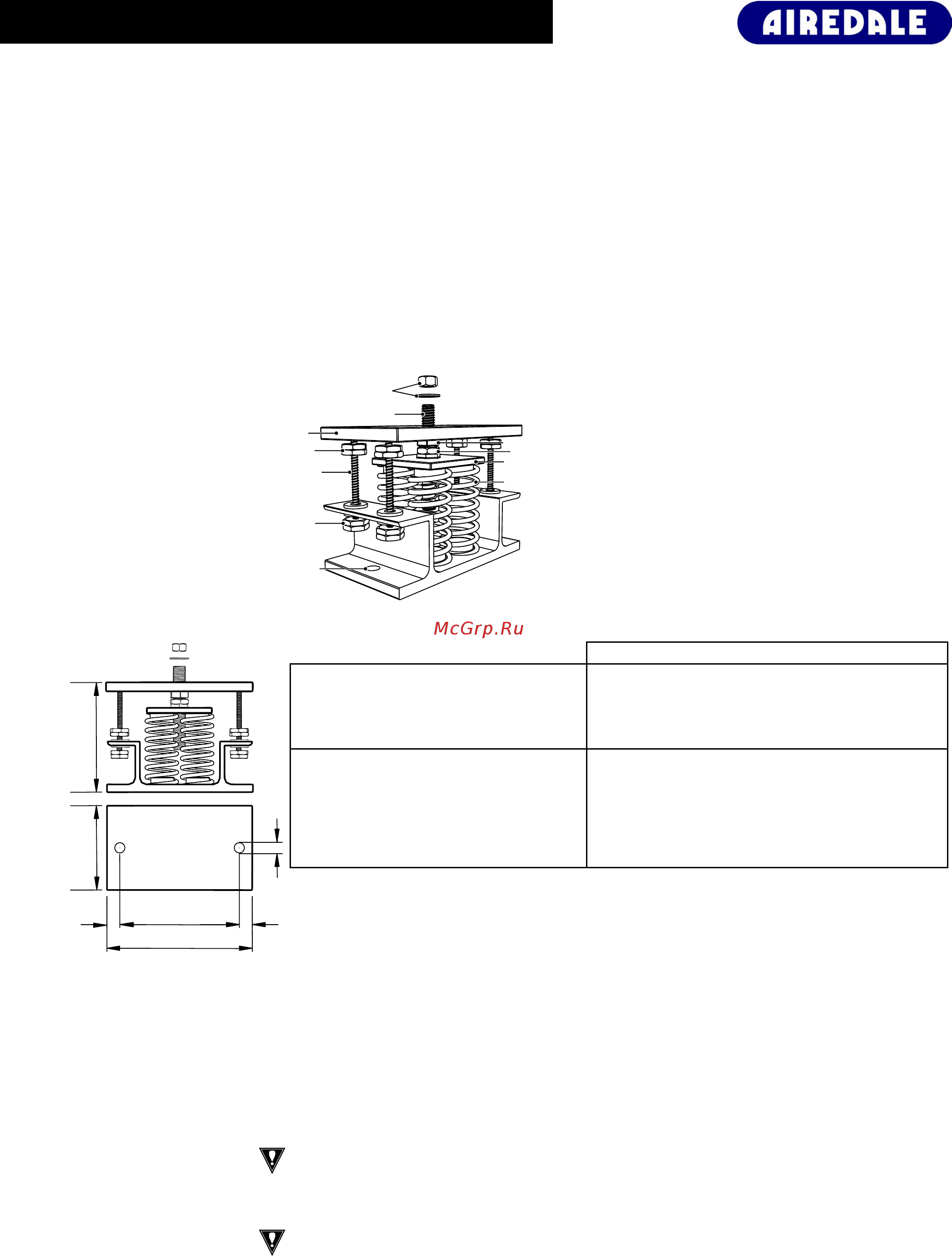

ANTI-VIBRATION MOUNT (SPRING TYPE) SPECIFICATION &
INSTALLATION INSTRUCTIONS:
COMPONENTS:
1 Locating Screw
2 Retaining Nut & Washer
3 Levelling Screw
4 Levelling Lock Nut
5 Retaining Studs
6a Upper Retaining Nuts
6b Lower Retaining Nuts
7 Spring assembly
8 Pressure Plate
9 Top Plate
10 Bolting-down holes
2
1
6a
5
6b
10
9
8
7
3
4
DIMENSIONS:
A
(1)
BC D EFØ
UCC30-70
UCC75, 80, 100, 125 & 150
UCCU30-70
UCCU75, 80, 100, 125 & 150
UCFC75-150
2 SPRING
136 110 180 148 16 11
UCC110, 130, 160-450
UCCU110, 130, 160-450
UCFC160-450
UFC200-750
URAC75-450
USC200-750
UWC75-450
4 SPRING
180 130 225 186 20 16
B
A
C
D
E
F
E
(1) Unloaded dimension
(2) Refer to relevant Loose Parts Instructions sheet for positioning of each mount.
INSTALLATION
1 Locate and secure mount using bolting down holes (10) in base plate.
2 Ensure mounts are located in line with the unit base.
3 If applicable, remove compressor enclosure covers to allow access to mount fixing holes in
the unit base.
4 Lock the upper retaining nuts (6a) to the underside of the top plate (9) before a load is
applied.
5 Remove retaining nut and washer (2), lower the unit onto the mounts and replace retaining
nut and washer.
6 Beginning with the mount with the largest deflection, adjust the height of each mount using
the levelling screw (3).
CAUTION
Mountings must be adjusted incrementally in turn. Do not fully adjust 1 mount at a time as
this may overload and damage springs.
7 When all mounts are level, lock each into place using the levelling lock nut (4).
8 Lock all retaining nuts (6a and 6b) to the extreme ends of the retaining studs (5).
CAUTION
Do not connect any services until all anti vibration mounts have been fully adjusted.
