ULTIMA COMPACT FREECOOL Chillers

Chillers

Installation & Maintenance : 903-132 IM E 06/05/A

Installation Data

The installation position should be selected with the following points in mind:

• Position on a stable and even base, levelled to ensure that the compressor

operates correctly

• Levelling should be to +/- 5mm

• Where vibration transmission to the building structure is possible, fit spring anti-

vibration mounts and flexible water connections

• Observe airflow and maintenance clearances

• Pipework and electrical connections are readily accessible

• Where multiple units are installed, due care should be taken to avoid the discharge

air from each unit adversely affecting other units in the vicinity

• Within a side enclosed installation, the fan MUST be higher than the

enclosing structure

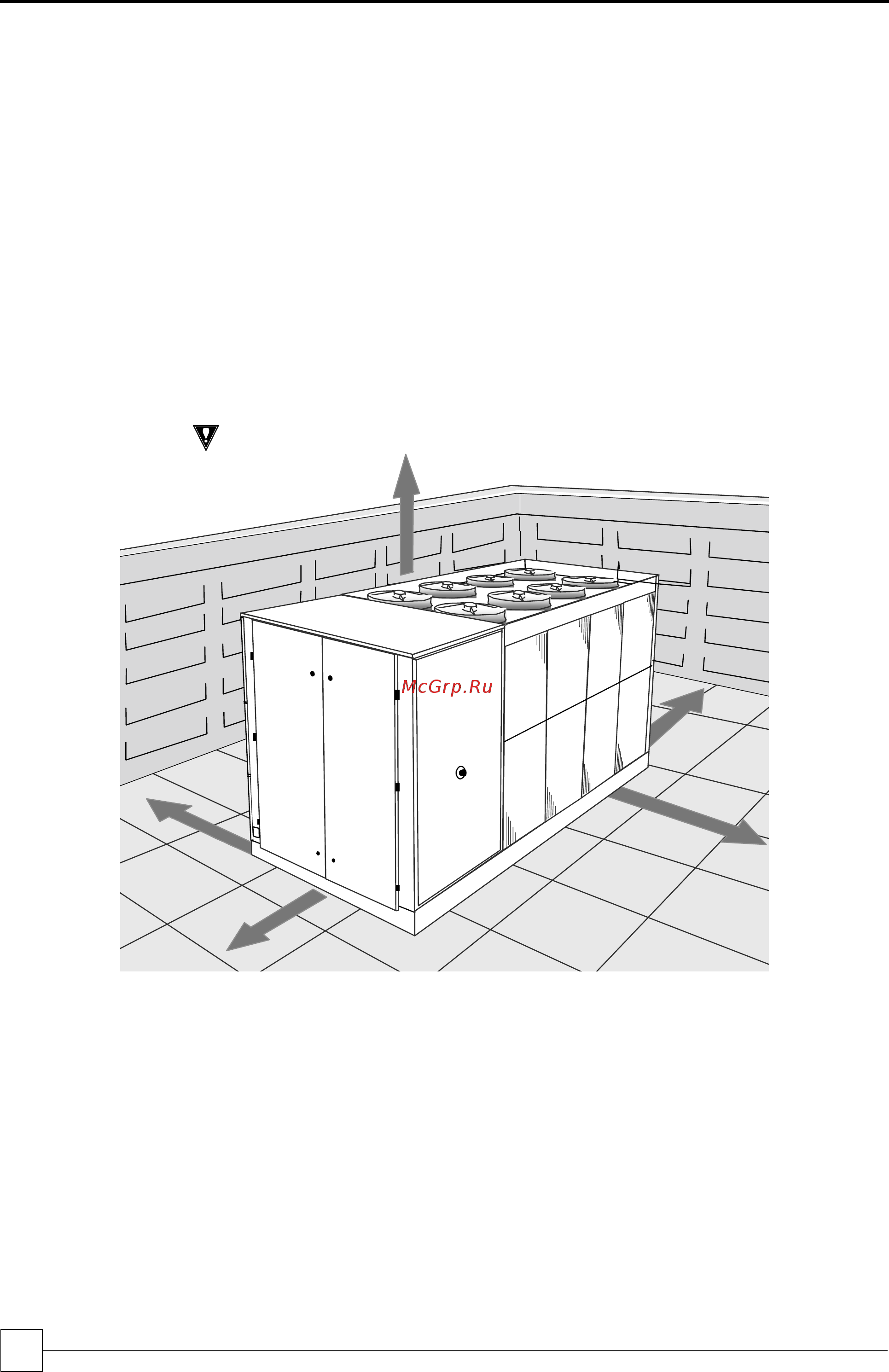

• Figures in brackets indicate airflow and maintenance clearances for side-enclosed or

multiple chiller applications

• Ensure there are no obstructions directly above the fans

POSITIONING

• Allow free space above the fans to prevent air recirculation

CAUTION

Ensure the unit is completely level and secured prior to connecting services.

1.0m (2.0)

1.0m (1.8)

1.0m (2.0)
