Chillers ULTIMA COMPACT FREECOOL
Chillers
Installation & Maintenance : 903-132 TM E 06/05/A
31
Commissioning Data

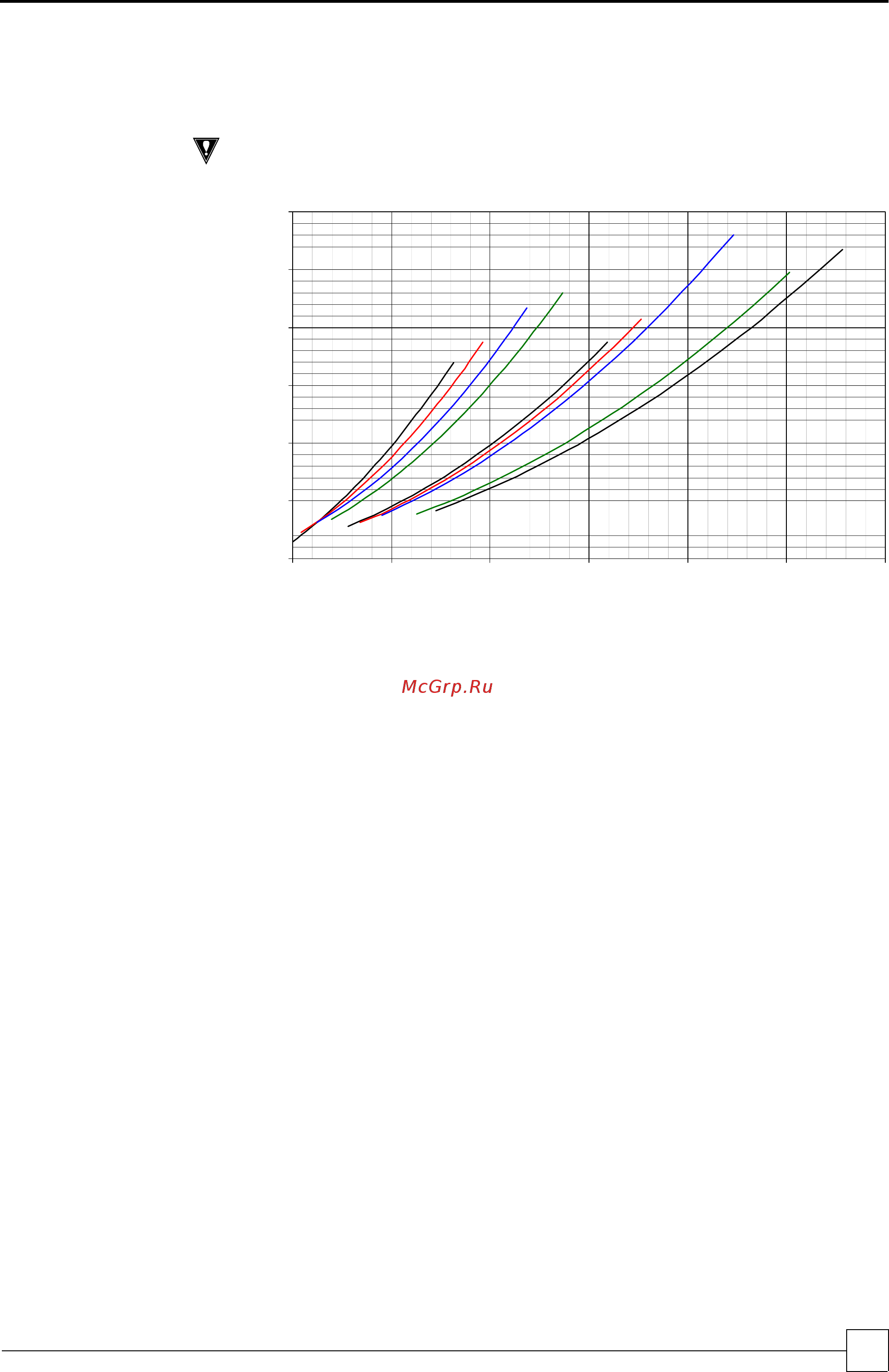

WATERSIDE PRESSURE DROPS
(20% Ethylene Glycol Concentration)
CAUTION
Constant water flow MUST be maintained. Variable water volume is NOT
recommended and may invalidate warranty.
UCFC160DSQ -
UCFC450DSQ
WATERSIDE PRESSURE DROP
(
kPa
)
0
50
100
150
200
250
300
5 101520253035
160DSQ-180DSQ
400DSQ
330DSQ-360DSQ
300DSQ
275DSQ
250DSQ
225DSQ
200DSQ
450DSQ
WATERFLOW (l/s)
