D-Link DES-3326SR Layer 3 Switch
Port Utilization Statistics
Port Utilization can be viewed for individual ports using the Line Chart or you can opt to see all ports
displayed in Port Utilization Table. These windows display the percentage of the total available bandwidth being
used on the port.
To view port utilization statistics, open the Network Monitoring folder and the Statistics subdirectory. Click on
either Port Utilization (Line Chart or Table) link:

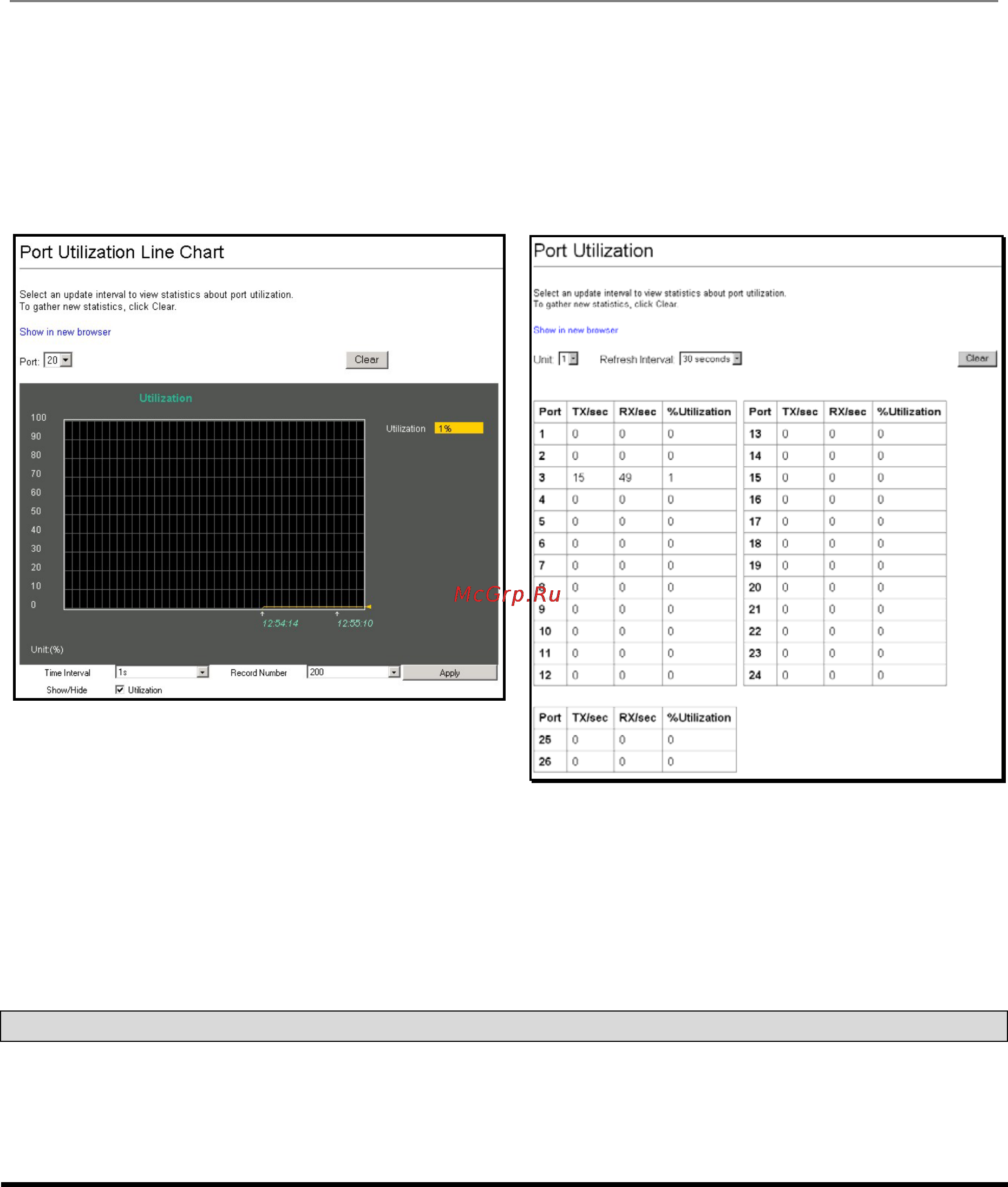

Figure 16- 1. Port Utilization Line Chart
Figure 16- 2. Port Utilization Table
Select the desired port by clicking on the front panel display in the upper part of the web page or use the Unit:
and Port: drop-down menus. The Interval field sets the interval at which the error statistics are updated.
The following field can be set:
Parameter Description
Unit
Allows you to specify a Switch in a Switch stack using that Switch’s Unit ID.
Port (Line Chart only)
Allows you to specify a port to monitor − from the Switch selected above.
Time Interval
The time between updates received from the Switch, in seconds. Suspend
stops the updates. The default is 1s.
108
