D-Link DES-3326SR Layer 3 Switch
ARP Table
To view ARP Table, open the Network Monitoring folder and the Address Tables subdirectory and click on
the ARP Table link:

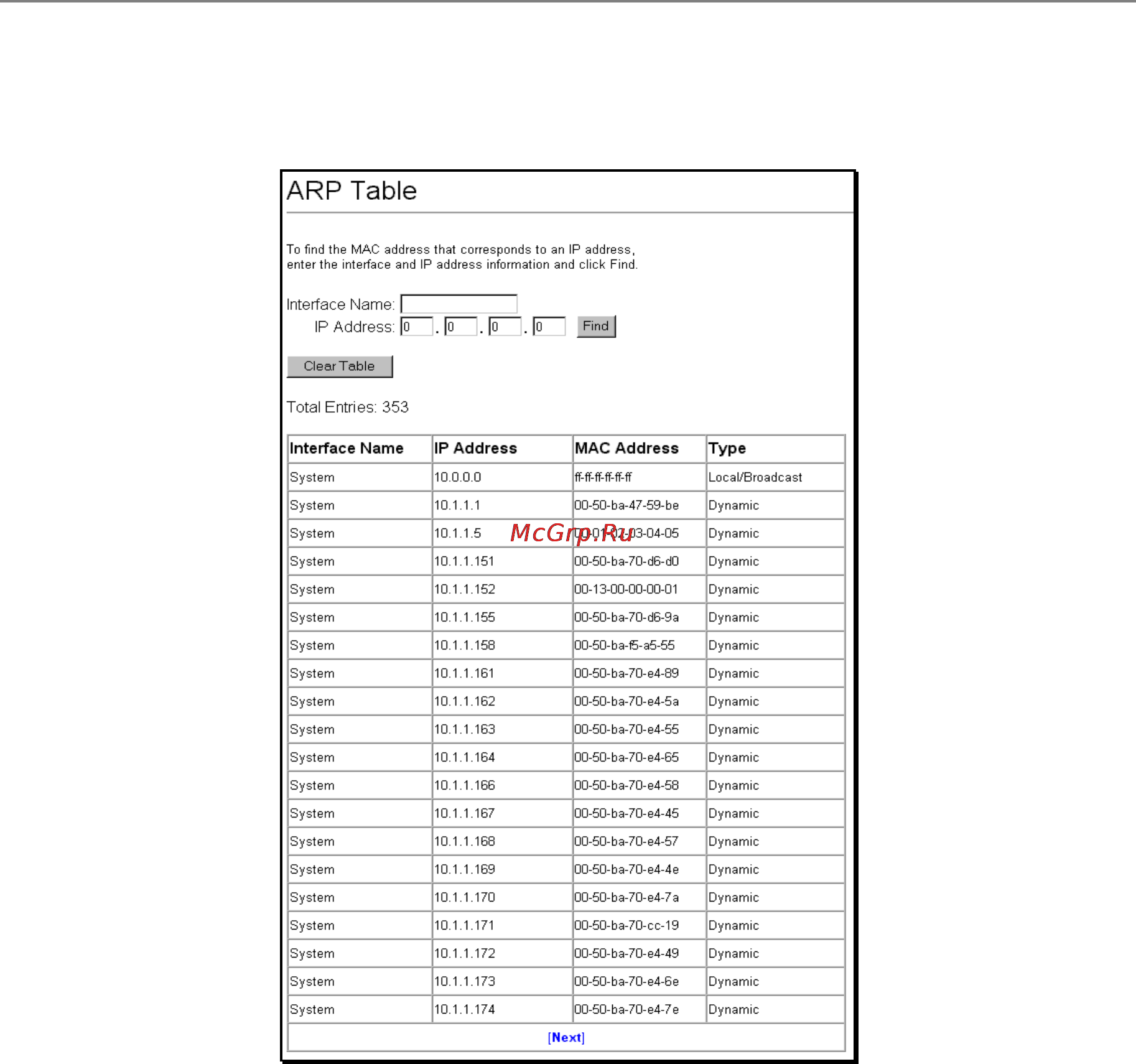

Figure 16- 7. ARP Table
Use the ARP Table to search for MAC addresses. Enter the Interface Name and IP Address and click on the
Find button.
114
